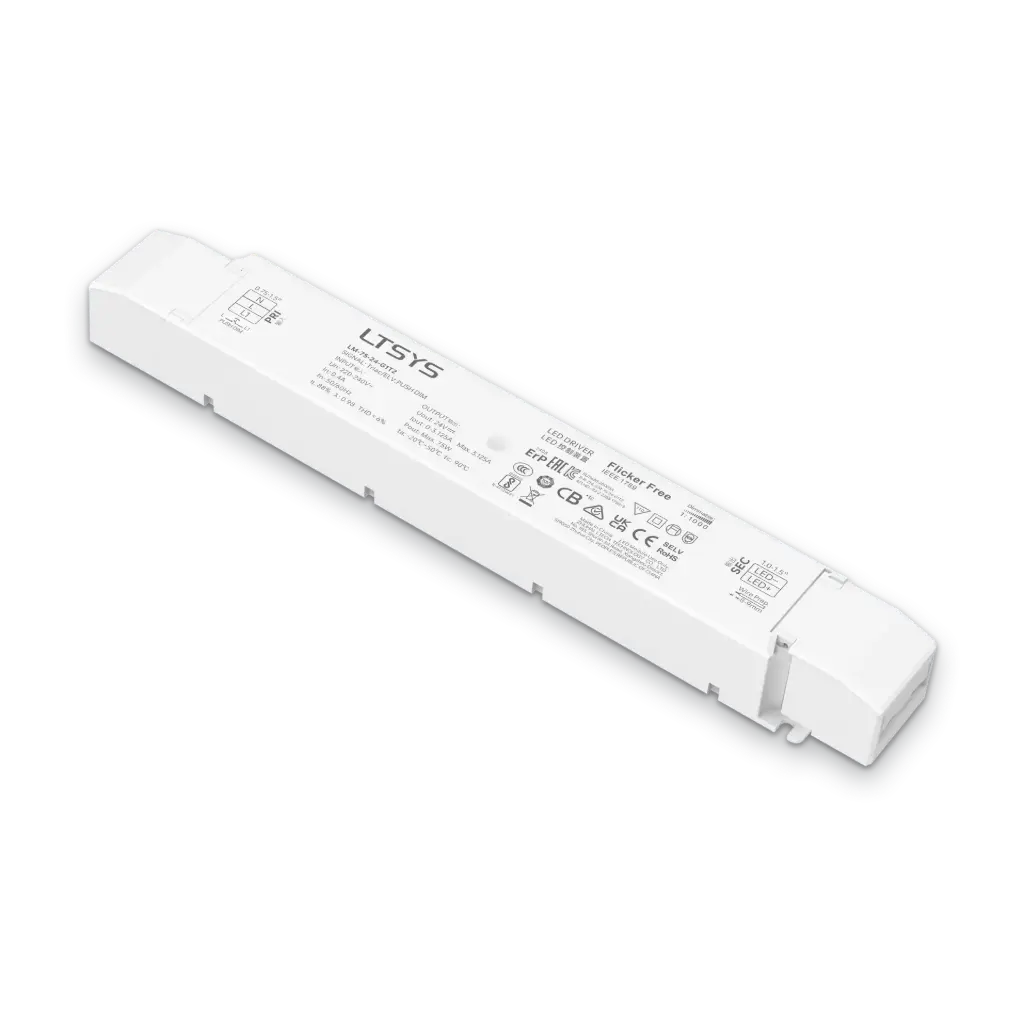

LTECH LTSYS Driver CV TRIAC 1CH 24V 75W LM-75-24-G1T2

The LTECH LM-75-24-G1T2 is a 24 Vdc constant voltage LED driver with 75 W output. It dims with standard leading edge (TRIAC) and trailing edge (ELV) phase-cut dimmers, or with a simple push button. Made for LED strip and other resistor current-limited LED fixtures.

Smooth, flicker-free dimming

Dimming runs from 0.1% to 100%, with soft-on and fade-in for comfortable light changes. At a PWM frequency of 3600 Hz, the output is flicker-free and meets the high frequency exemption level of IEEE 1789. With Push DIM, a short press switches the light on or off and a long press dims, reversing direction with every other long press. The driver remembers the last brightness level. When both are connected, TRIAC control takes priority over Push DIM.

Efficient and protected

With 88% efficiency, a power factor above 0.98 and THD below 6% at full load, the driver runs efficiently at 220-240 Vac. It protects itself against overload, over temperature, short circuit and over voltage. Rated for up to 50,000 hours of lifetime.

€ 45.22 excl. VAT € 45.22

Quantity Unit Price
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
  • Maximum Current
  • Maximum Output Current
29 in stock
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Control: TRIAC
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Output Voltage: 24 V
Output Power: 75 W
Certificates: CCC , BIS , TUV , CE , KC , RCM , CB , EAC , UKCA , RoHS , ERP
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Maximum Current: 3.125 A
Maximum Output Current: 3.125 A
User manual
LM-75-24-G1T2 User Manual Click to view Download
Specifications
Internal Reference 2842300
Barcode 6971379111595
HS Code 85044095
General
Control TRIAC
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Output Voltage 24 V
Output Power 75 W
Dimming Range 0-100% down to 0.1%
Maximum Current 3.125 A
Maximum Output Current 3.125 A
Operating
Certificates CCC · BIS · TUV · CE · KC · RCM · CB · EAC · UKCA · RoHS · ERP
Warranty 5 Years

Internal Reference: 2842300
Barcode: 6971379111595
HS Code: 85044095
