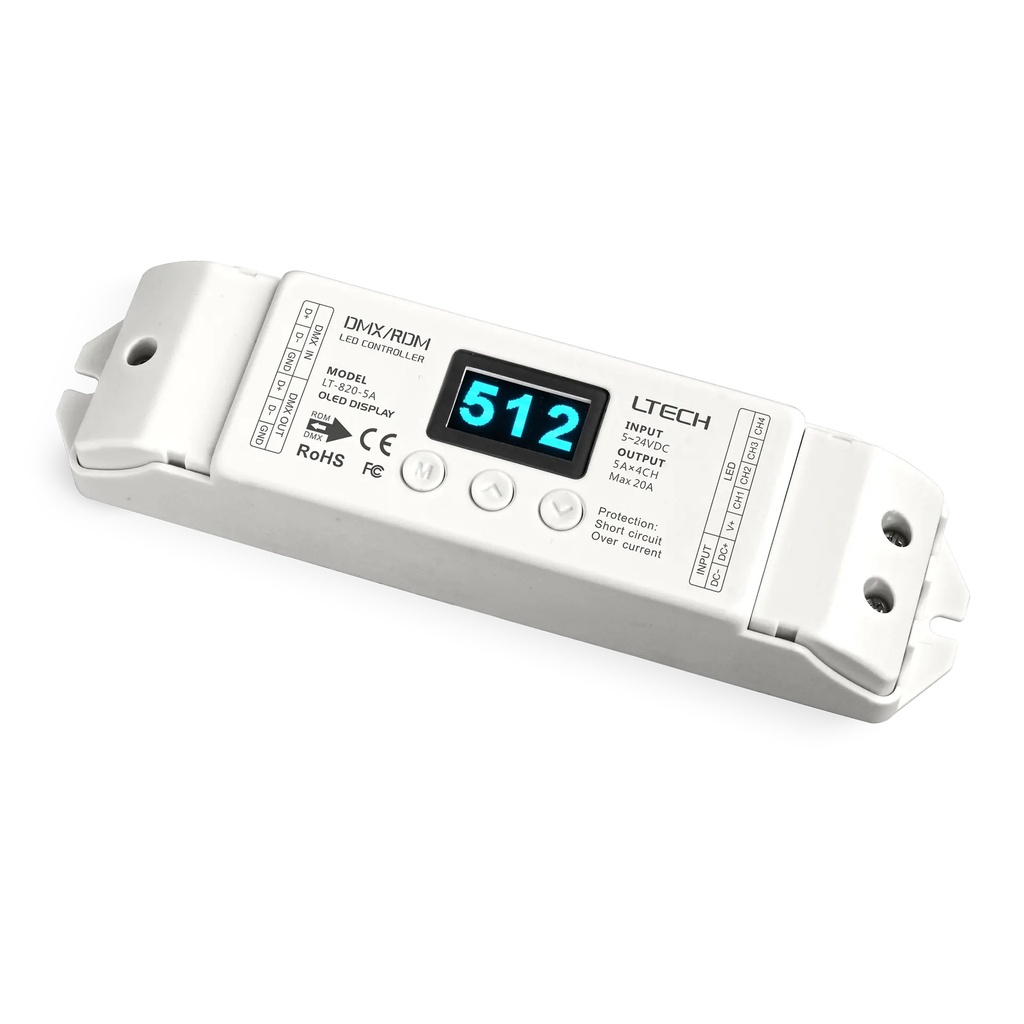

LTECH DMX LED driver CV 4x5A OLED Display

Name: LTECH DMX LED driver CV 4x5A OLED Display - LT-820-5A
Brand: LTECH
SKU: 2271600
Price: 81.69 EUR
Availability: InStock

LT-820-5A

El primer decodificador DMX del mundo con pantalla OLED, que admite comunicación bidireccional DMX512 mediante el protocolo estándar RDM para la lectura y escritura remota de direcciones DMX. Cuenta con pantalla OLED en tiempo real, entrada de 16 u 8 bits, tres curvas de regulación y protección integrada contra cortocircuito, sobrecorriente, sobrecalentamiento, rayos y electricidad estática ESD.

€ 81,69

Añadir al carrito

Control: DMX

Channels: 4

Input Voltage: DC (5-24 V)

Input Voltage Domain: DC

Working Temperature: -30°C to 55°C

Output Voltage: 5-24 V

Output Power: 480

Current load/ ch: 5A

Curent load max: 20A

Dimming Range: 0-100%

Dimensions (LxWxH) (mm): L175×W44×H30(mm)

Documents

LT-820-5A User Manual

Specifications

Control DMX

Channels 4

Input Voltage DC (5-24 V)

Input Voltage Domain DC

Working Temperature -30°C to 55°C

Output Voltage 5-24 V

Output Power 480

Current load/ ch 5A

Curent load max 20A

Dimming Range 0-100%

Dimensions (LxWxH) (mm) L175×W44×H30(mm)

Internal Reference 2271600

Barcode 6971379110895

HS Code 85044095

Downloads

LT-820-5A User Manual Click to view Download
