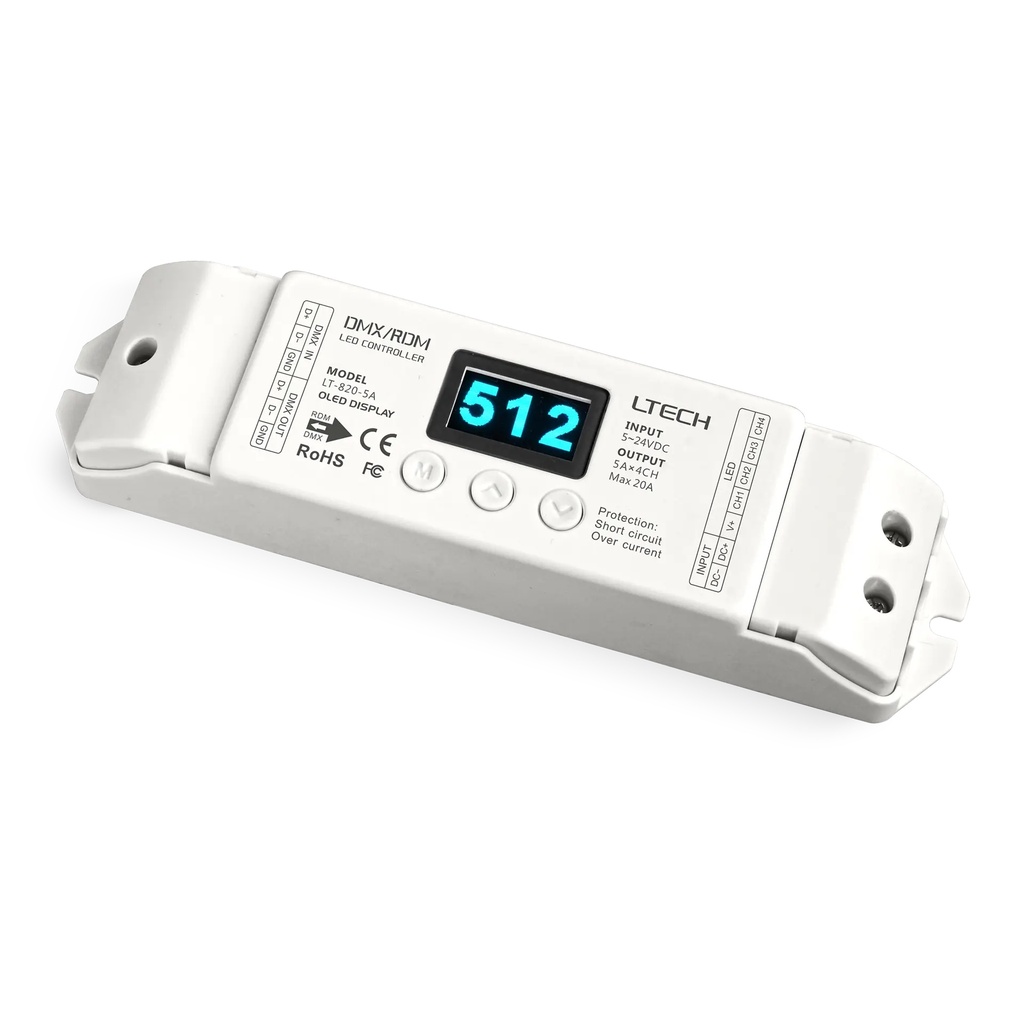

LTECH DMX LED driver CV 4x5A OLED Display

LT-820-5A

Le premier décodeur DMX au monde à écran OLED, prenant en charge la communication DMX512 bidirectionnelle via le protocole standard RDM pour la lecture et l'écriture à distance des adresses DMX. Il dispose d'un affichage en temps réel OLED, d'une entrée 16 ou 8 bits, de trois courbes de gradation, et d'une protection intégrée contre les courts-circuits, les surintensités, la surchauffe, la foudre et les décharges électrostatiques (ESD).

€ 81,69 € 81,69

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Dimming Range
  • Dimensions (LxWxH) (mm)
Control: DMX
Channels: 4
Input Voltage: DC (5-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 55°C
Output Voltage: 5-24 V
Output Power: 480
Current load/ ch: 5A
Curent load max: 20A
Dimming Range: 0-100%
Dimensions (LxWxH) (mm): L175×W44×H30(mm)
Specifications
Control DMX
Channels 4
Input Voltage DC (5-24 V)
Input Voltage Domain DC
Working Temperature -30°C to 55°C
Output Voltage 5-24 V
Output Power 480
Current load/ ch 5A
Curent load max 20A
Dimming Range 0-100%
Dimensions (LxWxH) (mm) L175×W44×H30(mm)
Internal Reference 2271600
Barcode 6971379110895
HS Code 85044095
Downloads
LT-820-5A User Manual Click to view Download

Référence interne: 2271600
Code-barres: 6971379110895
Code SH: 85044095
