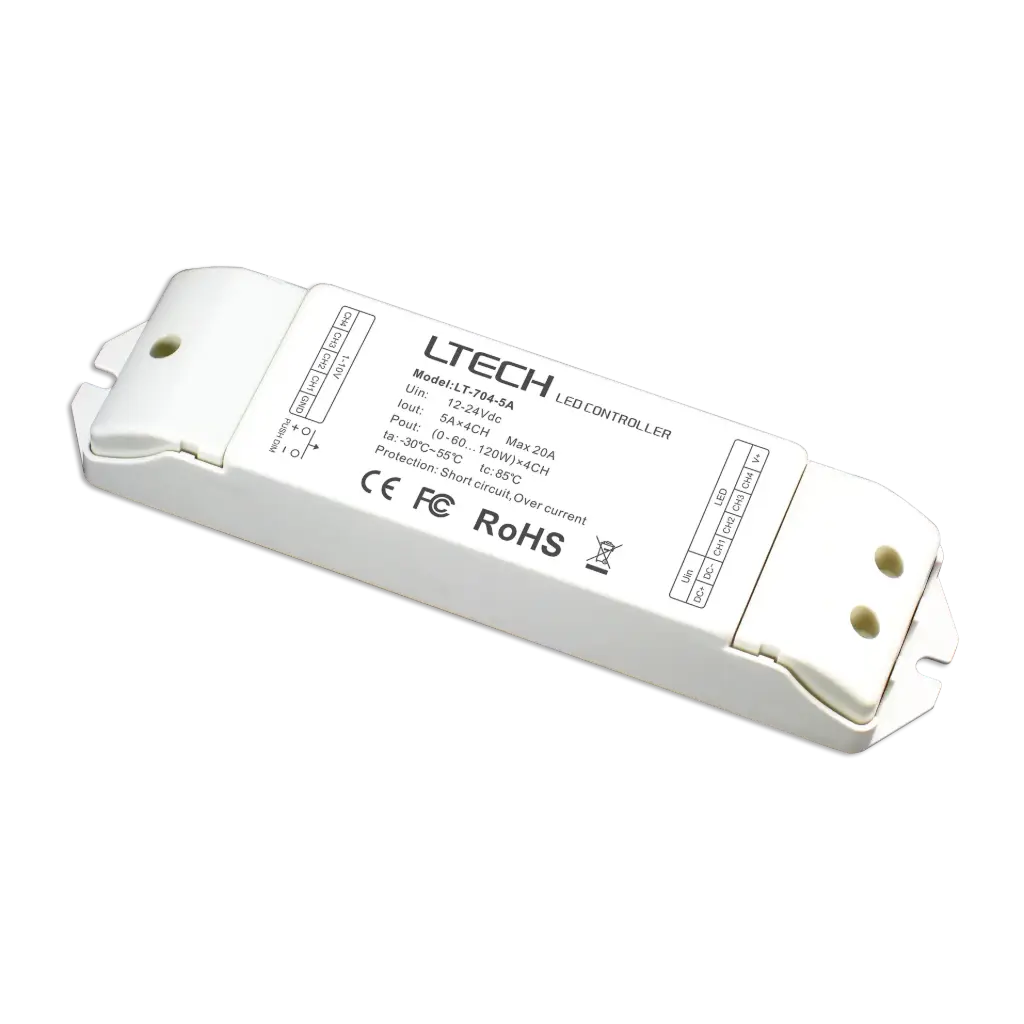

LTECH 0-10V/Push LED driver CV 4x5A

Name: LTECH 0-10V/Push LED driver CV 4x5A - LT-704-5A
Brand: LTECH
SKU: 2262900
Price: 56.21 EUR
Availability: InStock

LT-704-5A

LED Dimming Driver

This indoor LED dimmer supports 0-10V, 1-10V, 10V PWM, and push-button control with smooth PWM dimming from 0.1% to 100% without affecting color quality. It delivers up to 20A output, includes automatic short-circuit and overcurrent protection, and is housed in durable protective plastic.

€ 56,21

Ajouter au panier

Input Voltage Domain: DC

Input Voltage: 12-24 V

Output Voltage: 12-24 V

Channels: 4

Current load/ ch: 5A

Curent load max: 20A

Output Power Range: 480

Control: 0-10V , Push dim

Dimensions: L175×W44×H30(mm)

Weight: 150g

Working Temperature: -30°C to 55°C

Dimming Range: 0-100% down to 0.1%

Package Size: L178×W48×H33(mm)

Documents

LT-704-5A User Manual

Specifications

Input Voltage Domain DC

Input Voltage 12-24 V

Output Voltage 12-24 V

Channels 4

Current load/ ch 5A

Curent load max 20A

Output Power Range 480

Control 0-10V · Push dim

Dimensions L175×W44×H30(mm)

Weight 150g

Working Temperature -30°C to 55°C

Dimming Range 0-100% down to 0.1%

Package Size L178×W48×H33(mm)

Internal Reference 2262900

Barcode 6971379110888

HS Code 85044095

Downloads

LT-704-5A User Manual Click to view Download
