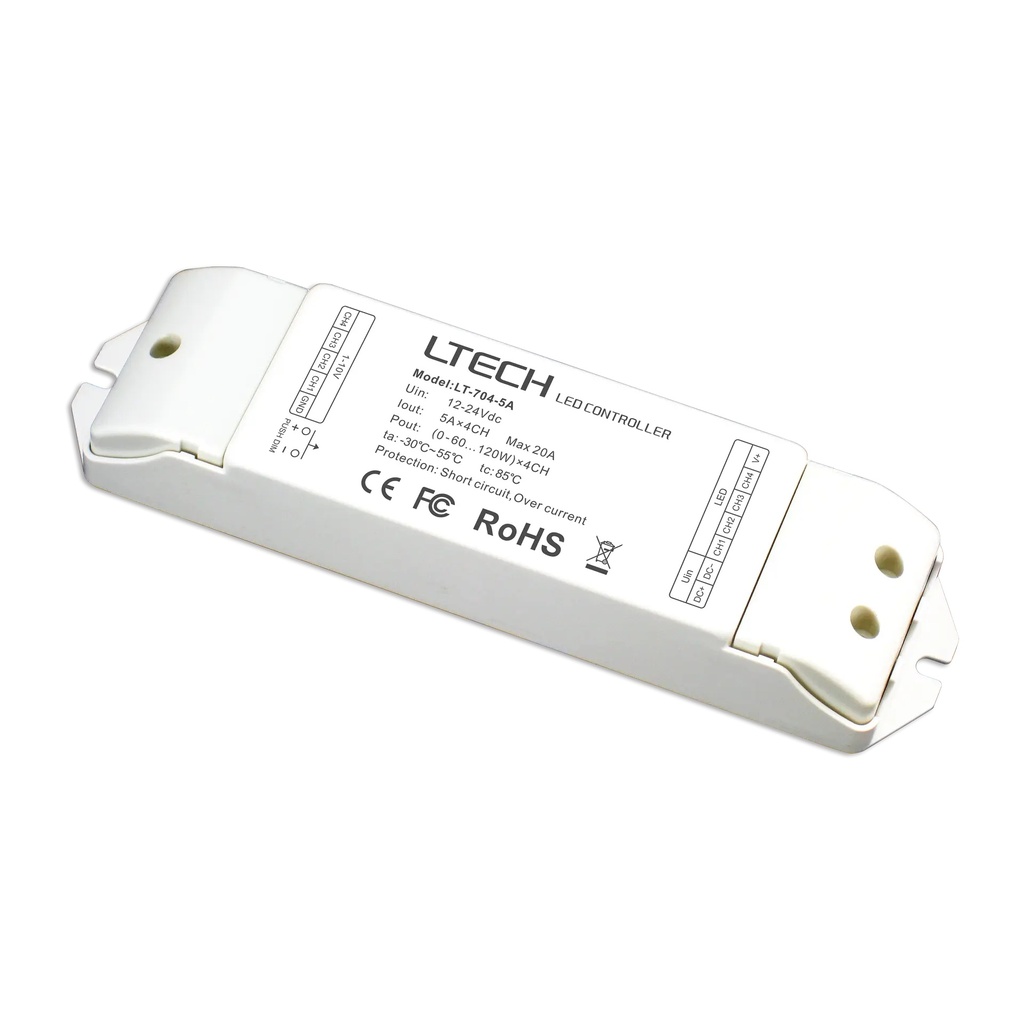

LTECH 0-10V/Push LED driver CV 4x5A

Name: LTECH 0-10V/Push LED driver CV 4x5A - LT-704-5A
Brand: LTECH
SKU: 2262900
Price: 56.21 EUR
Availability: InStock

LT-704-5A

LED Dimdriver

Deze LED-dimmer voor binnenshuis ondersteunt 0-10V, 1-10V, 10V PWM en drukknop besturing met soepel PWM-dimmen van 0,1% tot 100% zonder de kleurkwaliteit te beïnvloeden. Hij levert tot 20A uitgangsvermogen, beschikt over automatische bescherming tegen kortsluiting en overstroom, en is ondergebracht in duurzaam beschermend kunststof.

€ 56,21

Aan winkelmandje toevoegen

Input Voltage Domain: DC

Input Voltage: DC (12-24 V)

Output Voltage: 12-24 V

Channels: 4

Current load/ ch: 5A

Curent load max: 20A

Output Power: 480

Control: 0-10V , Push dim

Dimensions (LxWxH) (mm): L175×W44×H30(mm)

Weight (g): 150g

Working Temperature: -30°C to 55°C

Dimming Range: 0-100% down to 0.1%

Package Size: L178×W48×H33(mm)

Documenten

LT-704-5A User Manual

Specifications

Input Voltage Domain DC

Input Voltage DC (12-24 V)

Output Voltage 12-24 V

Channels 4

Current load/ ch 5A

Curent load max 20A

Output Power 480

Control 0-10V · Push dim

Dimensions (LxWxH) (mm) L175×W44×H30(mm)

Weight (g) 150g

Working Temperature -30°C to 55°C

Dimming Range 0-100% down to 0.1%

Package Size L178×W48×H33(mm)

Internal Reference 2262900

Barcode 6971379110888

HS Code 85044095

Downloads

LT-704-5A User Manual Click to view Download
