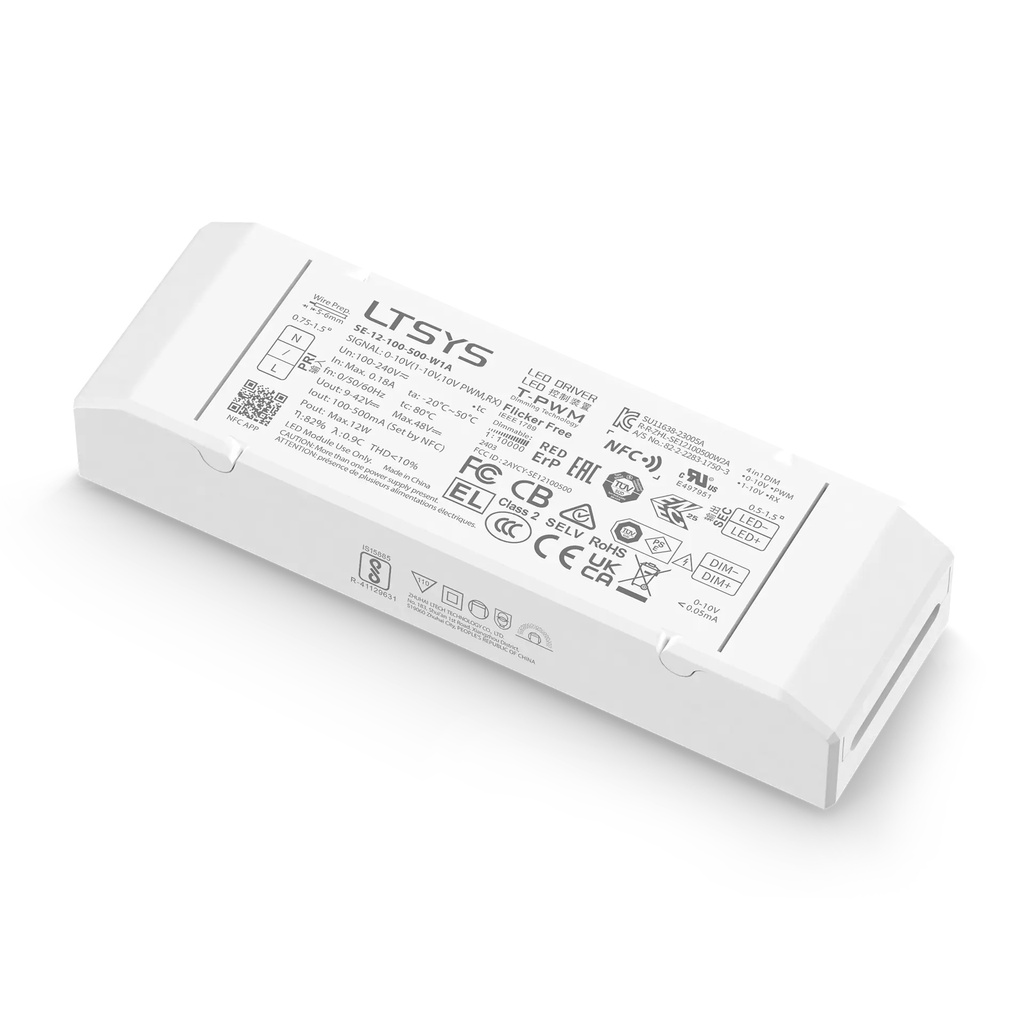

LTECH LTSYS Driver CC 0-10V 1CH 100-500mA 12W

SE-12-100-500-W1A

Driver LED intelligent (courant constant)
Ce driver LED ultra-petit, fin et léger dispose d'un embout sans vis pour une installation facile. Vous pouvez régler le courant de sortie, le mode de gradation et d'autres paramètres via l'application, avec un courant de sortie réglable par pas de 1 mA. Il présente une consommation ultra-faible sur les ports 0-10 V <0,05 mA et comprend une fonction de gradation soft-on et fade-in pour améliorer le confort visuel. La durée de vie normale peut atteindre 100 000 heures. Garantie de 5 ans (condensateur Rubycon).


€ 25,48 € 25,48

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: 0-10V
Channels: 1
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Current: 100-500mA
Output Voltage: 9-42 V
Output Power: 12 W
Certificates: CCC , TUV , FCC , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , ERP , PSE , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years(Rubycon capacitor)
Specifications
Control 0-10V
Channels 1
Input Voltage AC (100-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Current 100-500mA
Output Voltage 9-42 V
Output Power 12 W
Certificates CCC · TUV · FCC · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · ERP · PSE · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years(Rubycon capacitor)
Internal Reference 2827101
Barcode 6971379113261
HS Code 85044095
Downloads
SE-12-100-500-W1A User Manual Click to view Download

Référence interne: 2827101
Code-barres: 6971379113261
Code SH: 85044095
