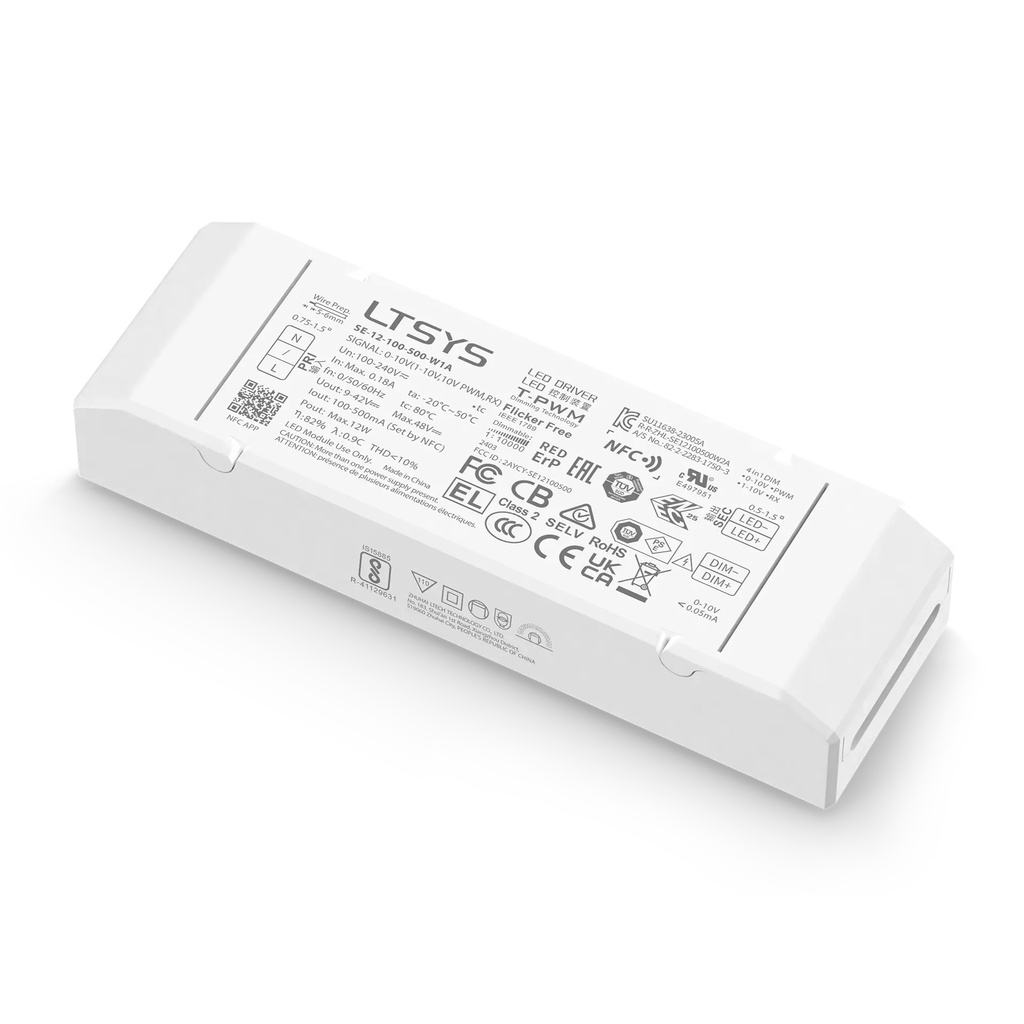

LTECH LTSYS Driver CC 0-10V 1CH 100-500mA 12W

SE-12-100-500-W1A

Driver LED Intelligente (Corrente Costante)
Questo driver LED ultracompatto, sottile e leggero dispone di un tappo terminale senza vite per un'installazione semplice. È possibile regolare la corrente di uscita, la modalità di dimmerazione e altre impostazioni tramite l'app, con corrente di uscita regolabile in passi di 1 mA. Presenta un consumo ultra-basso sulle porte 0-10V <0,05 mA e include una funzione di dimmerazione ad accensione morbida e fade-in per migliorare il comfort visivo. La durata di servizio normale può raggiungere le 100,000 ore. Garanzia di 5 anni (condensatore Rubycon).


€ 25,48 € 25,48

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: 0-10V
Channels: 1
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Current: 100-500mA
Output Voltage: 9-42 V
Output Power: 12 W
Certificates: CCC , TUV , FCC , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , ERP , PSE , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years(Rubycon capacitor)
Specifications
Control 0-10V
Channels 1
Input Voltage AC (100-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Current 100-500mA
Output Voltage 9-42 V
Output Power 12 W
Certificates CCC · TUV · FCC · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · ERP · PSE · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years(Rubycon capacitor)
Internal Reference 2827101
Barcode 6971379113261
HS Code 85044095
Downloads
SE-12-100-500-W1A User Manual Click to view Download
