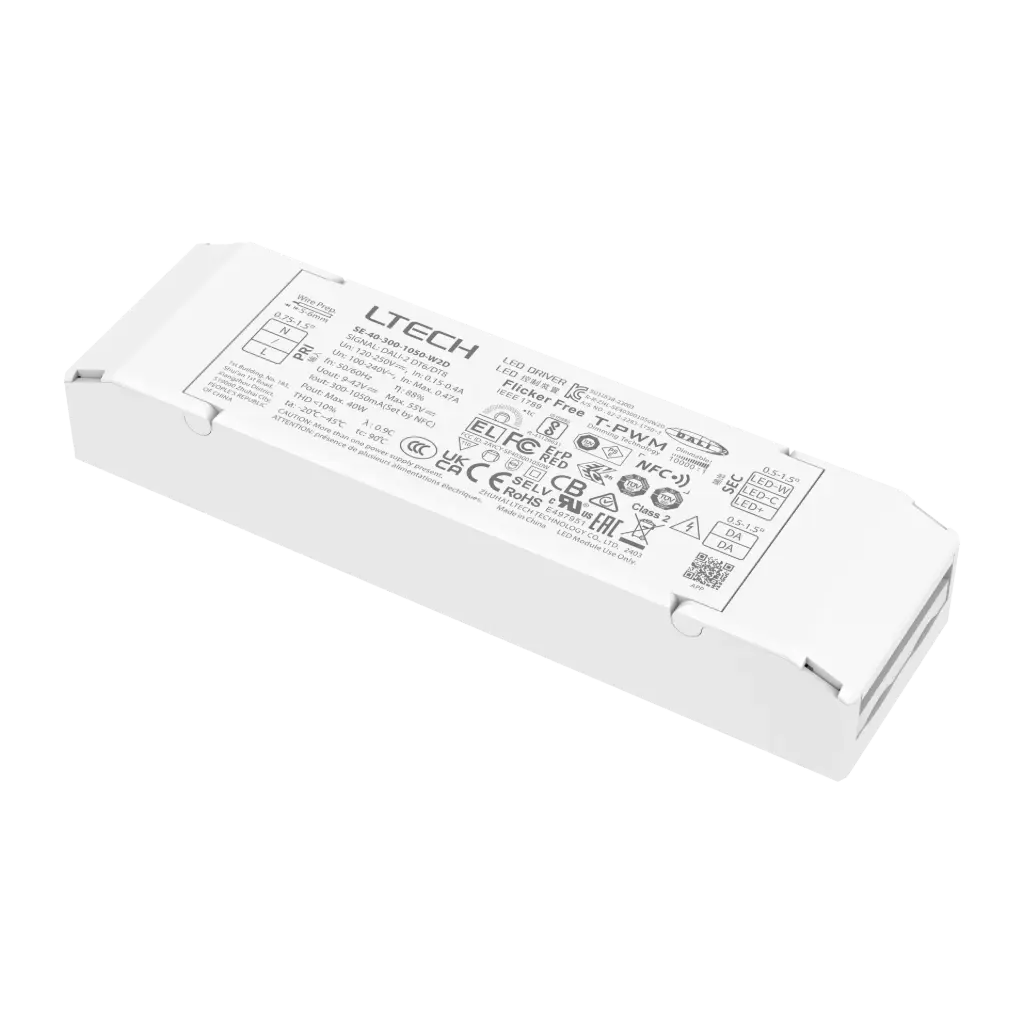

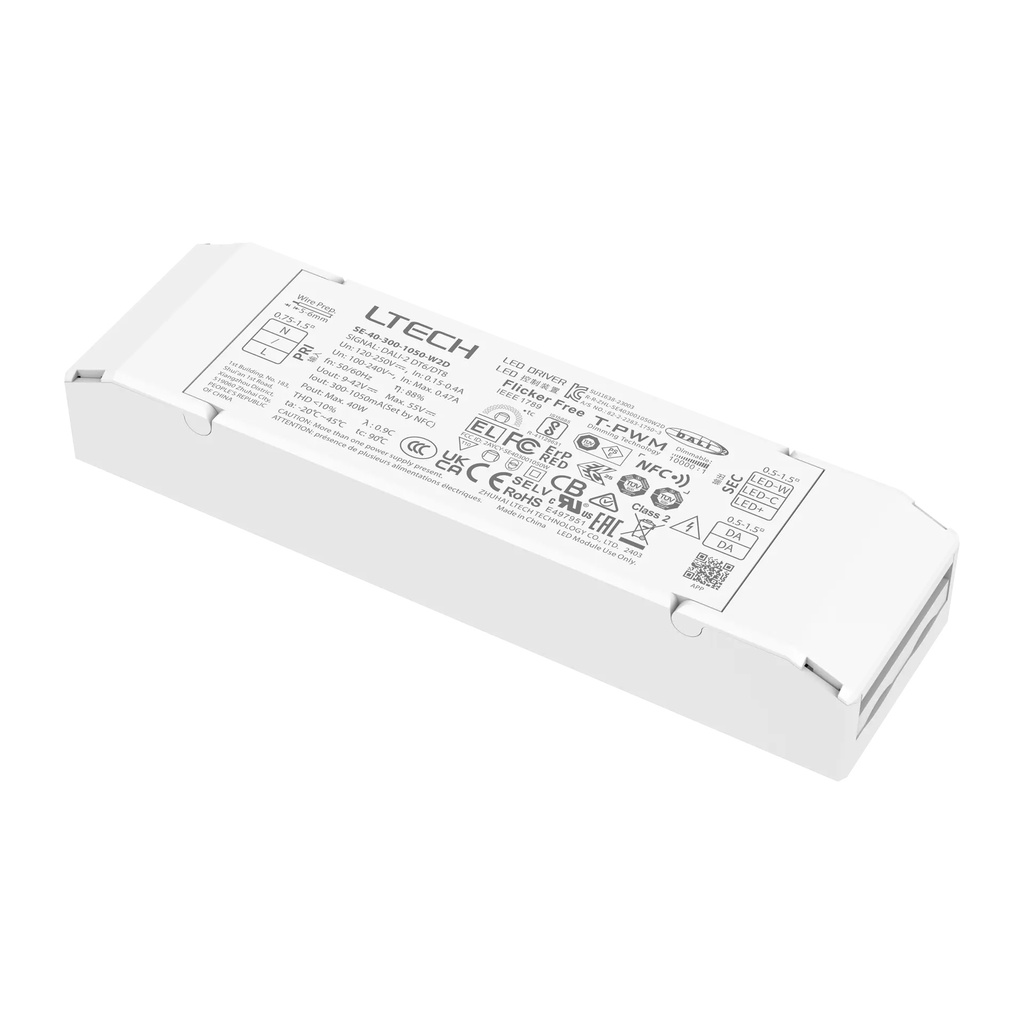

LTECH LTSYS Driver CC DALI DT6/DT8 2CH 300-1050mA 40W NFC UL

SE-40-300-1050-W2D

Driver LED Intelligente a Bianco Regolabile (Corrente Costante)
Driver LED compatto con alloggiamento ignifugo V0 e tappo terminale senza vite. Presenta corrente di uscita regolabile in passi di 1 mA, dimmerazione ad accensione morbida/fade-in, e dimmerazione ultra-profonda T-PWM™ senza sfarfallio fino allo 0,01%. Supporta gruppi e scene DALI, con parametri regolabili tramite app. Include protezione da surriscaldamento, sovratensione, sovraccarico e cortocircuito, uscita a 0V in assenza di carico, conformità ErP dell'UE (standby <0,5 W), adatto per apparecchi di Classe Ⅰ/Ⅱ/Ⅲ, durata di 100,000 ore.

€ 38,59 € 38,59

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power
  • Version
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DALI
Channels: 2
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
Output Current: 300-1050mA
Output Voltage: 9-42 V
Output Power: 40 W
Version: DT6 , DT8
Certificates: CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years(Rubycon capacitor)
Specifications
Control DALI
Channels 2
Input Voltage AC (100-240 V)
Input Voltage Domain AC
Output Current 300-1050mA
Output Voltage 9-42 V
Output Power 40 W
Version DT6 · DT8
Certificates CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years(Rubycon capacitor)
Internal Reference 2827001
Barcode 6971379113605
HS Code 85044095
Downloads
SE-40-300-1050-W2D User Manual Click to view Download
