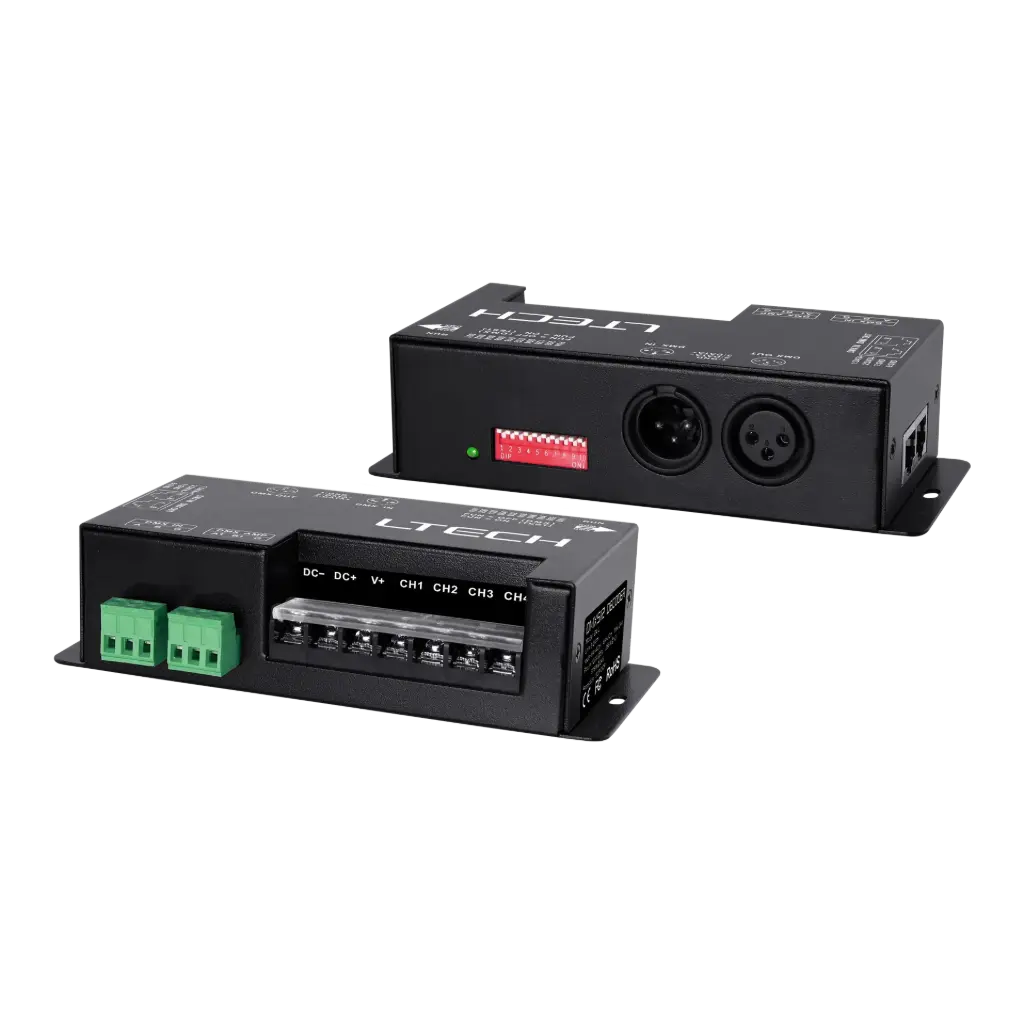

D4-L
The D4-L supports bi-directional DMX512 communication via the standard RDM protocol, allowing remote reading and writing of DMX addresses with an RDM-compatible master controller. Equipped with DMX 3-pin XLR, RJ45, and green terminal interfaces, it provides 0–100% dimming and various lighting effects, compatible with single-color, bi-color, RGB, and RGBW LED lamps.
• Input Signal: DMX512, RDM
• Input Voltage: 5~24V DC
• Current Load: 6A x 4CH 8A x 3CH
• Output Power: 120W@5V 288W@12V 576W@24V
• DMX512 Socket: 3-pin XLR, RJ45, Green Terminal
• Working Temperature: -25°C~55°C
• Dimensions: L156 x W78 x H40 (mm)
• Weight: 445g
