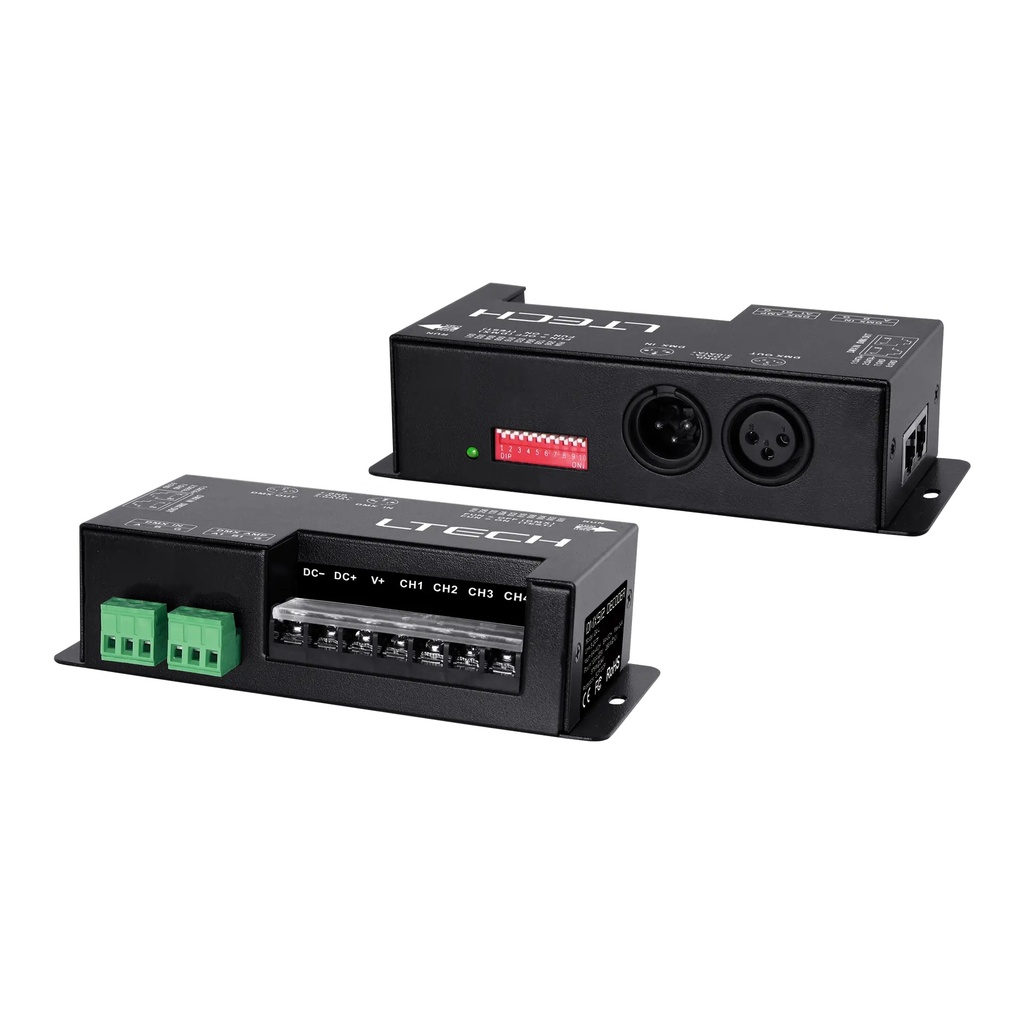

LTECH DMX LED driver CV 3x8A / 4x6A

Name: LTECH DMX LED driver CV 3x8A / 4x6A - D4-L
Brand: LTECH
SKU: 2285301
Price: 27.98 EUR
Availability: InStock

D4-L

De D4-L ondersteunt bidirectionele DMX512-communicatie via het standaard RDM-protocol, waardoor DMX-adressen op afstand gelezen en geschreven kunnen worden met een RDM-compatibele mastercontroller. Uitgerust met DMX 3-pins XLR-, RJ45- en groene klemaansluitingen, biedt hij 0-100% dimmen en diverse verlichtingseffecten, compatibel met enkelkleurige, tweekleurige, RGB- en RGBW LED-lampen.

€ 27,98

Aan winkelmandje toevoegen

Control: DMX

Channels: 3 , 4

Input Voltage: DC (5-24 V)

Input Voltage Domain: DC

Working Temperature: -25°C to 55°C

Output Voltage: 5-24 V

Output Power: 576

Current load/ ch: 6Ax4CH/8Ax3CH

Curent load max: 24A

Dimming Range: 0-100%

Weight (g): 445g

Dimensions (LxWxH) (mm): L156×W78×H40(mm)

Package Size: L180×W82×H48(mm)

Documenten

D4-L User Manual

Specifications

Control DMX

Channels 3 · 4

Input Voltage DC (5-24 V)

Input Voltage Domain DC

Working Temperature -25°C to 55°C

Output Voltage 5-24 V

Output Power 576

Current load/ ch 6Ax4CH/8Ax3CH

Curent load max 24A

Dimming Range 0-100%

Weight (g) 445g

Dimensions (LxWxH) (mm) L156×W78×H40(mm)

Package Size L180×W82×H48(mm)

Internal Reference 2285301

Barcode 6971379115777

HS Code 85044095

Downloads

D4-L User Manual Click to view Download
