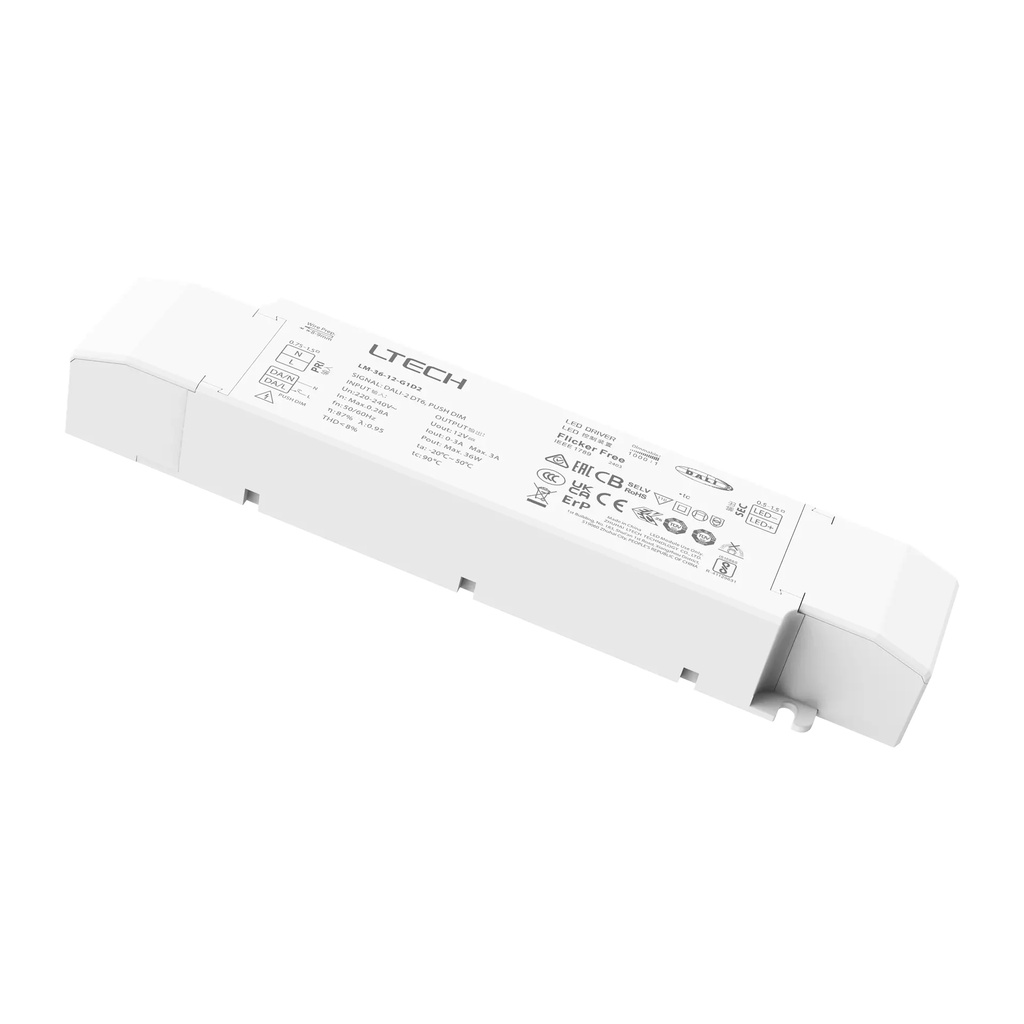

LTECH LTSYS Driver CV DALI-2 1CH 12V 36W

LM-36-12-G1D2

Intelligente LED Driver (Constante Spanning)

Kleine, lichtgewicht V0 vlamvertragende polycarbonaat-beschermbehuizingen van SAMSUNG/COVESTRO. Afneembare eindkap maakt de lengte verstelbaar. DALI-2 en Push DIM interfaces, 0-100% dimmen tot 0,1%, flikkervrij met hoogfrequente vrijstelling. Rendement van hoogwaardige drivers 88%, PF>0,95, THD<8%, stand-by <0,5 W. Thermisch beheer met beveiliging tegen oververhitting, overspanning, overbelasting en kortsluiting, herstelt automatisch. Voldoet aan DALI-busstandaard IEC62386-101, 102, 207. Geschikt voor binnenlamptoepassing I/II/III. 50,000 uur levensduur.


€ 36,23 € 36,23

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Curent load max
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Control
  • Dimming Range
  • Warranty
Input Voltage Domain: AC
Input Voltage: AC (220-240 V)
Output Voltage: 12 V
Channels: 1
Curent load max: 3A
Output Power: 36 W
Certificates: CCC , BIS , TUV , CE , KC , RCM , ENEC , CB , EAC , UKCA
Control: DALI , Push dim
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Input Voltage Domain AC
Input Voltage AC (220-240 V)
Output Voltage 12 V
Channels 1
Curent load max 3A
Output Power 36 W
Certificates CCC · BIS · TUV · CE · KC · RCM · ENEC · CB · EAC · UKCA
Control DALI · Push dim
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2850900
Barcode 6971379111823
HS Code 85044095
Downloads
LM-36-12-G1D2 User Manual Click to view Download

Interne referentie: 2850900
Barcode: 6971379111823
HS Code: 85044095
