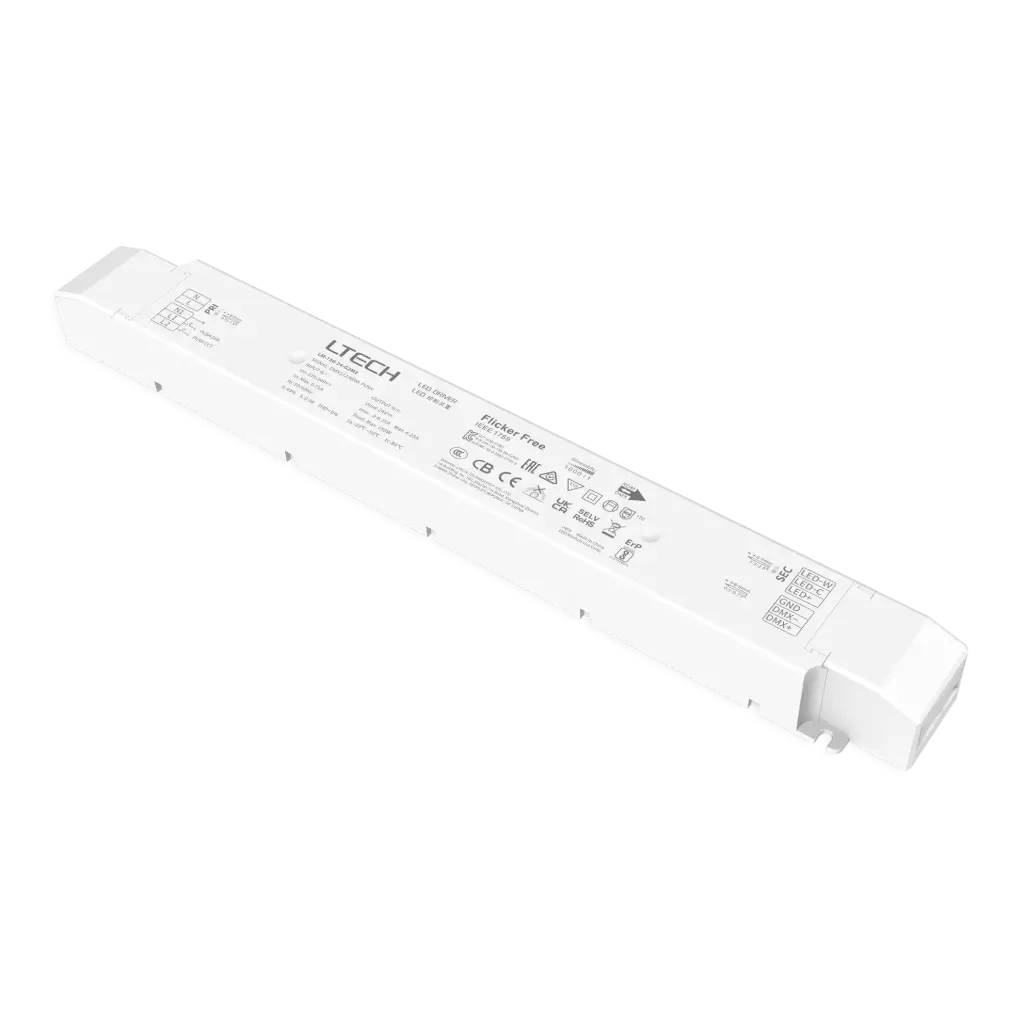

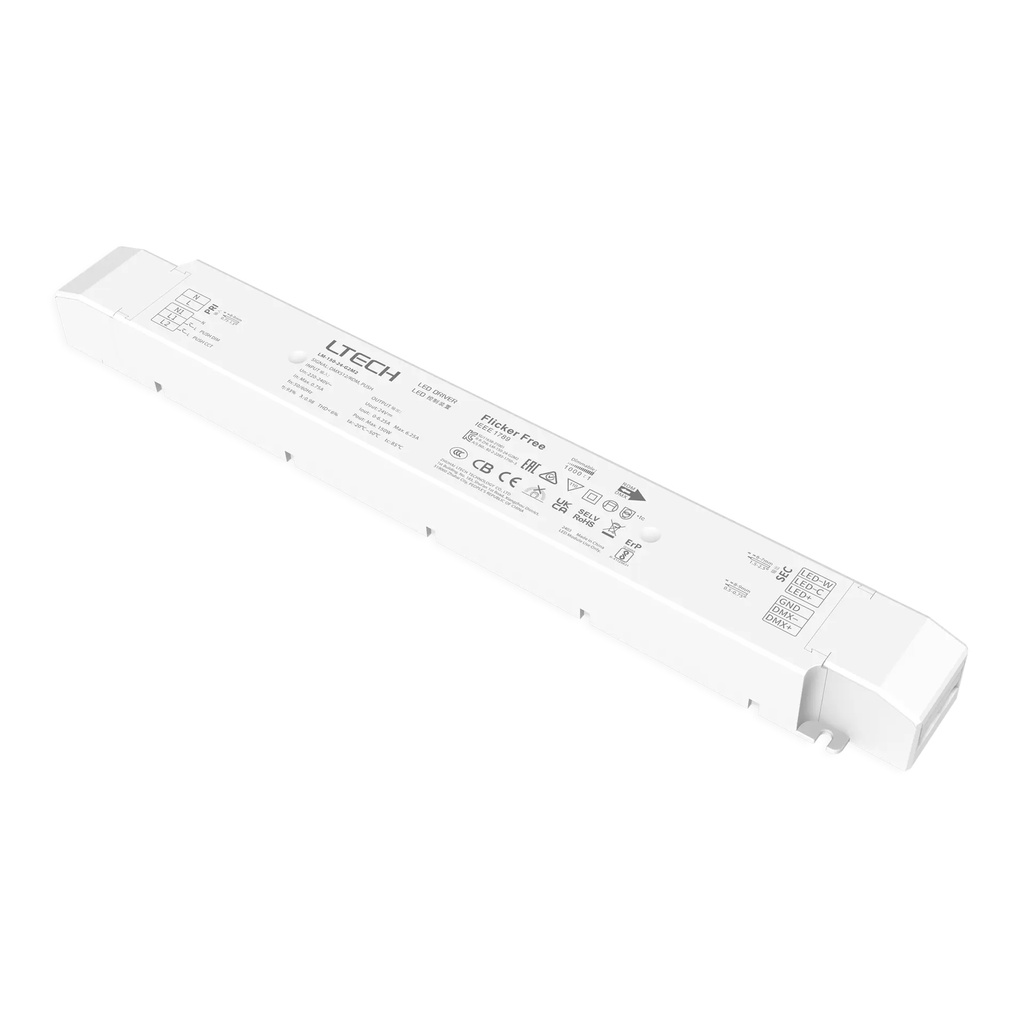

LTECH LTSYS Driver CV DMX 2CH 24V 150W

LM-150-24-G2M2

Intelligente LED CT Driver (Constante Spanning)
Compact en lichtgewicht met V0 vlamvertragende PC-behuizing van Samsung/Covestro. Voorzien van twee onafhankelijke SELV constante-spanning kanalen met constant-vermogen-ontwerp om de helderheid gelijk te houden tijdens kleurtemperatuuraanpassing (2700-6500K). Ondersteunt het RDM-protocol, soft-on en fade-in dimmen. Hoog rendement van 93% (PF>0,98, THD<6%) met stand-by verbruik <0,5W. Inclusief beveiliging tegen oververhitting, overspanning, overbelasting en kortsluiting met automatisch herstel. Volledig beschermde behuizing met afneembare eindkap, geschikt voor Klasse I/II/III binnenverlichting. Tot 50,000 uur levensduur.

€ 81,44 € 81,44

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DMX
Channels: 2
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Output Voltage: 24 V
Output Power: 150
Current load/ ch: 6.25A
Curent load max: 6.25A
Certificates: CCC , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , ERP , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control DMX
Channels 2
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Output Voltage 24 V
Output Power 150
Current load/ ch 6.25A
Curent load max 6.25A
Certificates CCC · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · ERP · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2813200
Barcode 6971379111779
HS Code 85044095
Downloads
LM-150-24-G2M2 User Manual Click to view Download

Interne referentie: 2813200
Barcode: 6971379111779
HS Code: 85044095
