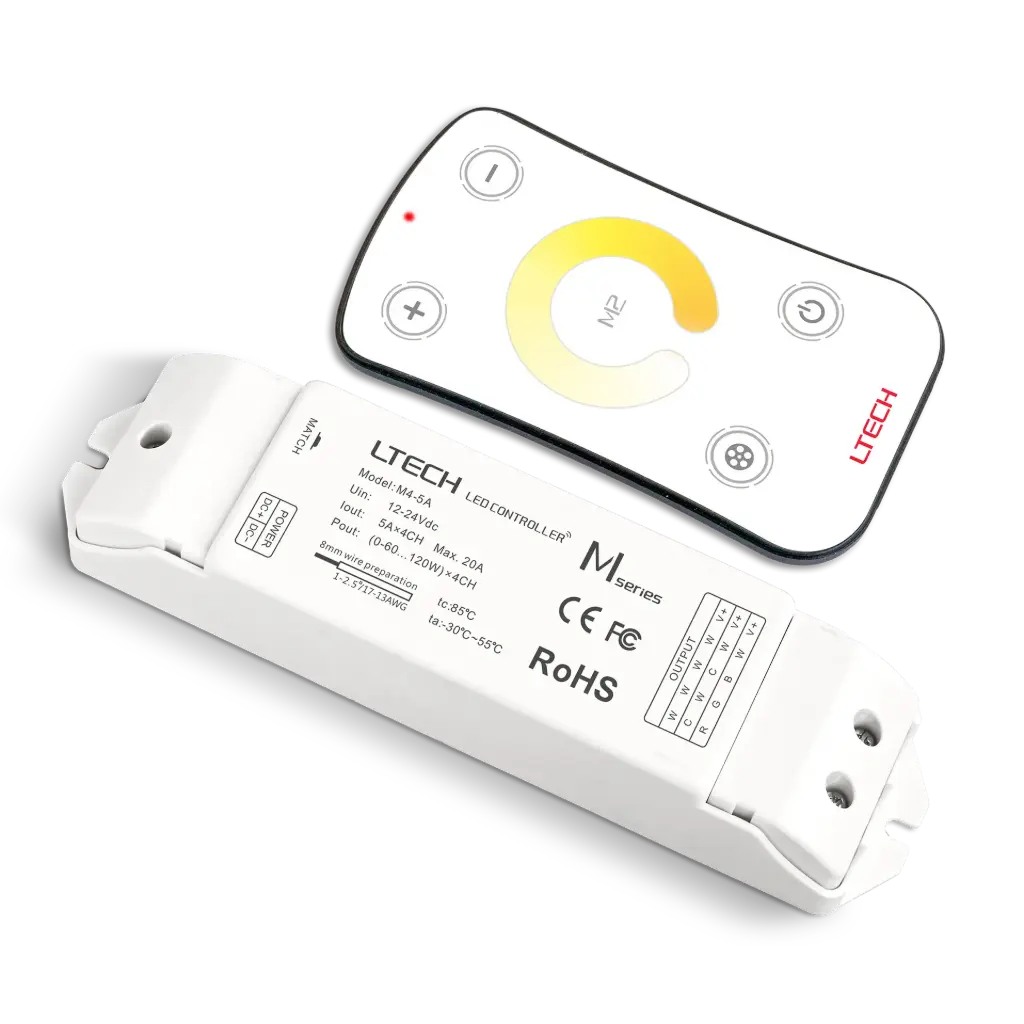

LTECH Mini RF remote + receiver CV 4x5A CT

M2+M4-5A

The M series LED controller supports eight types of remotes (patented technology), allowing one receiver to handle single color/CT dimming and RGB/RGBW control. RF remotes enable brightness and speed adjustments, as well as customizable color and dynamic lighting modes.

Receiver Model: M4-5A
  • Input voltage: 12~24Vdc
  • Maximum load current: 5A × 4CH, maximum 20A
  • Maximum load power: (0~60W...120W) × 4 CH, maximum 480W
  • Protection: short circuit/overcurrent protection
  • Working temperature: -30℃~55℃
  • Product size: L175 × W44 × H30(mm)
  • Weight (net weight): 125g
Remote Model: M2
  • Working Voltage: 3Vdc (battery CR2032)
  • Working Frequency: 433.92MHz
  • Remote Distance: 30m
  • Working Temp.: -30°C~55°C
  • Remote Dimensions: L104 x W60 x H9 (mm)
  • Remote Weight (N.W.): 42g

€ 32.48 € 32.48

  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Weight
  • Dimensions
  • Working Temperature
Add to cart
Channels: 4
Input Voltage: 12-24 V
Input Voltage Domain: DC
Output Power Range: 120 W
Current load/ ch: 5A
Curent load max: 20A
Weight: 125g
Dimensions: L175xW44xH30(mm)
Working Temperature: -30°C-55°C
Documents
M2+M4-5A User Manual.pdf
Specifications
Channels 4
Input Voltage 12-24 V
Input Voltage Domain DC
Output Power Range 120 W
Current load/ ch 5A
Curent load max 20A
Weight 125g
Dimensions L175xW44xH30(mm)
Working Temperature -30°C-55°C
Internal Reference 2266210
Barcode 6971379114718
HS Code 85044095
Downloads
M2+M4-5A User Manual Click to view Download

Internal Reference: 2266210
Barcode: 6971379114718
HS Code: 85044095
