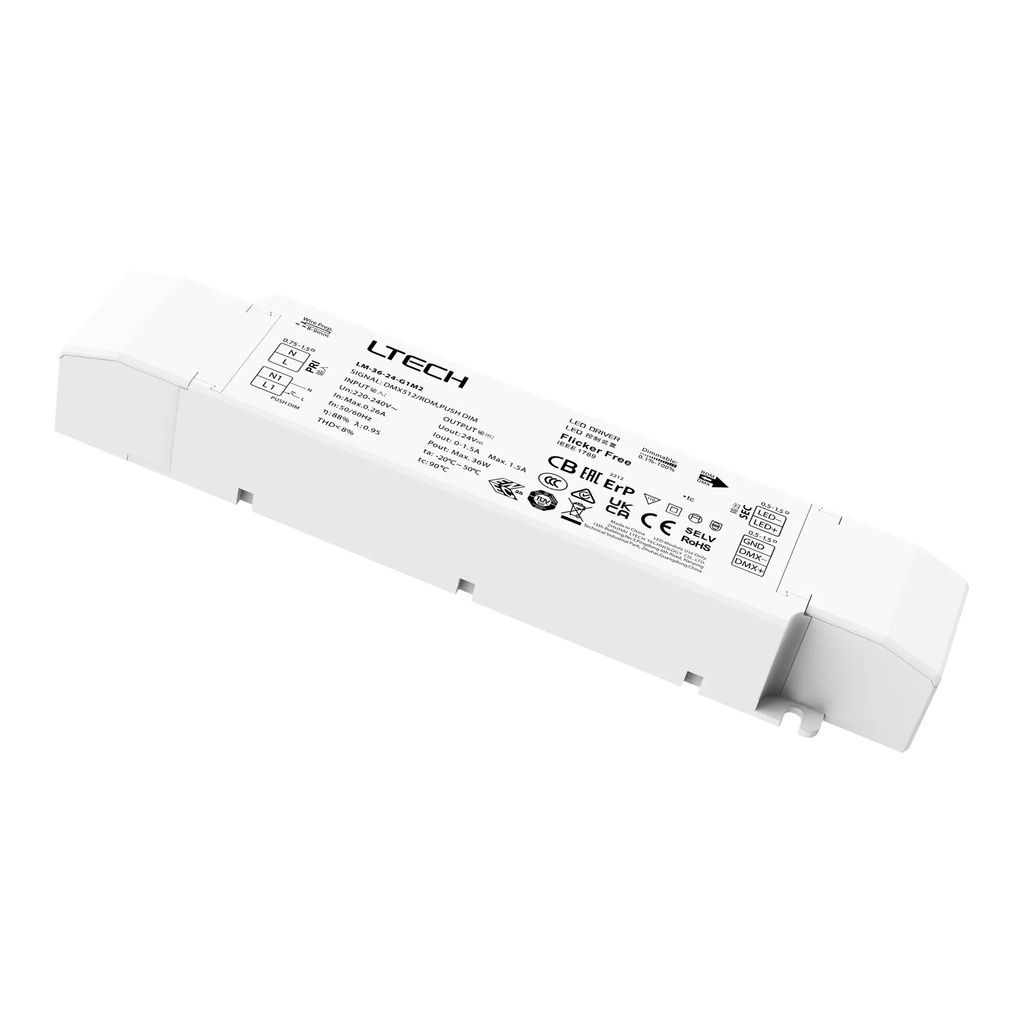

LTECH LTSYS Driver CV DMX 1CH 24V 36W

LM-36-24-G1M2

Driver LED Inteligente (Tensión Constante)
Driver compacto y ligero con carcasa de PC ignífuga V0 de SAMSUNG/COVESTRO y tapa final desmontable para longitud ajustable. Compatible con DMX512/RDM y Push DIM con regulación 0-100% hasta 0,1%, sin parpadeo y con encendido suave/aumento gradual del brillo para el confort visual. Compatible con gestión remota de dispositivos RDM. Driver de alta eficiencia (88%, PF>0,95, THD<8%) con aislamiento de señal y gestión térmica innovadora. Cumple con la Directiva ErP de la UE, en espera <0,5 W. Protección contra sobrecalentamiento, sobretensión, sobrecarga y cortocircuito con recuperación automática. Apto para aplicaciones de luminarias de interior tipo I/II/III. Vida útil de hasta 50,000 horas.

€ 37,97 € 37,97

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DMX
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Output Voltage: 24 V
Output Power: 36 W
Curent load max: 1.5A
Certificates: CCC , TUV , CE , KC , RCM , ENEC , CB , EAC , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control DMX
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Output Voltage 24 V
Output Power 36 W
Curent load max 1.5A
Certificates CCC · TUV · CE · KC · RCM · ENEC · CB · EAC · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2813301
Barcode 6971379115838
HS Code 85044095
Downloads
LM-36-24-G1M2 User Manual Click to view Download

Referencia interna: 2813301
Código de barras: 6971379115838
Código HS: 85044095
