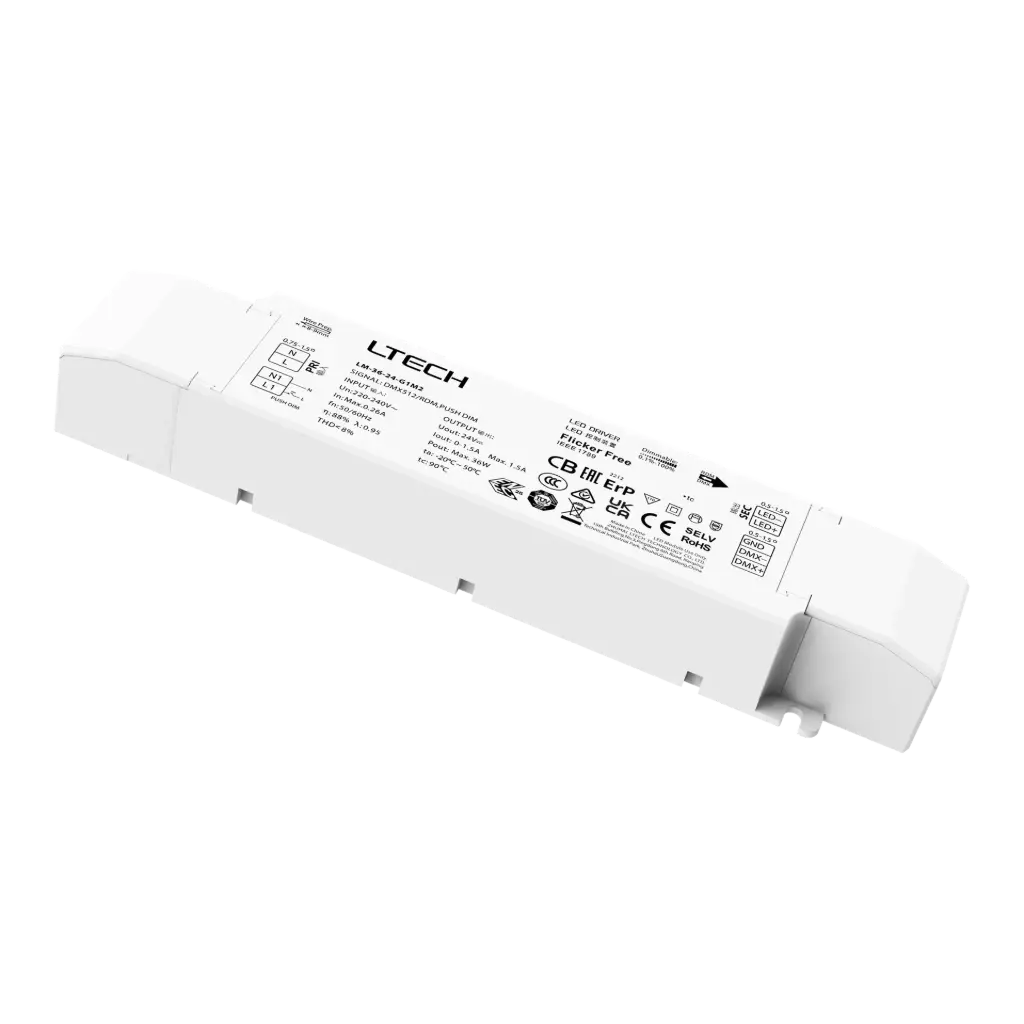

LTECH LTSYS Driver CV DMX 1CH 24V 36W

LM-36-24-G1M2

Driver LED Intelligente (Tensione Costante)
Driver compatto e leggero con involucro in PC ignifugo V0 di SAMSUNG/COVESTRO e tappo terminale smontabile per lunghezza regolabile. Supporta DMX512/RDM e Push DIM con dimmerazione 0-100% fino allo 0,1%, senza sfarfallio e con avvio graduale/fade-in per il comfort visivo. Supporta la gestione remota dei dispositivi RDM. Driver ad alta efficienza (88%, PF>0,95, THD<8%) con isolamento dei segnali e gestione termica innovativa. Conforme alla direttiva UE ErP, standby <0,5 W. Protezione da surriscaldamento, sovratensione, sovraccarico e cortocircuito con ripristino automatico. Adatto ad applicazioni per lampade indoor di tipo I/II/III. Durata fino a 50,000 ore.

€ 37,97 € 37,97

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DMX
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Output Voltage: 24 V
Output Power: 36 W
Curent load max: 1.5A
Certificates: CCC , TUV , CE , KC , RCM , ENEC , CB , EAC , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control DMX
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Output Voltage 24 V
Output Power 36 W
Curent load max 1.5A
Certificates CCC · TUV · CE · KC · RCM · ENEC · CB · EAC · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2813301
Barcode 6971379115838
HS Code 85044095
Downloads
LM-36-24-G1M2 User Manual Click to view Download

Riferimento interno: 2813301
Codice a barre: 6971379115838
Codice SA: 85044095
