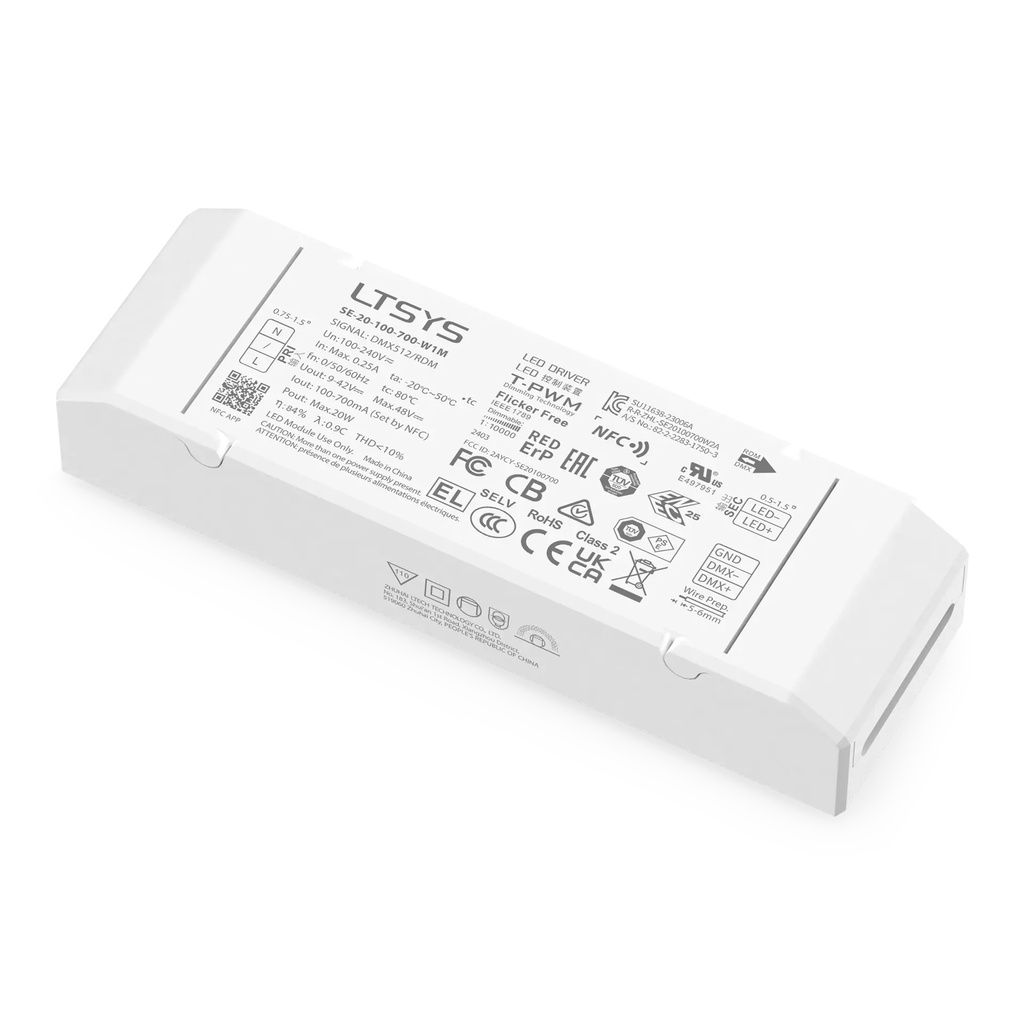

LTECH LTSYS Driver CC DMX 1CH 100-700mA 20W NFC

SE-20-100-700-W1M

Driver LED Intelligente (Corrente Costante)
Driver LED leggero e ultracompatto con tappo terminale senza vite, realizzato in PC ignifugo V0 Samsung/Covestro. Presenta corrente di uscita regolabile in passi di 1 mA e supporta il protocollo RDM. Include dimmerazione ad accensione morbida e fade-in, dimmerazione ultra-profonda T-PWM™ fino allo 0,01%, e funzionamento senza sfarfallio con esenzione ad alta frequenza. Conforme allo standby ErP dell'UE <0,5 W, con uscita automatica a 0V quando non viene rilevato alcun carico. Protegge da surriscaldamento, sovratensione, sovraccarico e cortocircuiti. Adatto per apparecchi interni di Classe I/II/III, con durata di 100,000 ore e garanzia di 5 anni. Corrente di uscita, indirizzo DMX e altri parametri possono essere impostati tramite l'app.

€ 28,11 € 28,11

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DMX
Channels: 1
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Current: 100-700mA
Output Voltage: 9-42 V
Output Power: 20 W
Certificates: CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years(Rubycon capacitor)
Specifications
Control DMX
Channels 1
Input Voltage AC (100-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Current 100-700mA
Output Voltage 9-42 V
Output Power 20 W
Certificates CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years(Rubycon capacitor)
Internal Reference 2278811
Barcode 6971379113681
HS Code 85044095
Downloads
SE-20-100-700-W1M User Manual Click to view Download

Riferimento interno: 2278811
Codice a barre: 6971379113681
Codice SA: 85044095
