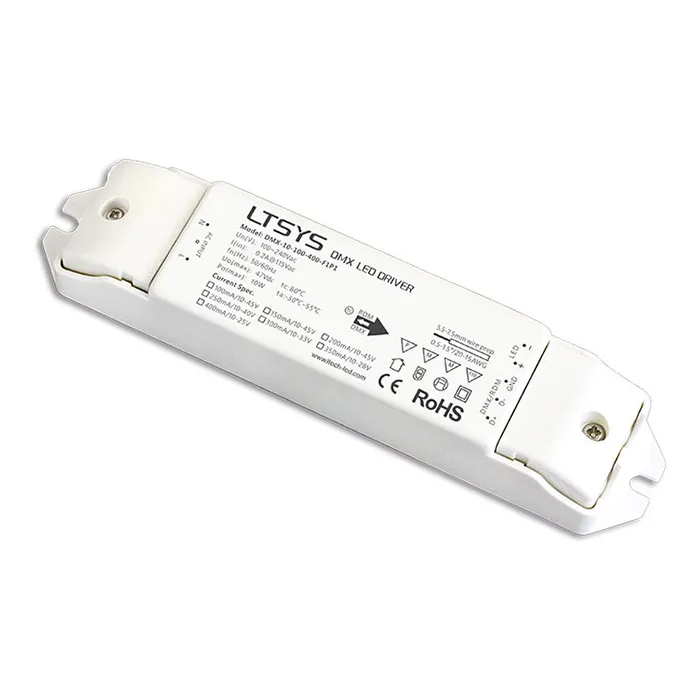

LTECH DMX LED Driver 350mA 10W

DMX-10-100-400-F1P1

Ondersteunt DMX512/RDM met RDM-afstandsbeheer en tweerichtings DMX512-communicatie. Beschikt over PWM-digitaal dimmen van 0,01% tot 100% met flikkervrije prestaties. Bevat bescherming tegen overbelasting, oververhitting en kortsluiting. Klasse 2 voeding met volledig beschermende kunststof behuizing. Voldoet aan de Safety Extra Low Voltage-normen en is geschikt voor binnenverlichting in zones I, II en III.

Uitgangsspanning: 10-45Vdc
Max. uitgangsspanning: 47Vdc
Uitgangsstroom: 100-400mA
Uitgangsvermogen: Max. 10W
Ingangsspanning: 100-240Vac
Ingangsstroom: 0,2A@115Vac, 0,1A@230Vac
Werktemperatuur: ta: -30°C ~ 55°C tc: 80°C
Afmetingen: L135 x B30 x H320 (mm)
Gewicht (G.W.): 80g

€ 8,13 € 23,24

Aan winkelmandje toevoegen

Control: DMX

Input Voltage: AC (100-240 V)

Input Voltage Domain: AC

Working Temperature: -30°C to 55°C

Output Current: 100-400mA

Output Voltage: 10-45 V

Output Power: 10 W

Version: DMX/RDM

Dimming Range: 0-100% down to 0.01%

Weight (g): 80g

Dimensions (LxWxH) (mm): L135xW30xH20(mm)

Package Size: L140xW34xH23(mm)

Documenten

DMX-10-100-400-F1P1 User Manual.pdf

Specifications

Control DMX

Input Voltage AC (100-240 V)

Input Voltage Domain AC

Working Temperature -30°C to 55°C

Output Current 100-400mA

Output Voltage 10-45 V

Output Power 10 W

Version DMX/RDM

Dimming Range 0-100% down to 0.01%

Weight (g) 80g

Dimensions (LxWxH) (mm) L135xW30xH20(mm)

Package Size L140xW34xH23(mm)

Internal Reference 2811200

Barcode 8718969967358

HS Code 85044095

Downloads

DMX-10-100-400-F1P1 User Manual Click to view Download
