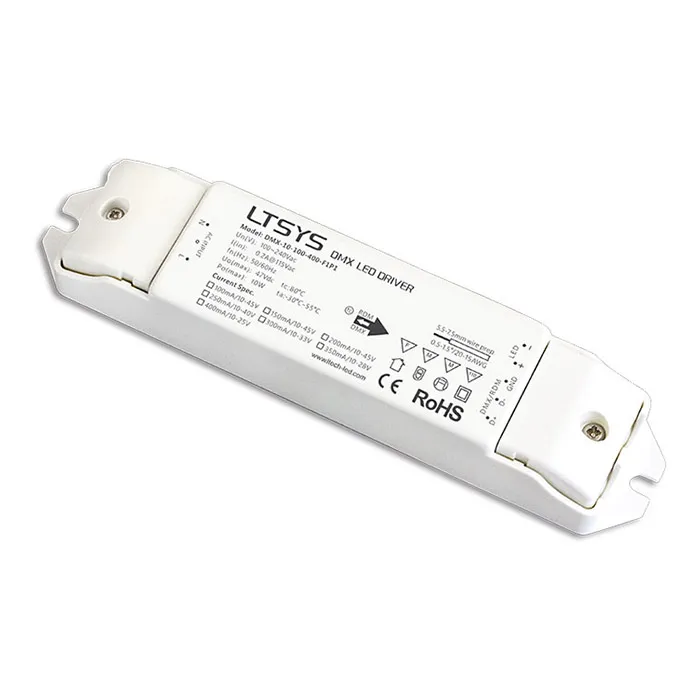

LTECH DMX LED Driver 350mA 10W - DMX-10-100-400-F1P1

Supports DMX512/RDM with RDM remote management and two-way DMX512 communication. Features PWM digital dimming from 0.01% to 100% with flicker-free performance. Includes overload, overheat, and short circuit protection. Class 2 power supply with full protective plastic housing. Complies with Safety Extra Low Voltage standards and is suitable for indoor lighting in zones I, II, and III.

Output Voltage: 10-45Vdc
Max Output Voltage: 47Vdc
Output Current: 100-400mA
Output Power: Max. 10W
Input Voltage: 100-240Vac
Input Current: 0.2A@115Vac, 0.1A@230Vac
Working Temperature: ta: -30°C ~ 55°C tc: 80°C
Dimensions: L135 x W30 x H320 (mm)
Weight (G.W.): 80g

€ 8.13 € 23.24

Add to cart

Control: DMX

Input Voltage: 100-240 V

Input Voltage Domain: AC

Output Current: 100-400mA

Output Voltage: 10-45 V

Output Power Range: 10 W

Version: DMX/RDM

Dimming Range: 0-100% down to 0.01%

Weight: 80g

Dimensions: L135xW30xH20(mm)

Package Size: L140xW34xH23(mm)

Working Temperature: -30°C-55°C

Documents

DMX-10-100-400-F1P1 User Manual.pdf
