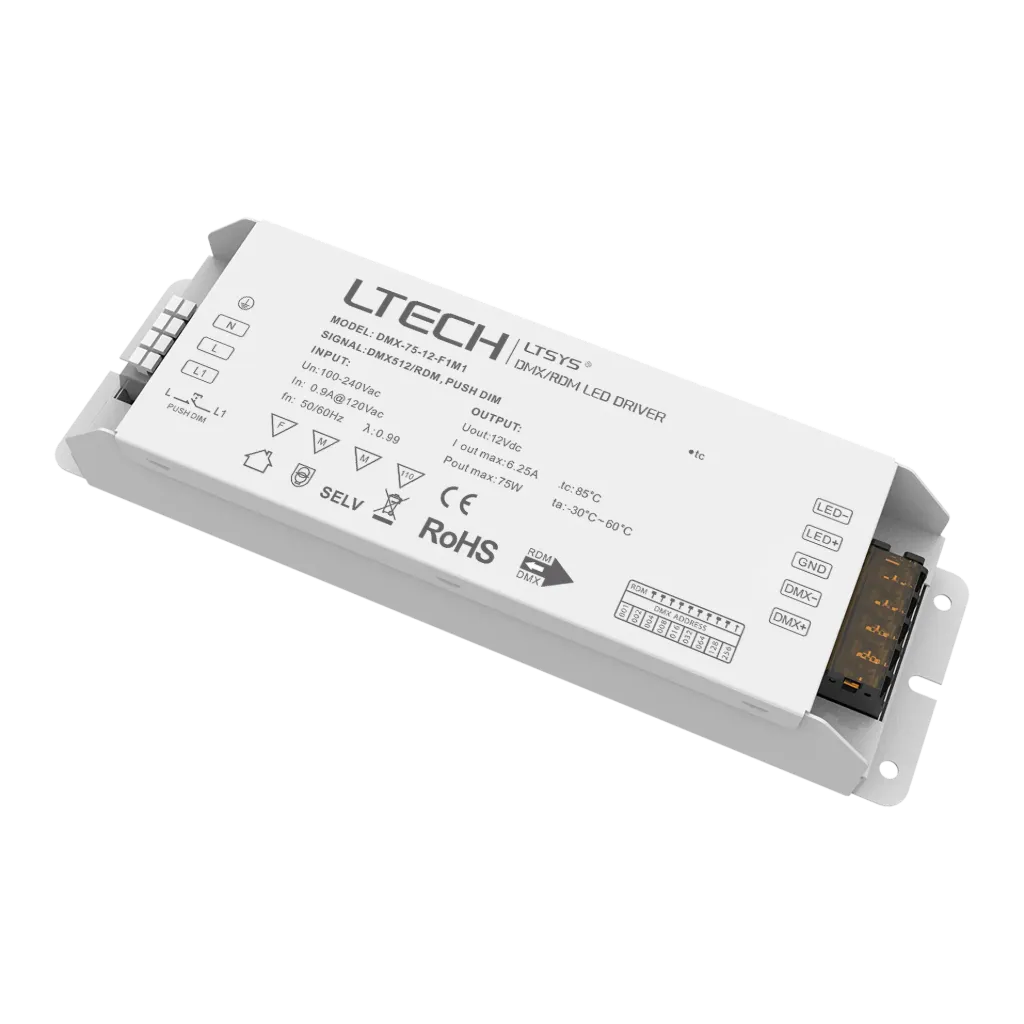

LTECH DMX LED Driver 75W 12V - DMX-75-12-F1M1

LTECH DMX LED Driver 75W 12V

DMX-75-12-F1M1

Supports DMX512/RDM and Push DIM with RDM remote management and two-way DMX512 communication. Features PWM digital dimming from 0.1% to 100% without affecting LED color quality. Offers power factor > 0.99, efficiency > 85%, and built-in protections against short circuit, overheating, overload, and overvoltage. Compliant with safety extra low voltage standards and ideal for indoor use.

  • Input Voltage: 100-240Vac
  • Output Power: Max. 75W
  • Output Current: Max. 6.25A
  • Output Voltage: 12Vdc
  • Working Temperature: tc: 85°C ta: -30°C ~ 60°C
  • Dimensions: L204 x W62 x H34 (mm)
  • Weight (G.W.): 490g
€ 31.39 € 89.68

  • Control
  • Control
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Version
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Current
  • Maximum Output Current
Add to cart
Control: DMX , Push dim
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
Working Temperature: -30°C to 60°C
Output Voltage: 12 V
Output Power: 75 W
Version: DMX/RDM
Dimming Range: 0-100% down to 0.1%
Weight (g): 490g
Dimensions (LxWxH) (mm): L204xW62xH34(mm)
Package Size: L206xW64xH39(mm)
Maximum Current: 6.25 A
Maximum Output Current: 6.25 A
Documents
DMX-75-12-F1M1 User Manual.pdf
Specifications
Control DMX · Push dim
Input Voltage AC (100-240 V)
Input Voltage Domain AC
Working Temperature -30°C to 60°C
Output Voltage 12 V
Output Power 75 W
Version DMX/RDM
Dimming Range 0-100% down to 0.1%
Weight (g) 490g
Dimensions (LxWxH) (mm) L204xW62xH34(mm)
Package Size L206xW64xH39(mm)
Maximum Current 6.25 A
Maximum Output Current 6.25 A
Internal Reference 2810500
Barcode 8718969966597
HS Code 85044095
Downloads
DMX-75-12-F1M1 User Manual Click to view Download

Internal Reference: 2810500
Barcode: 8718969966597
HS Code: 85044095
