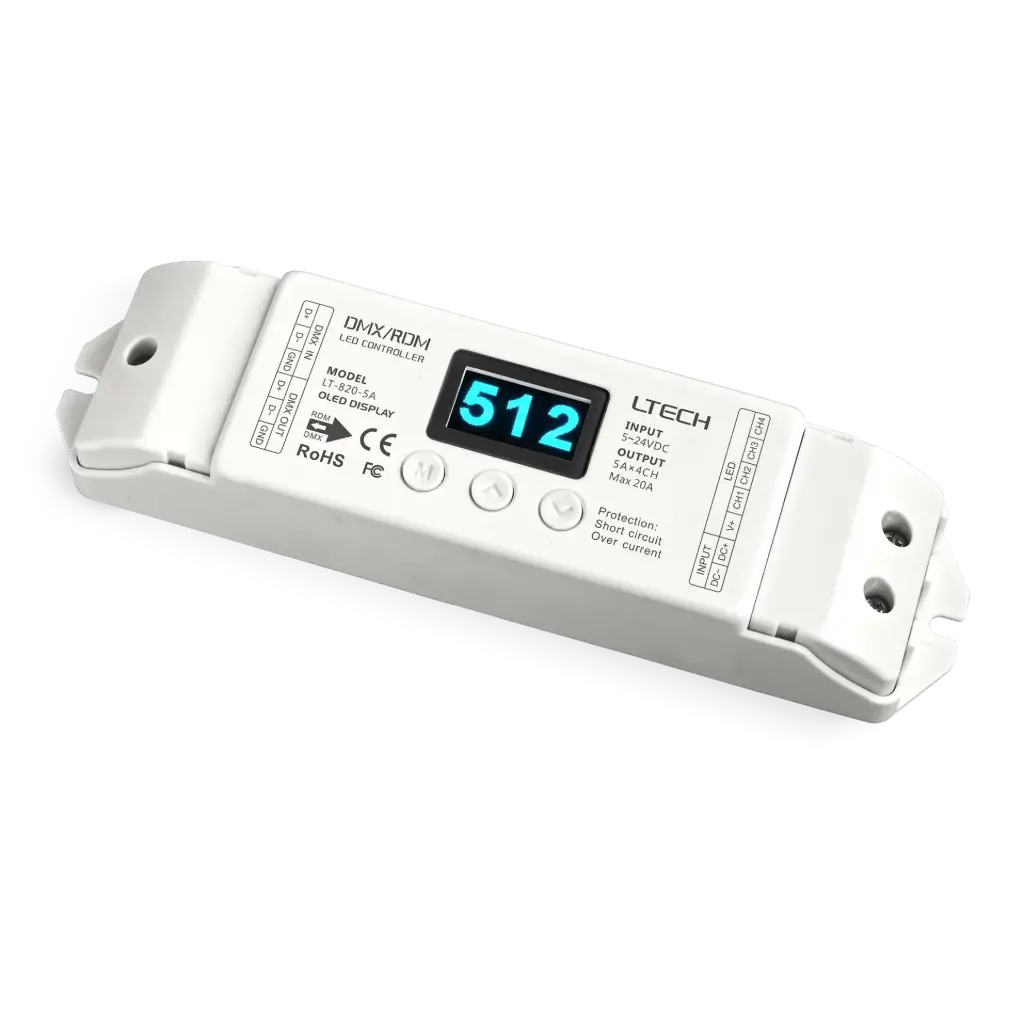

LT-820-5A
The LT-820-5A is the world’s first OLED-display DMX decoder, supporting bi-directional DMX512 communication via the standard RDM protocol for remote reading and writing of DMX addresses. It features an OLED real-time display, 16- or 8-bit input, three dimming curves, and built-in protection against short circuit, overcurrent, overheat, lightning, and ESD.
• Input Signal: DMX512, RDM
• Input Voltage: 5~124V DC
• Load Current: 5A x 4CH / 6A x 3CH Max. 20A
• Output Power: (0...25~120W) x 4CH Max. 480W
• Working Temperature: -30°C~55°C
• Dimensions: L178 x W48 x H33 (mm)
• Weight: 175g
