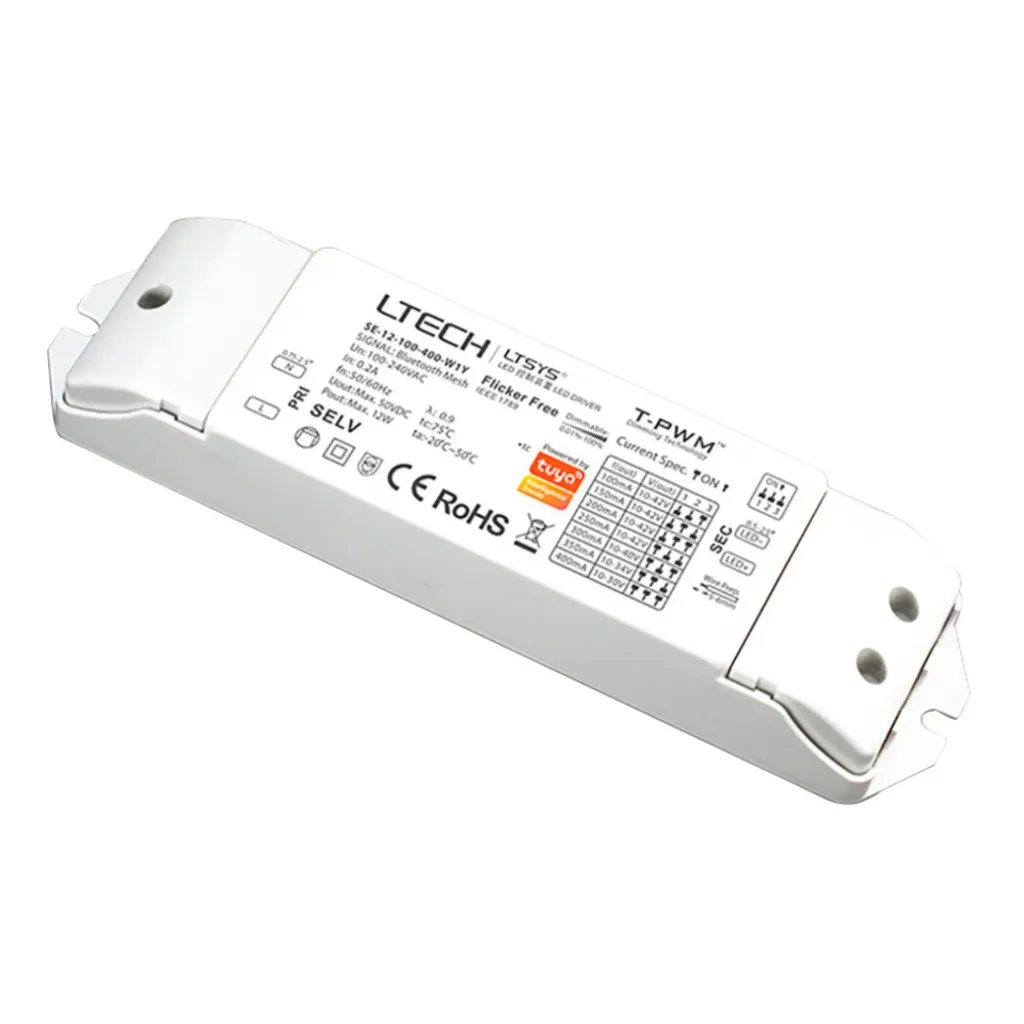

LTECH LTSYS Driver CC TUYA IOT 1CH 100-400mA 12W - SE-12-100-400-W1Y

LTECH LTSYS Driver CC TUYA IOT 1CH 100-400mA 12W

SE-12-100-400-W1Y

Intelligente LED Driver (Constante Stroom)
Compact, lichtgewicht en gebouwd met vlamvertragend Samsung/Covestro polycarbonaat. Ondersteunt Bluetooth Mesh en Tuya voor naadloze iOS/Android-besturing. Flikkervrij T-PWM™ dimmen van 0-100% (tot 0,01%) met soft-on en fade-in voor comfortabele verlichting. Geavanceerd thermisch beheer en ingebouwde beveiligingen zorgen voor duurzame, betrouwbare prestaties. Ideaal voor Klasse Ⅰ/Ⅱ/Ⅲ binnenverlichting. Tot 50,000 uur levensduur. 5 jaar garantie (Rubycon-condensator).

  • Ingangsspanning: 100-240Vac / 120-300Vdc
  • Ingangsstroom: 115V AC≤0,2A, 230V AC≤0,1A
  • Uitgangsspanning: 9-42Vdc Max. 50Vdc
  • Uitgangsstroom: 100-400mA
  • Draadloos type: Tuya Bluetooth Mesh
  • Werktemperatuur: ta: -20 ~ 50°C tc: 75°C
  • Afmetingen: L167 x W41 x H32 (mm)
  • Gewicht (G.W): 120g±10g
€ 9,79 € 27,98

  • Control
  • Channels
  • Input Voltage
  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Working Temperature
  • Output Current
  • Output Voltage
  • Output Power
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
Aan winkelmandje toevoegen
Control: BLE
Channels: 1
Input Voltage: DC (120-300 V) , AC (100-240 V)
Input Voltage Domain: AC , DC
Working Temperature: -25°C to 50°C
Output Current: 100-400mA
Output Voltage: 9-42 V
Output Power: 12 W
Dimming Range: 0-100% down to 0.01%
Weight (g): 120g
Dimensions (LxWxH) (mm): L167xW41xH32(mm)
Documenten
SE-12-100-400-W1Y User Manual.pdf
Specifications
Control BLE
Channels 1
Input Voltage DC (120-300 V) · AC (100-240 V)
Input Voltage Domain AC · DC
Working Temperature -25°C to 50°C
Output Current 100-400mA
Output Voltage 9-42 V
Output Power 12 W
Dimming Range 0-100% down to 0.01%
Weight (g) 120g
Dimensions (LxWxH) (mm) L167xW41xH32(mm)
Internal Reference 2860100
Barcode 6971379111731
HS Code 85044095
Downloads
SE-12-100-400-W1Y User Manual Click to view Download

Interne referentie: 2860100
Barcode: 6971379111731
HS Code: 85044095
