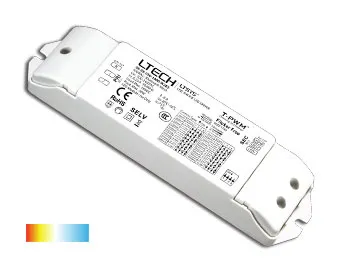

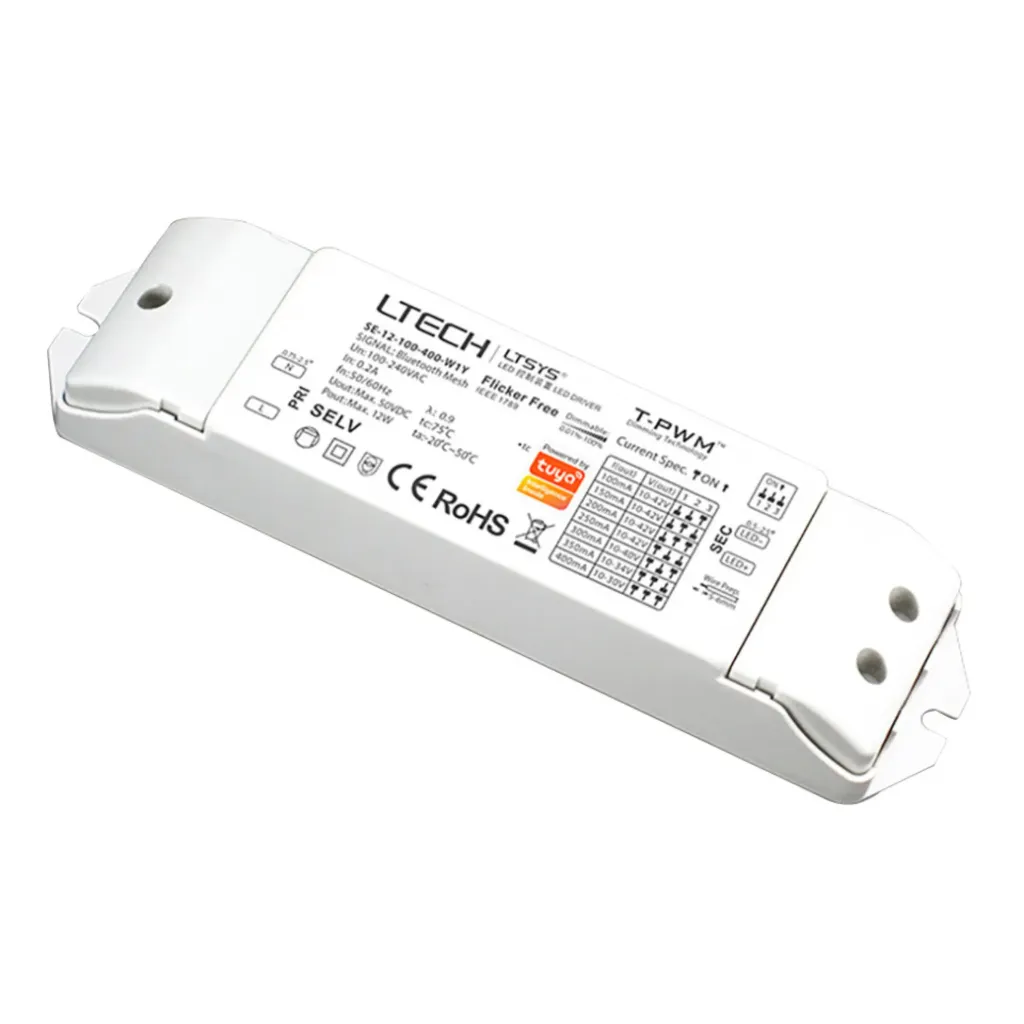

LTECH LTSYS Driver CC TUYA IOT 1CH 100-400mA 12W - SE-12-100-400-W1Y

LTECH LTSYS Driver CC TUYA IOT 1CH 100-400mA 12W

SE-12-100-400-W1Y

Intelligent LED Driver (Constant Current)
Compact, lightweight, and built with flame-resistant Samsung/Covestro polycarbonate. Supports Bluetooth Mesh and Tuya for seamless iOS/Android control. Flicker-free T-PWM™ dimming from 0-100% (down to 0.01%) with soft-on and fade-in for comfortable lighting. Advanced thermal management and built-in protections ensure long-lasting, reliable performance. Ideal for Class Ⅰ/Ⅱ/Ⅲ indoor lighting. Up to 50,000-hour lifespan. 5-year warranty (Rubycon capacitor).

  • Input voltage: 100-240Vac / 120-300Vdc
  • Input current: 115V AC≤0.2A, 230V AC≤0.1A
  • Output voltage: 9-42Vdc Max. 50Vdc
  • Output current: 100-400mA
  • Wireless type: Tuya Bluetooth Mesh
  • Working temperature: ta: -20 ~ 50°C tc: 75°C
  • Dimensions: L167 x W41 x H32 (mm)
  • Weight (G.W): 120g±10g
€ 9.79 € 27.98

  • Control
  • Channels
  • Input Voltage
  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power Range
  • Dimming Range
  • Weight
  • Dimensions
  • Working Temperature
Add to cart
Control: BLE
Channels: 1
Input Voltage: 120-300 V , 100-240 V
Input Voltage Domain: AC , DC
Output Current: 100-400mA
Output Voltage: 9-42 V
Output Power Range: 12 W
Dimming Range: 0-100% down to 0.01%
Weight: 120g
Dimensions: L167xW41xH32(mm)
Working Temperature: -25°C-50°C
Documents
SE-12-100-400-W1Y User Manual.pdf
Specifications
Control BLE
Channels 1
Input Voltage 120-300 V · 100-240 V
Input Voltage Domain AC · DC
Output Current 100-400mA
Output Voltage 9-42 V
Output Power Range 12 W
Dimming Range 0-100% down to 0.01%
Weight 120g
Dimensions L167xW41xH32(mm)
Working Temperature -25°C-50°C
Internal Reference 2860100
Barcode 6971379111731
HS Code 85044095
Downloads
SE-12-100-400-W1Y User Manual Click to view Download

Internal Reference: 2860100
Barcode: 6971379111731
HS Code: 85044095
