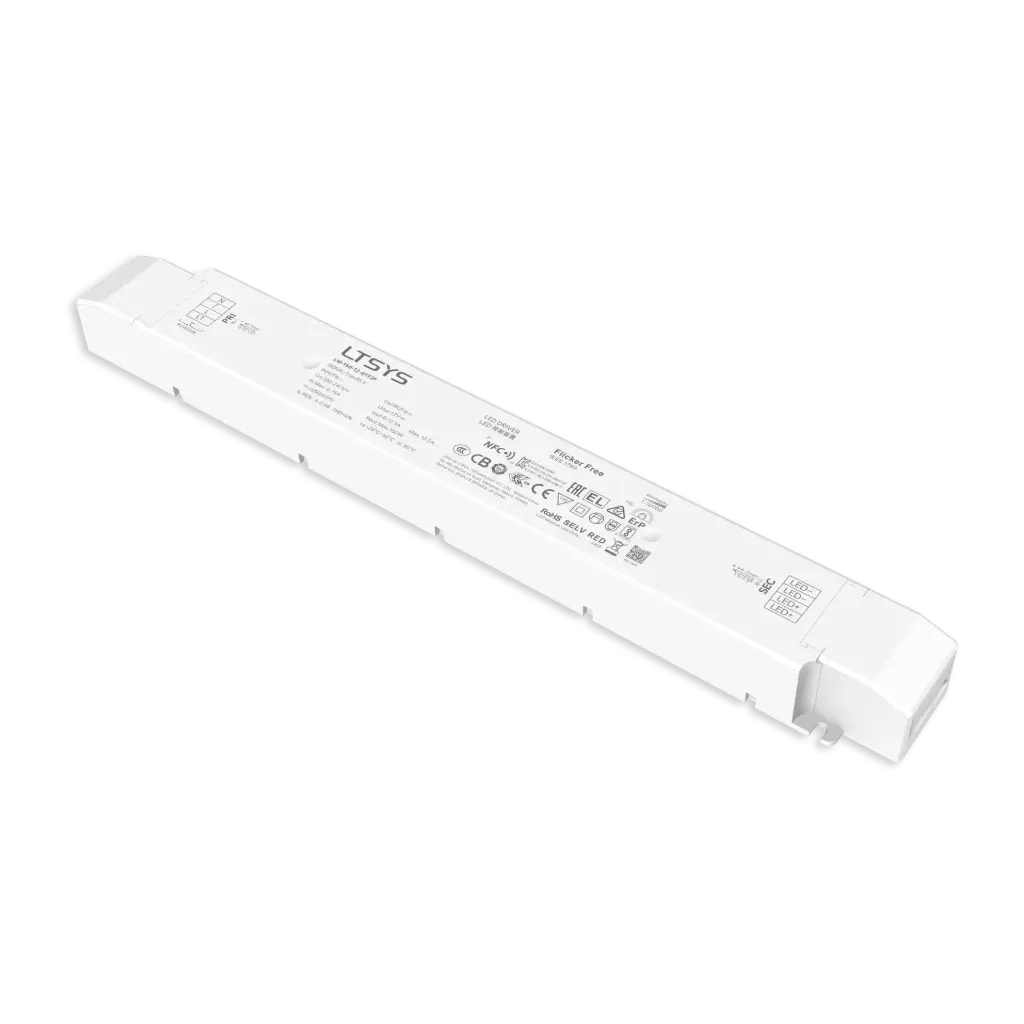

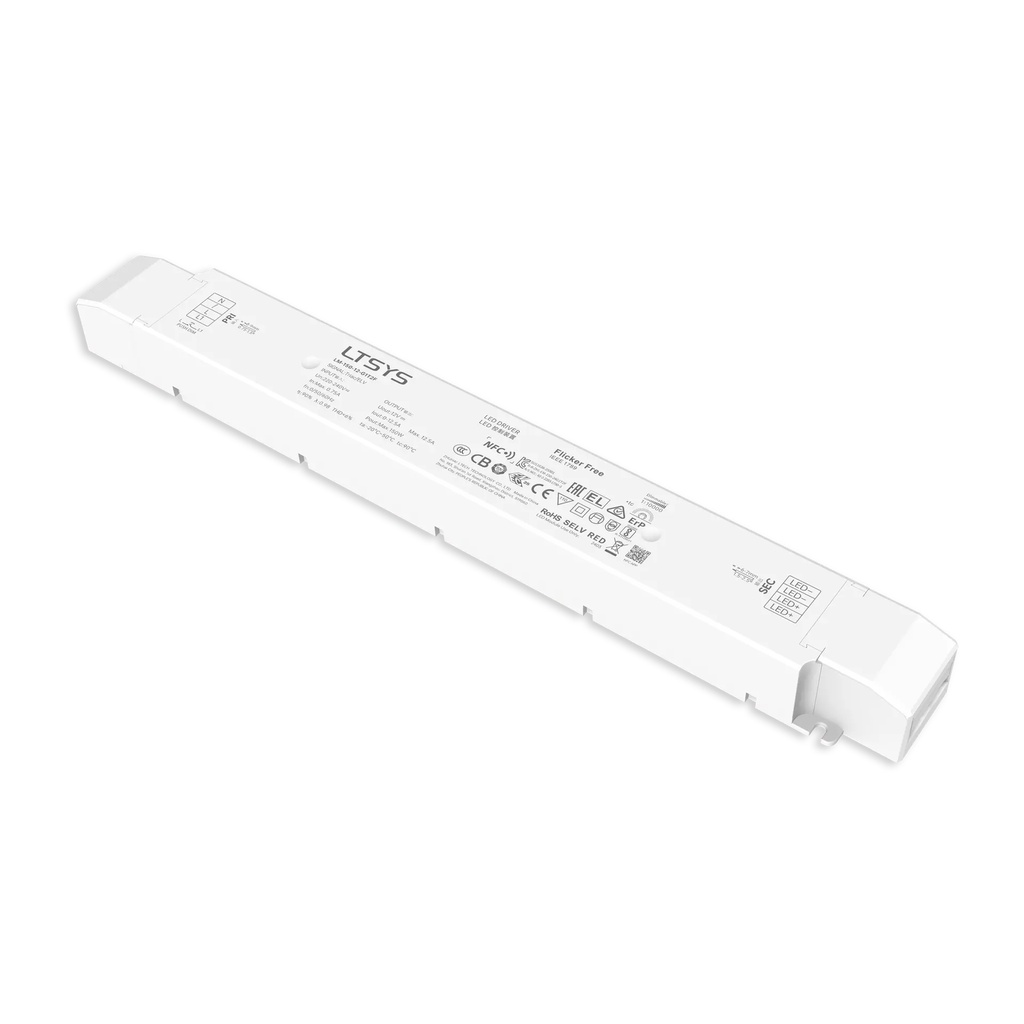

LTECH LTSYS Driver CV TRIAC 1CH 12V 150W NFC

LM-150-12-G1T2F

Intelligente LED Driver (Constante Spanning)
Compacte behuizing van V0 vlamvertragend PC-materiaal, gebruikt door Samsung/Covestro, met verstelbare eindkap. Soft-on en fade-in dimmen, met ondersteuning voor Triac, ELV en Push DIM. Verstelbaar via de mobiele app. Hoogfrequente vrijstelling en thermisch beheer beschermen de levensduur van de driver. Beveiliging tegen oververhitting, overspanning, overbelasting en kortsluiting met automatisch herstel. Geschikt voor Klasse I/II/III binnenarmaturen, tot 50,000 uur levensduur.

€ 65,20 € 65,20

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Current load/ ch
  • Curent load max
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Dimming Range
  • Warranty
Input Voltage Domain: AC
Input Voltage: AC (220-240 V)
Output Voltage: 12 V
Channels: 1
Current load/ ch: 12.5A
Curent load max: 12.5A
Output Power: 150
Certificates: CCC , TUV , CE , KC , RCM , CB , EAC , ENEC , UKCA , RoHS
Control: TRIAC
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Input Voltage Domain AC
Input Voltage AC (220-240 V)
Output Voltage 12 V
Channels 1
Current load/ ch 12.5A
Curent load max 12.5A
Output Power 150
Certificates CCC · TUV · CE · KC · RCM · CB · EAC · ENEC · UKCA · RoHS
Control TRIAC
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2843411
Barcode 6971379114053
HS Code 85044095
Downloads
LM-150-12-G1T2F User Manual Click to view Download

Interne referentie: 2843411
Barcode: 6971379114053
HS Code: 85044095
