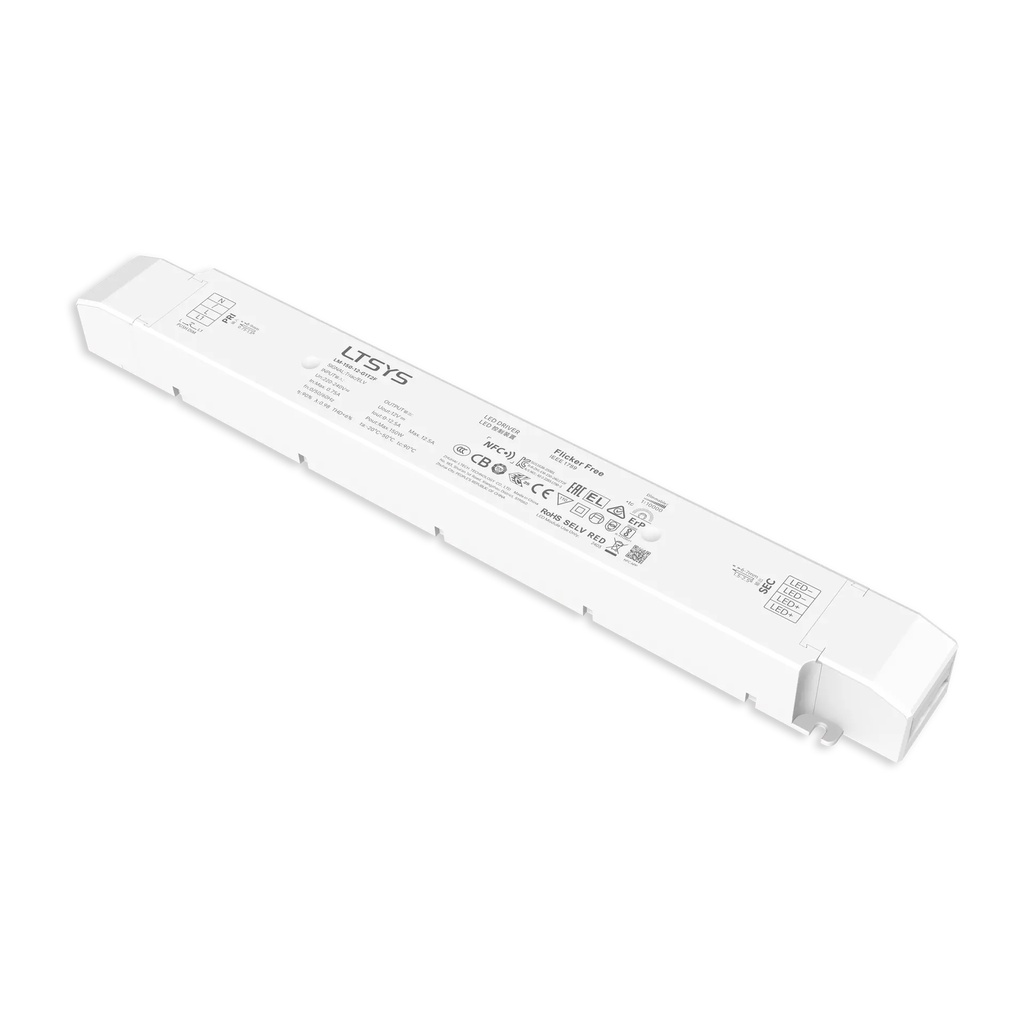

LTECH LTSYS Driver CV TRIAC 1CH 12V 150W NFC LM-150-12-G1T2F


Intelligent LED Driver (Constant Voltage)
It supports leading-edge (TRIAC), trailing-edge (ELV), and Push DIM control, making it suitable for LED strips and other resistor current-limited LED fixtures.

Smooth, flicker-free dimming
The driver provides smooth dimming from 0.1% to 100%, with soft-on and fade-in for comfortable lighting transitions. Its flicker-free performance and adjustable PWM frequency support stable and visually comfortable illumination.

Flexible and protected
Lighting parameters such as voltage, PWM frequency, and power transition time can be adjusted through the mobile app. Built-in thermal management and protection against overheat, overvoltage, overload, and short circuit help ensure reliable operation, with automatic recovery after protection events. It is suitable for Class I/II/III indoor lighting applications and offers up to 50,000 hours of service life.

€ 65.20 excl. VAT € 65.20

Quantity Unit Price
  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Dimming Range
  • Warranty
  • Maximum Output Current
  • Maximum Current
74 in stock
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Input Voltage Domain: AC
Input Voltage: AC (220-240 V)
Output Voltage: 12 V
Channels: 1
Output Power: 150
Certificates: CCC , TUV , CE , KC , RCM , CB , EAC , ENEC , UKCA , RoHS
Control: TRIAC
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Maximum Output Current: 12.5 A
Maximum Current: 12.5 A
User manual
LM-150-12-G1T2F User Manual Click to view Download
Specifications
Internal Reference 2843411
Barcode 6971379114053
HS Code 85044095
General
Input Voltage Domain AC
Input Voltage AC (220-240 V)
Output Voltage 12 V
Channels 1
Output Power 150
Control TRIAC
Dimming Range 0-100% down to 0.1%
Maximum Output Current 12.5 A
Maximum Current 12.5 A
Operating
Certificates CCC · TUV · CE · KC · RCM · CB · EAC · ENEC · UKCA · RoHS
Warranty 5 Years

Internal Reference: 2843411
Barcode: 6971379114053
HS Code: 85044095
