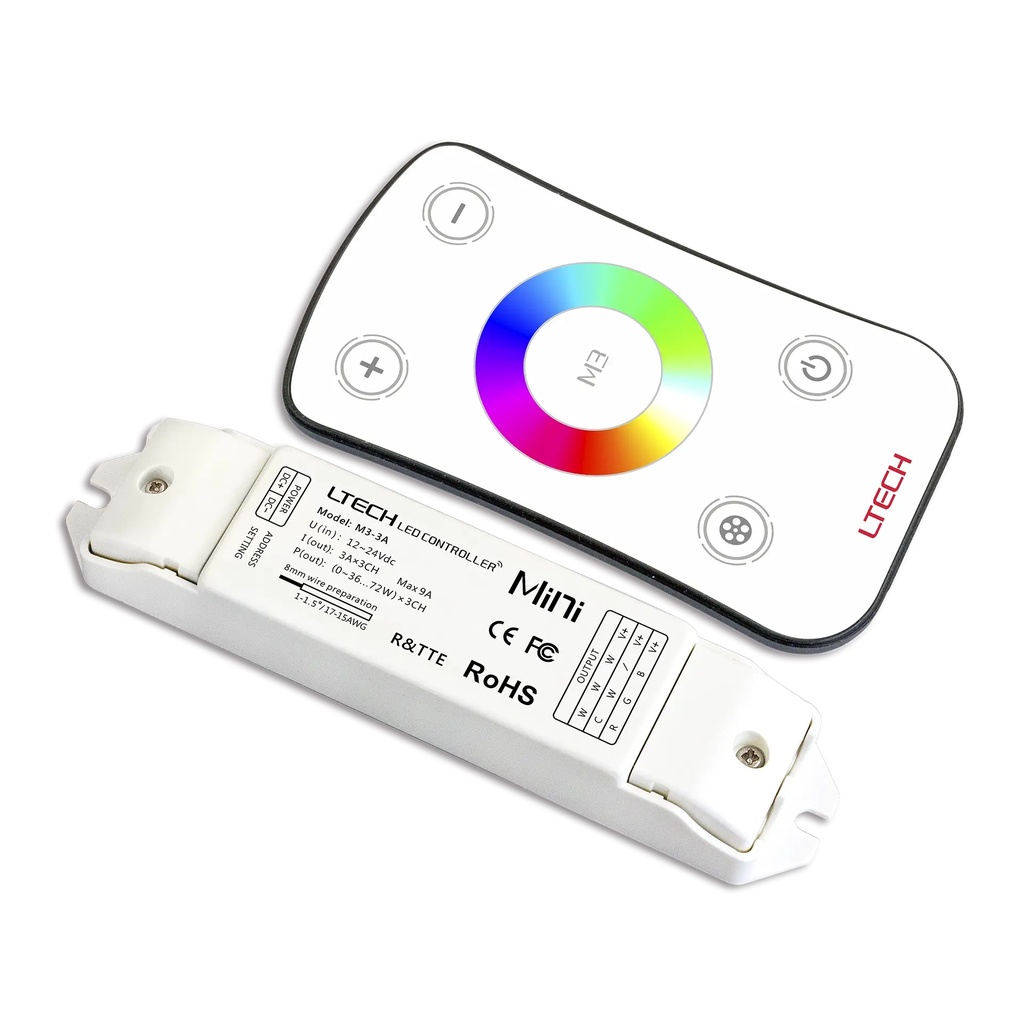

LTECH Mini RF remote + receiver CV 3x3A RGB

M3+M3-3A

Ontvangermodel: M3-3A

Ingangsvoeding: 12~24Vdc
Belastingsstroom: 3A × 3 kanalen, maximaal 9A
Uitgangsvermogen: (0~36W...72W) × 3CH
Werktemperatuur: -30℃~55℃
Afmetingen: L135 × B30 × H20 (mm)
Gewicht (N.W.): 47g

Afstandsbedieningsmodel: M3

Werkspanning: 3V (batterij CR2032)
Werkfrequentie: 433,92MHz
Werktemperatuur: -30°C~55°C
Afmetingen: L104 x B58 x H9 (mm)
Gewicht (N.W.): 42g

€ 30,98

Aan winkelmandje toevoegen

Channels: 3

Input Voltage: DC (12-24 V)

Input Voltage Domain: DC

Working Temperature: -30°C to 55°C

Output Power: 72 W

Current load/ ch: 3A

Curent load max: 9A

Weight (g): 135g , 47g

Dimensions (LxWxH) (mm): L135xW30xH20(mm)

Documenten

M3+M3-3A User Manual.pdf

Specifications

Channels 3

Input Voltage DC (12-24 V)

Input Voltage Domain DC

Working Temperature -30°C to 55°C

Output Power 72 W

Current load/ ch 3A

Curent load max 9A

Weight (g) 135g · 47g

Dimensions (LxWxH) (mm) L135xW30xH20(mm)

Internal Reference 2266300

Barcode 6971379112066

HS Code 85044095

Downloads

M3+M3-3A User Manual Click to view Download
