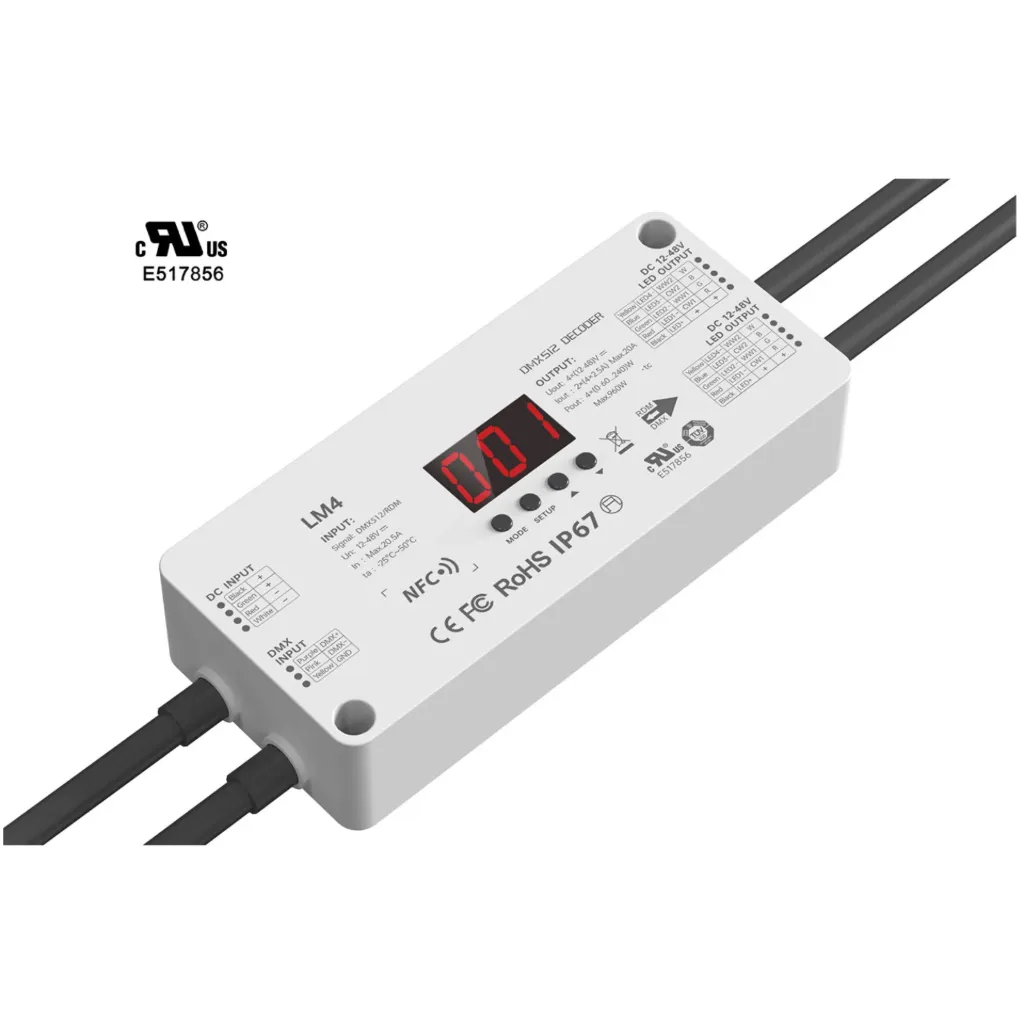

LTECH CV DMX/RDM 4CH NFC IP67

LM4

The LM4 is a high-performance constant-voltage LED controller supporting standard DMX and RDM protocols, with four output channels delivering up to 20A and a total power of 960W for stable, demanding lighting applications. It offers smooth dimming, tunable white, and full RGB/RGBW control, operating in both DMX decoder and master modes-the decoder mode lets you adjust DMX address, resolution, PWM frequency, and fade settings, while the master mode includes 33 built-in effects with adjustable speed and brightness. Configuration is available via the NFC Lighting app, RDM-WIFI app, or onboard buttons. With an IP67 waterproof rating, the LM4 is reliable for both indoor and outdoor use, even in humid conditions.

€ 57.87 € 57.87

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • IP Rating
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Version
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
Control: DMX
Channels: 4
Input Voltage: DC (12-48 V)
Input Voltage Domain: DC
Working Temperature: -20°C to 50°C
IP Rating: IP67
Output Voltage: 12-48 V
Output Power: 960 W
Current load/ ch: 2.5A
Curent load max: 20A
Version: DMX/RDM
Weight (g): 670g
Dimensions (LxWxH) (mm): L164xW70xH36(mm)
Package Size: L230xW95xH47(mm)
Specifications
Control DMX
Channels 4
Input Voltage DC (12-48 V)
Input Voltage Domain DC
Working Temperature -20°C to 50°C
IP Rating IP67
Output Voltage 12-48 V
Output Power 960 W
Current load/ ch 2.5A
Curent load max 20A
Version DMX/RDM
Weight (g) 670g
Dimensions (LxWxH) (mm) L164xW70xH36(mm)
Package Size L230xW95xH47(mm)
Internal Reference 2264141
Barcode 6971379113322
HS Code 85044095
Downloads
LM4 User Manual Click to view Download

Internal Reference: 2264141
Barcode: 6971379113322
HS Code: 85044095
