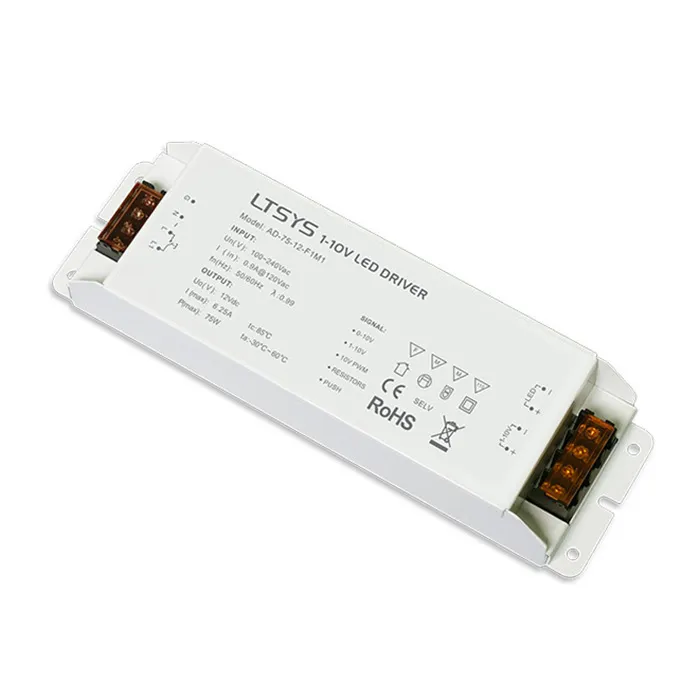

LTECH DALI LED Driver 0-10V 75W 12V - AD-75-12-F1M1

LTECH DALI LED Driver 0-10V 75W 12V

AD-75-12-F1M1

This LED driver supports 0-10V (1-10V, 10V PWM, RX) and Push DIM control with automatic signal recognition for easy integration. A built-in SCM allows customization of the dimming curve and power-on smoothing time. It delivers flicker-free dimming from 0.1% to 100% and includes automatic protection against overheating, overvoltage, overload, and short circuits. Compliant with Safety Extra Low Voltage standards, it is suitable for indoor lighting applications in zones I, II, and III.

  • Output Voltage: 12Vdc
  • Output Current: Max. 6.25A
  • Output Power: Max. 75W
  • Input Voltage: 100-240Vac
  • Working Temperature: ta: -30~60°C tc: 85°C
  • Dimensions: L204 x W62 x H34mm
  • Weight (G.W.): 490g
€ 29.87 € 85.33

  • Control
  • Control
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Current
Add to cart
Control: 0-10V , Push dim
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
Working Temperature: -30°C to 60°C
Output Voltage: 12 V
Output Power: 75 W
Dimming Range: 0-100% down to 0.1%
Weight (g): 490g
Dimensions (LxWxH) (mm): L204xW62xH34(mm)
Package Size: L206xW64xH39(mm)
Maximum Current: 6.25 A
Documents
AD-75-12-F1M1 User Manual.pdf
Specifications
Control 0-10V · Push dim
Input Voltage AC (100-240 V)
Input Voltage Domain AC
Working Temperature -30°C to 60°C
Output Voltage 12 V
Output Power 75 W
Dimming Range 0-100% down to 0.1%
Weight (g) 490g
Dimensions (LxWxH) (mm) L204xW62xH34(mm)
Package Size L206xW64xH39(mm)
Maximum Current 6.25 A
Internal Reference 2830300
Barcode 8718969965545
HS Code 85044095
Downloads
AD-75-12-F1M1 User Manual Click to view Download

Internal Reference: 2830300
Barcode: 8718969965545
HS Code: 85044095
