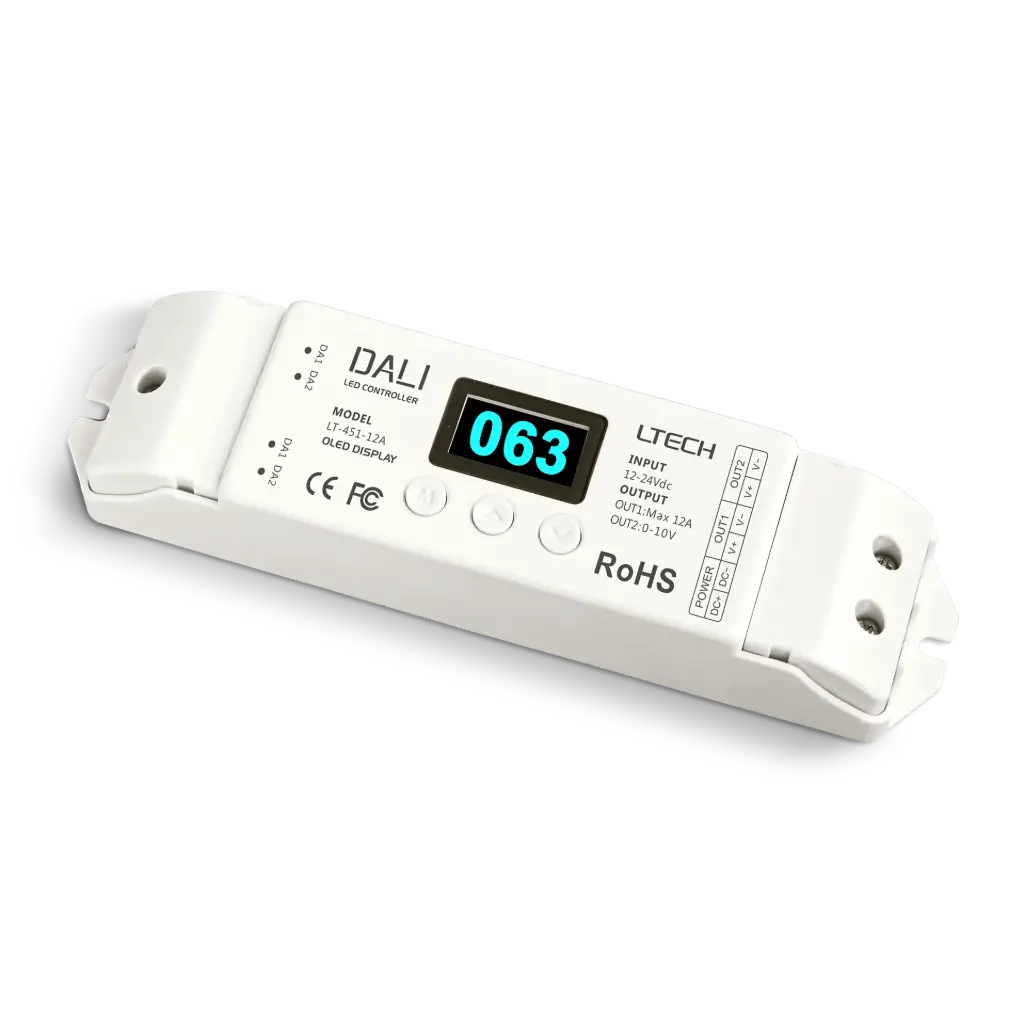

LTECH DALI LED driver CV 1x12A

Name: LTECH DALI LED driver CV 1x12A - LT-451-12A
Brand: LTECH
SKU: 2268700
Price: 74.29 EUR
Availability: InStock

LT-451-12A

DALI LED Dimming Driver

This indoor LED dimmer features PWM digital dimming with a standard DALI logarithmic curve and an OLED display for auto-assigned or manual addressing. The unit includes protection against short-circuit, overheat, no-load, and reverse connection. Housed in durable protective plastic and compliant with IEC62386 standards, Suitable for indoor environments.

€ 74.29

Add to cart

Control: DALI

Channels: 1

Input Voltage: DC (12-24 V)

Input Voltage Domain: DC

Working Temperature: -30°C to 55°C

Output Voltage: 12-24 V

Output Power: 288

Dimming Range: 0-100%

Dimensions (LxWxH) (mm): L175×W44×H30(mm)

Package Size: L178×W48×H33(mm)

Maximum Output Current: 12 A

Maximum Current: 12 A

Documents

LT-451-12A User Manual.pdf

Specifications

Control DALI

Channels 1

Input Voltage DC (12-24 V)

Input Voltage Domain DC

Working Temperature -30°C to 55°C

Output Voltage 12-24 V

Output Power 288

Dimming Range 0-100%

Dimensions (LxWxH) (mm) L175×W44×H30(mm)

Package Size L178×W48×H33(mm)

Maximum Output Current 12 A

Maximum Current 12 A

Internal Reference 2268700

Barcode 6971379111021

HS Code 85044095
