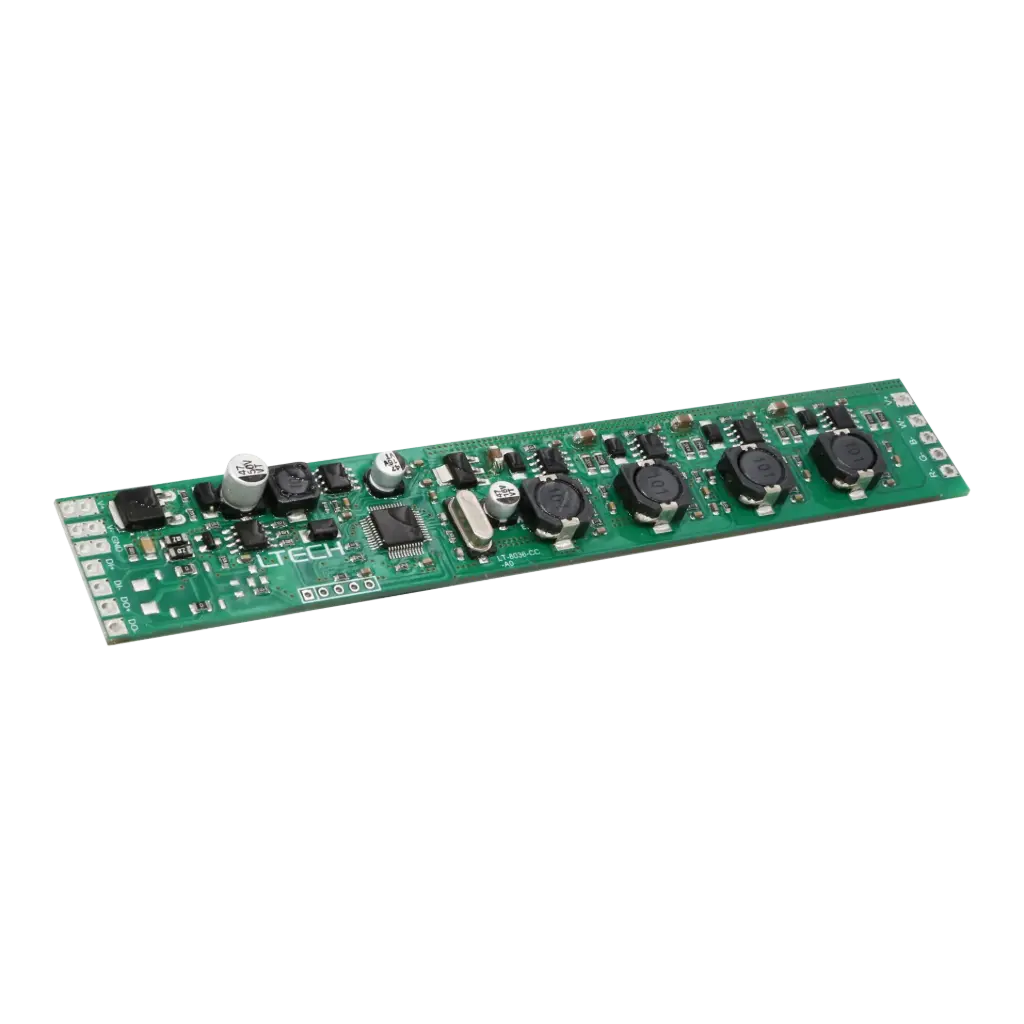

The LT-8036-1000 is a PCB CC driver designed for high-power DMX512 wall washers and project lights, compatible with single-color, tunable white, RGB, and RGBW LEDs. It supports long-range RDM management without coding lines and can be configured via the WiFi-RDM01 app for DMX address, dimming range, mode, and firmware updates. Offline sync mode allows connected DMX devices to play preset modes automatically when no DMX signal is present, making it ideal for small control systems.
• Input Voltage: 12~36V DC
• Output Voltage: 7.5~33V DC
• Current Load: 1000mA (Max) x 4CH
• Output Power: (0~7.5... 33W) x 4CH Max 132W
• Dimming Range: 0-100%
• Working Temperature: -30°C~65°C
• Dimensions: L155 x W26 x H10 (mm)
• Weight: 30g
