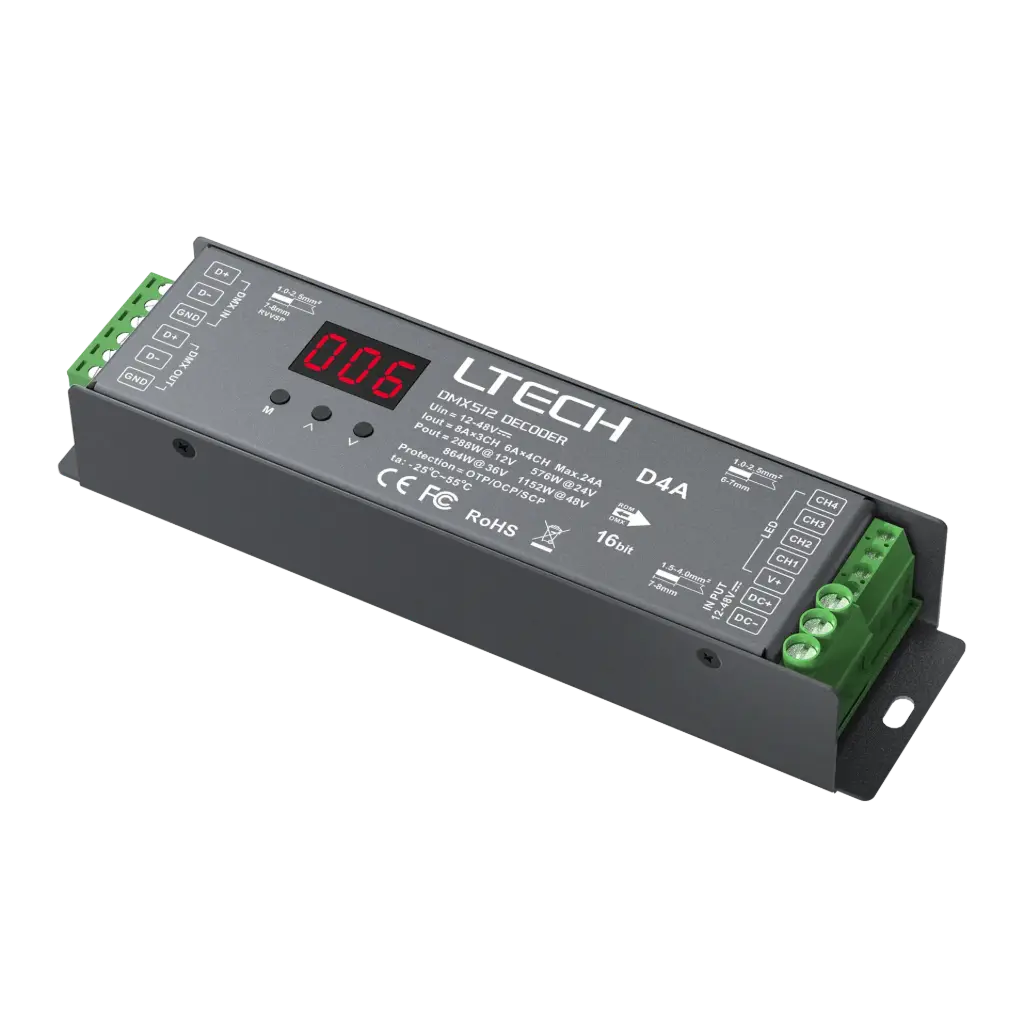

LTECH DMX LED driver CV 3x8A / 4x6A screw terminal D4A


Constant Voltage 4 Channel DMX/RDM Decoder
This DMX/RDM controller features standard interfaces, with address setting via digital display and buttons. It supports RDM protocol for browsing parameters and changing DMX addresses through an RDM master or mobile app. Switchable between DMX and custom modes, it offers 1-4 DMX channel outputs, standard or smooth dimming, 16-bit or 8-bit gray scale, 10 lighting effects with 8 speed levels, and 255 brightness levels. Adjustable PWM frequency, screen timeout, and automatic protection against short circuit, over-temperature, and over-current enhance reliability.

€ 29.23 excl. VAT € 29.23

Quantity Unit Price
  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Channels
  • Maximum Output Current
  • Maximum Current
  • Output Power
  • Control
  • Dimensions (LxWxH) (mm)
  • Weight (g)
  • Working Temperature
  • Dimming Range
  • Package Size
In stock
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Input Voltage Domain: DC
Input Voltage: DC (12-48 V)
Output Voltage: 12-48 V
Channels: 3 , 4
Maximum Output Current: 6Ax4CH/8Ax3CH
Maximum Current: 24 A
Output Power: 1152 W
Control: DMX
Dimensions (LxWxH) (mm): L175×W46×H30(mm)
Weight (g): 325g
Working Temperature: -25°C to 55°C
Dimming Range: 0-100%
Package Size: L187×W52×H36(mm)
User manual
D4A User Manual Click to view Download
Specifications
Internal Reference 2285401
Barcode 6971379110208
HS Code 85044095
General
Input Voltage Domain DC
Input Voltage DC (12-48 V)
Output Voltage 12-48 V
Channels 3 · 4
Maximum Output Current 6Ax4CH/8Ax3CH
Maximum Current 24 A
Output Power 1152 W
Control DMX
Dimming Range 0-100%
Operating
Working Temperature -25°C to 55°C
Physical
Dimensions (LxWxH) (mm) L175×W46×H30(mm)
Weight (g) 325g
Package Size L187×W52×H36(mm)

Internal Reference: 2285401
Barcode: 6971379110208
HS Code: 85044095
