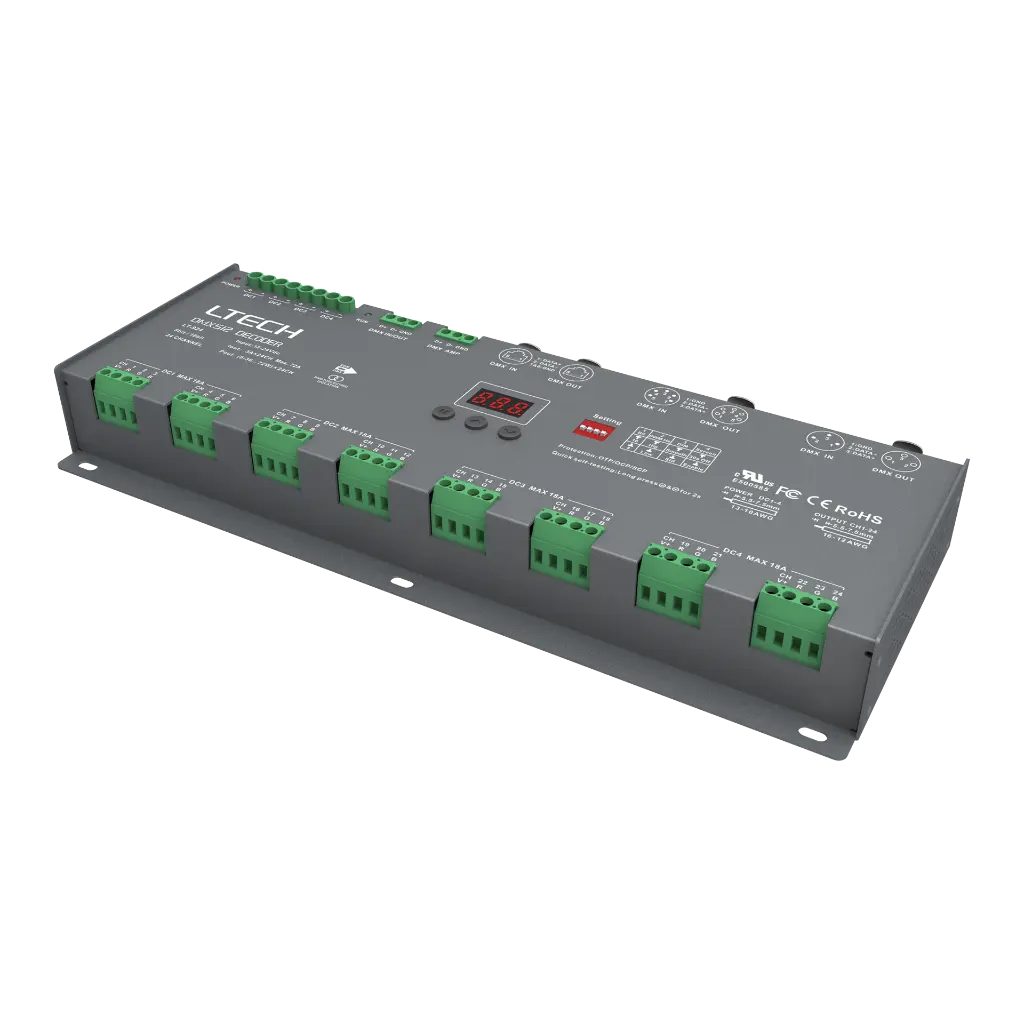

LTECH DMX/RDM LED driver CV 24x3A LT-924


High-power 24-channel DMX LED controller with up to 1728W output. Features easy operation via digital display and touch buttons. Supports 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification for improved transmission and reduced interference. Includes RDM remote management for parameter settings, DMX addressing, and device recognition. Offers short circuit, overheat, and overcurrent protection with fault warnings. Supports firmware upgrades, fast self-testing, and high/low PWM frequency options. Available with 8-bit or 16-bit dimming levels.

  • Input voltage: 12~24V DC
  • Current load: 3A × 24CH Max. 72A
  • Photoelectric Isolation: Yes
  • Working Temperature: -30°C~65°C
  • Dimensions: L300 x W122 x H39 (mm)
  • Weight: 1180g
€ 179.36 excl. VAT € 179.36

Quantity Unit Price
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Output Current
  • Maximum Current
Out of stock
Limited Stock, Contact Sales
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Control: DMX
Channels: 24
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 1728 W
Version: DMX/RDM
Certificates: UL
Weight (g): 1180g
Dimensions (LxWxH) (mm): L300×W122×H39(mm)
Package Size: L313×W127×H41(mm)
Maximum Output Current: 3 A
Maximum Current: 72 A
User manual
LT-924 User Manual Click to view Download
Specifications
Internal Reference 2279210
Barcode 6971379111144
HS Code 85044095
General
Control DMX
Channels 24
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Output Voltage 12-24 V
Output Power 1728 W
Version DMX/RDM
Maximum Output Current 3 A
Maximum Current 72 A
Operating
Working Temperature -30°C to 65°C
Certificates UL
Physical
Weight (g) 1180g
Dimensions (LxWxH) (mm) L300×W122×H39(mm)
Package Size L313×W127×H41(mm)

Internal Reference: 2279210
Barcode: 6971379111144
HS Code: 85044095
