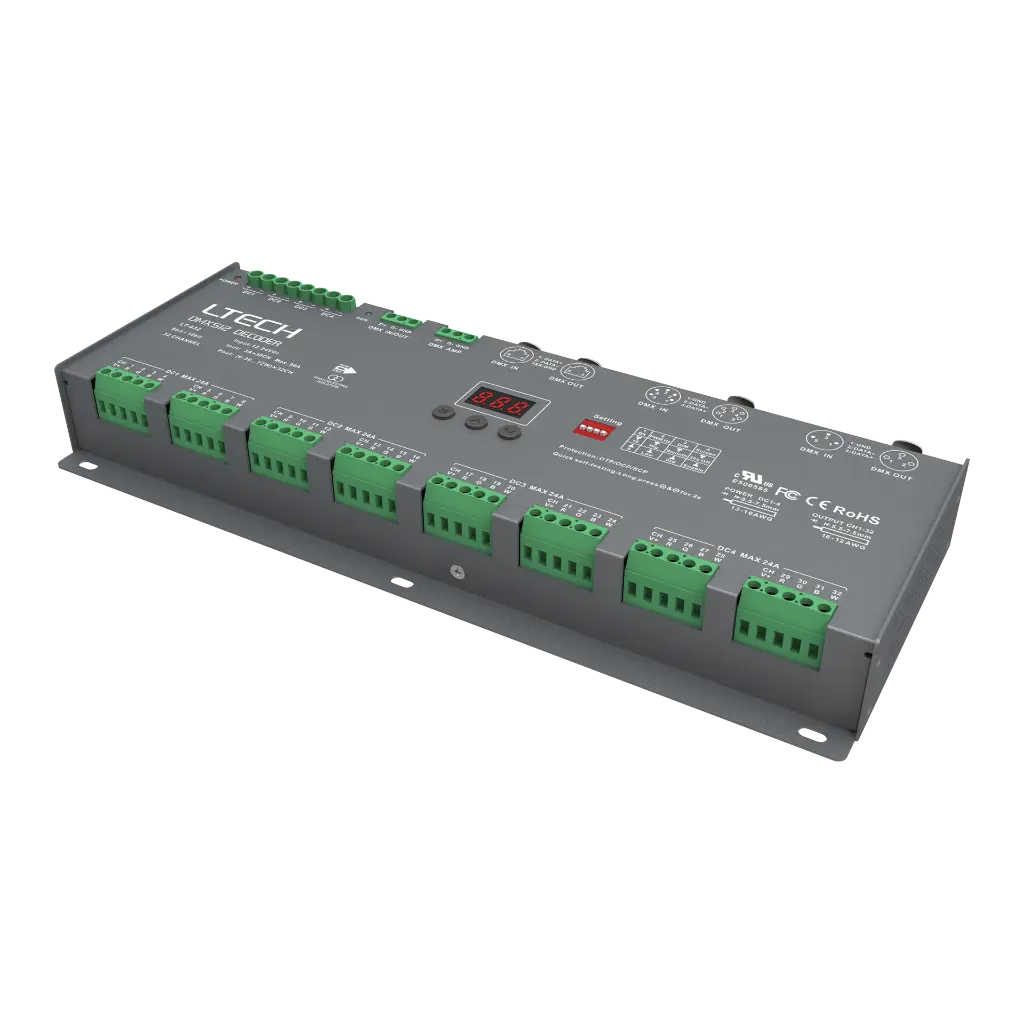

LTECH DMX/RDM LED driver CV 32x3A
LT-932
High-power multiple channels application, 32 channels output and up to 2304W output power. Features easy operation with a digital display and touch buttons. Includes 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification for improved transmission and anti-interference. Supports RDM protocol for remote management via RDM master console, enabling parameter browsing, DMX address setting, and device recognition. Offers protection against short circuit, overheat, and over current, with fault warnings. Firmware upgradeable, includes fast self-testing, high/low PWM frequency options, and supports 16bit/8bit grey levels.
- Input voltage: 12~24Vdc
- Current load: 3A × 32CH Max. 96A
- Photoelectric Isolation: Yes
- Working Temperature: -30°C~65°C
- Dimensions: L300 x W122 x H39 (mm)
- Weight: 1180g
Specifications
Control
DMX
Channels
32
Input Voltage
DC (12-24 V)
Input Voltage Domain
DC
Working Temperature
-30°C to 65°C
Output Voltage
12-24 V
Output Power
2304 W
Version
DMX/RDM
Certificates
UL
Weight (g)
1180g
Dimensions (LxWxH) (mm)
L300×W122×H39(mm)
Package Size
L313×W127×H41(mm)
Maximum Output Current
3 A
Maximum Current
96 A
Internal Reference
2279310
Barcode
6971379111137
HS Code
85044095
