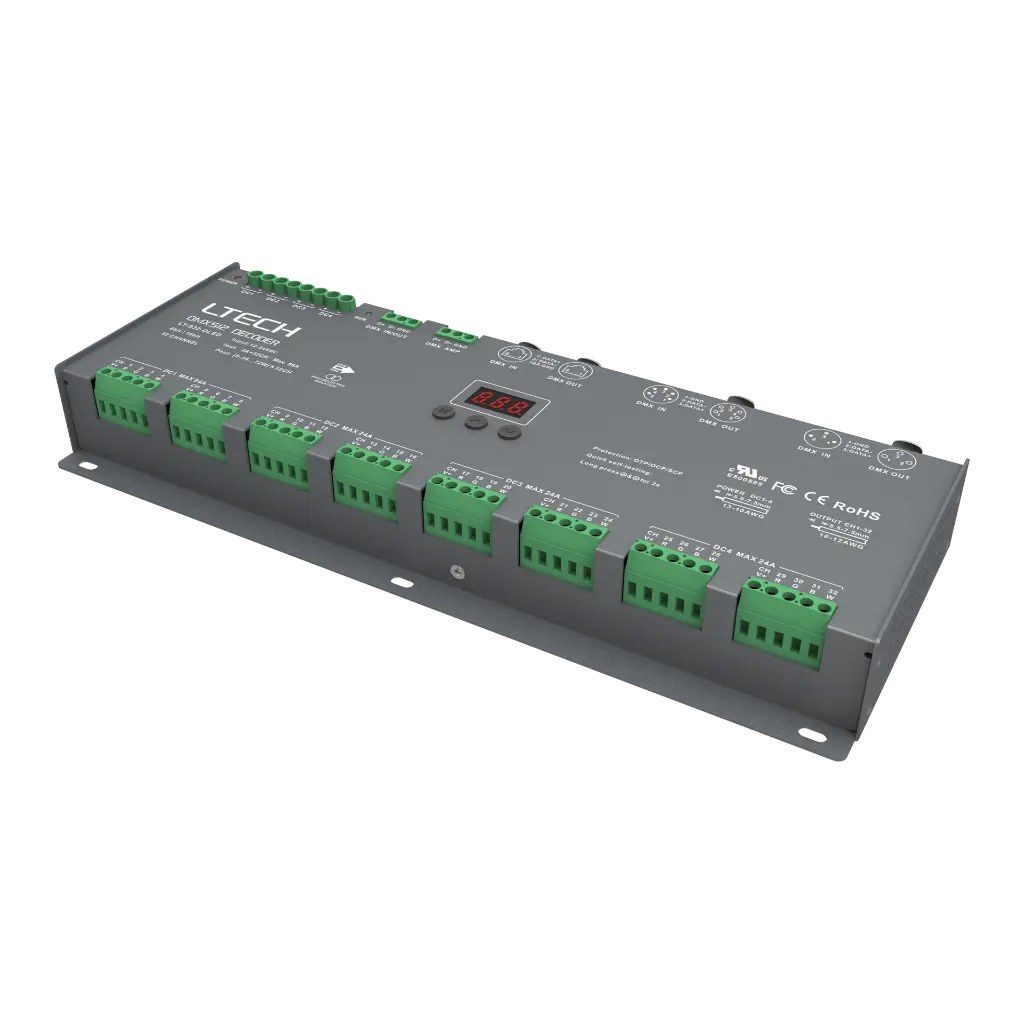

LTECH DMX/RDM LED driver CV 32x3A OLED LT-932-OLED


High-power LED controller with 32 output channels and up to 2304W total output. Features easy operation with a digital display and touch buttons. Support DIM, CT, RGB, RGBW control modes. Includes 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification for improved transmission and anti-interference. Supports RDM protocol for remote management via master console, enabling parameter browsing, DMX address setting, and device recognition. Offers protection against short circuit, overheat, and over current, with fault warnings. Firmware upgradeable, includes fast self-testing, and supports 16bit/8bit grey levels.

€ 205.64 excl. VAT € 205.64

Quantity Unit Price
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Output Current
  • Maximum Current
In stock
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Control: DMX
Channels: 32
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 2304 W
Version: DMX/RDM
Certificates: UL
Weight (g): 1050g
Dimensions (LxWxH) (mm): L300×W122×H39(mm)
Package Size: L309×W127×H41(mm)
Maximum Output Current: 3 A
Maximum Current: 96 A
User manual
LT-932-OLED User Manual Click to view Download
Specifications
Internal Reference 2279300
Barcode 6971379111076
HS Code 85044095
General
Control DMX
Channels 32
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Output Voltage 12-24 V
Output Power 2304 W
Version DMX/RDM
Maximum Output Current 3 A
Maximum Current 96 A
Operating
Working Temperature -30°C to 65°C
Certificates UL
Physical
Weight (g) 1050g
Dimensions (LxWxH) (mm) L300×W122×H39(mm)
Package Size L309×W127×H41(mm)

Internal Reference: 2279300
Barcode: 6971379111076
HS Code: 85044095
