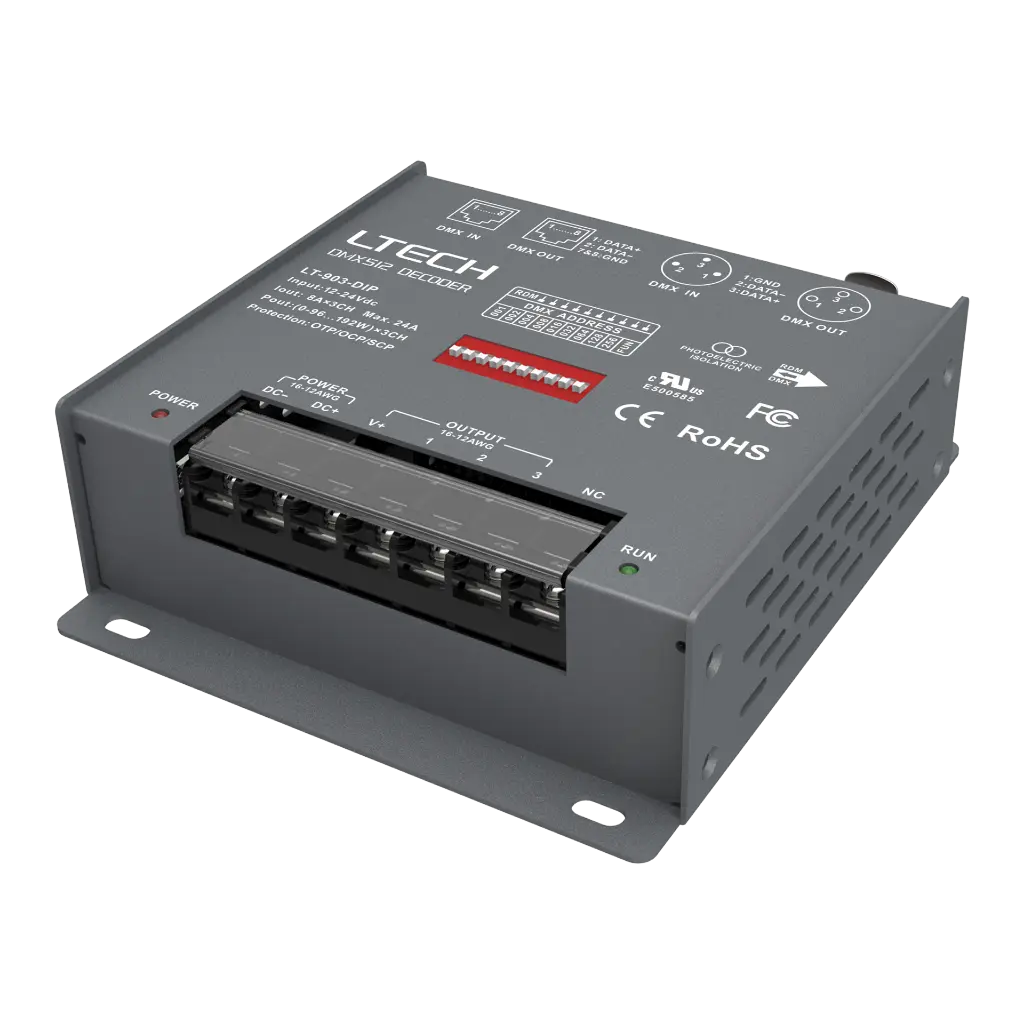

LTECH DMX/RDM LED driver CV 3x8A DIP Switch LT-903-DIP


This 3-channel DMX/RDM decoder provides up to 8A per channel (576W total) and features 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for reliable signal transmission and reduced interference. It supports RDM remote management, enabling parameter browsing, DMX address setup, and equipment recognition via an RDM master console.

  • Input Voltage: 12-24Vdc
  • Current Load: 8A x 3CH Max. 24A
  • Photoelectric Isolation: Yes
  • Working Temperature: -30°C~65°C
  • Dimensions: L122 x W110 x H37 (mm)
  • Weight: 550g
€ 36.36 € 36.36

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Output Current
  • Maximum Current
Add to cart
Control: DMX
Channels: 3
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 576
Version: DMX/RDM
Certificates: UL
Weight (g): 550g
Dimensions (LxWxH) (mm): L122×W110×H37(mm)
Package Size: L127×W123×H41(mm)
Maximum Output Current: 8 A
Maximum Current: 24 A
Documents
LT-903-DIP User Manual.pdf
Specifications
Control DMX
Channels 3
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Working Temperature -30°C to 65°C
Output Voltage 12-24 V
Output Power 576
Version DMX/RDM
Certificates UL
Weight (g) 550g
Dimensions (LxWxH) (mm) L122×W110×H37(mm)
Package Size L127×W123×H41(mm)
Maximum Output Current 8 A
Maximum Current 24 A
Internal Reference 2279121
Barcode 6971379116088
HS Code 85044095
Downloads
LT-903-DIP User Manual Click to view Download

Internal Reference: 2279121
Barcode: 6971379116088
HS Code: 85044095
