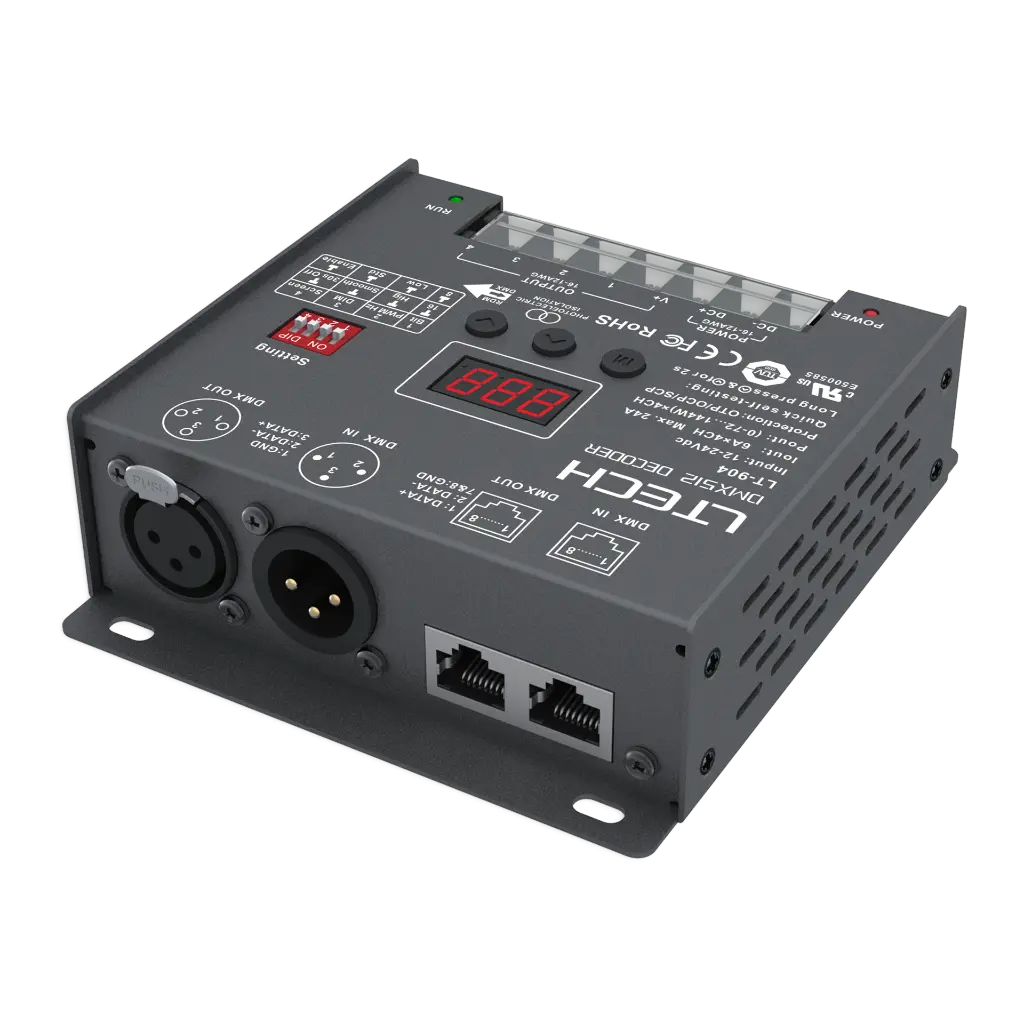

LTECH DMX/RDM LED driver CV 4x6A LT-904


Features four output channels with up to 6A per channel and a total output power of 576W. It offers easy operation via a digital display with touch buttons and supports 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for stable, interference-resistant signal transmission. With RDM remote management, users can set DMX addresses, browse parameters, and identify devices through an RDM master console. Additional features include fast self-testing, selectable high or low PWM frequency, 8-bit or 16-bit grayscale options, and built-in protection against short circuit, overcurrent, and overheating with fault warnings for reliable operation.

  • Input Voltage: 12-24Vdc
  • Current Load: 6A x 4CH Max. 24A
  • Photoelectric Isolation: Yes
  • Working Temperature: -30°C~65°C
  • Dimensions: L122 x W110 x H37 (mm)
  • Weight: 550g
€ 42.37 excl. VAT € 42.37

Quantity Unit Price
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Output Current
  • Maximum Current
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Control: DMX
Channels: 4
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 576
Version: DMX/RDM
Certificates: UL
Weight (g): 550g
Dimensions (LxWxH) (mm): L122×W110×H37(mm)
Package Size: L127×W123×H41(mm)
Maximum Output Current: 6 A
Maximum Current: 24 A
User manual
LT-904 User Manual Click to view Download
Specifications
Internal Reference 2279130
Barcode 6971379115586
HS Code 85044095
General
Control DMX
Channels 4
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Output Voltage 12-24 V
Output Power 576
Version DMX/RDM
Maximum Output Current 6 A
Maximum Current 24 A
Operating
Working Temperature -30°C to 65°C
Certificates UL
Physical
Weight (g) 550g
Dimensions (LxWxH) (mm) L122×W110×H37(mm)
Package Size L127×W123×H41(mm)

Internal Reference: 2279130
Barcode: 6971379115586
HS Code: 85044095
