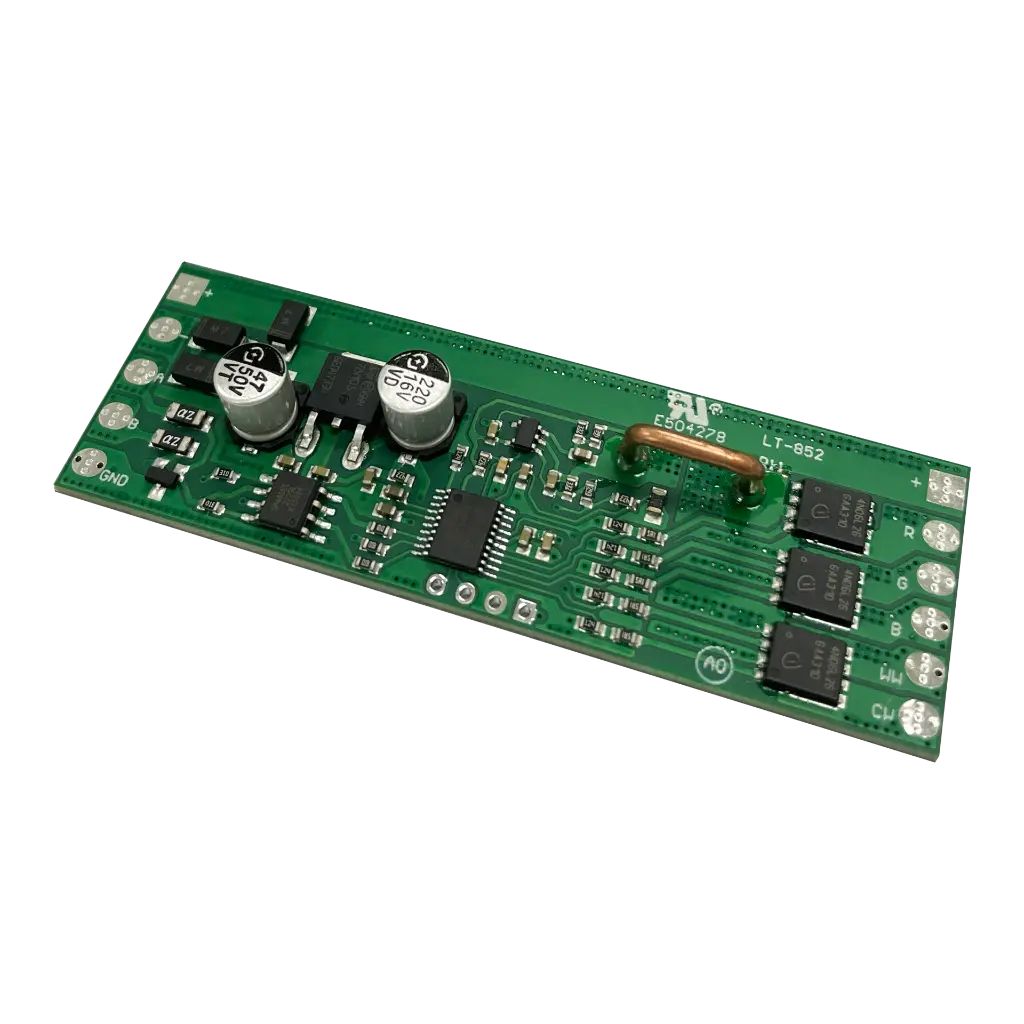

LTECH DMX/RDM LED driver PCB CV 5x2A LT-852


5 Channel DMX/RDM Decoder (Constant Voltage)
This ultra-compact DMX/RDM controller supports flexible parameter setup and smooth, flicker-free dimming. It controls DIM, CT, RGB, RGBW, and RGBCW LED lamps through a 5-channel output interface. Built with over-temperature and reverse-polarity protection, it features self-recovery and a bare board design for easy integration into various lighting applications.

€ 17.12 excl. VAT € 17.12

Quantity Unit Price
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Version
  • Maximum Output Current
  • Maximum Current
In stock
Delivery to Rest of world expected in 5+ working days
Order before 15:00 on working days: shipped the same day.
Out of stock
Control: DMX
Channels: 5
Input Voltage: DC (5-24 V)
Input Voltage Domain: DC
Output Voltage: 5-24 V
Output Power: 240 W
Version: DMX/RDM
Maximum Output Current: 2 A
Maximum Current: 10 A
User manual
LT-852 User Manual Click to view Download
Specifications
Internal Reference 2278111
Barcode 6971379116064
HS Code 85044095
General
Control DMX
Channels 5
Input Voltage DC (5-24 V)
Input Voltage Domain DC
Output Voltage 5-24 V
Output Power 240 W
Version DMX/RDM
Maximum Output Current 2 A
Maximum Current 10 A

Internal Reference: 2278111
Barcode: 6971379116064
HS Code: 85044095
