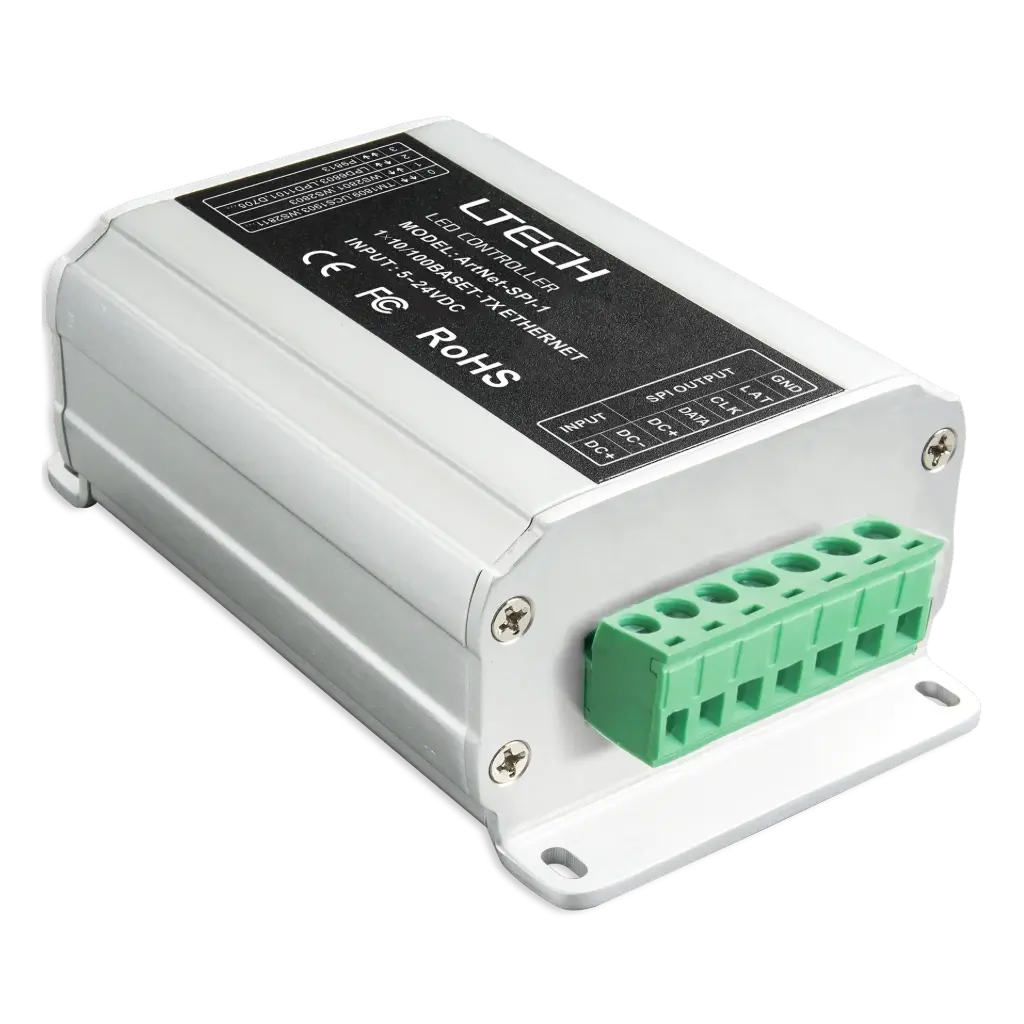

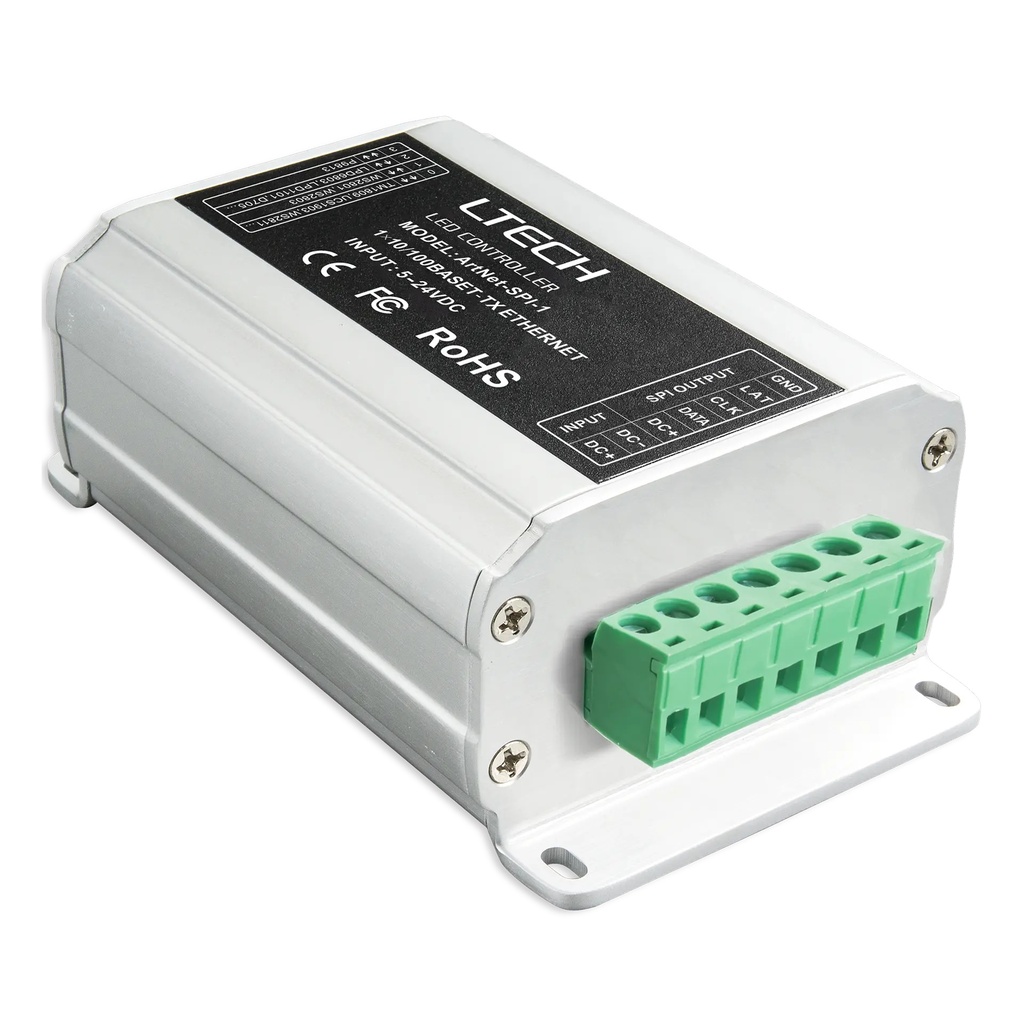

LTECH ArtNet-SPI converter 1 port
Artnet-SPI-1
ArtNet-SPI Converter
The converter is the Ethernet Control System based on the ArtNet protocol, used to convert the ArtNet network data into SPI (TTL) digital signals. Powered by a high-speed processor, it provides stable and reliable performance with an RJ45 network interface and green terminal output interface. Compatible with all ArtNet-supported lighting software, it is ideal for LED dot matrix displays and stage lighting and works with a wide range of LED driver ICs.
- Power Input: 12Vdc (with a power adaptor)
- Current: 30mA@12Vdc
- IP: Indoor use only
- Working Temperature: -30°C~65°C
- Dimensions: L120 x W73 x W45 (mm)
- Weight: 360g
€ 184.46
excl. VAT
€ 184.46
Partner?
Log in
and see your partner price and volume discounts right away.
Specifications
Internal Reference
2291400
Barcode
6971379111052
HS Code
85371098
General
Control
SPI
Channels
1
Input Voltage
DC (12 V)
Input Voltage Domain
DC
Operating
Working Temperature
-30°C to 65°C
Physical
Weight (g)
360g
Dimensions (LxWxH) (mm)
L120xW73xW45(mm)
Package Size
L198×W78×H50(mm)
