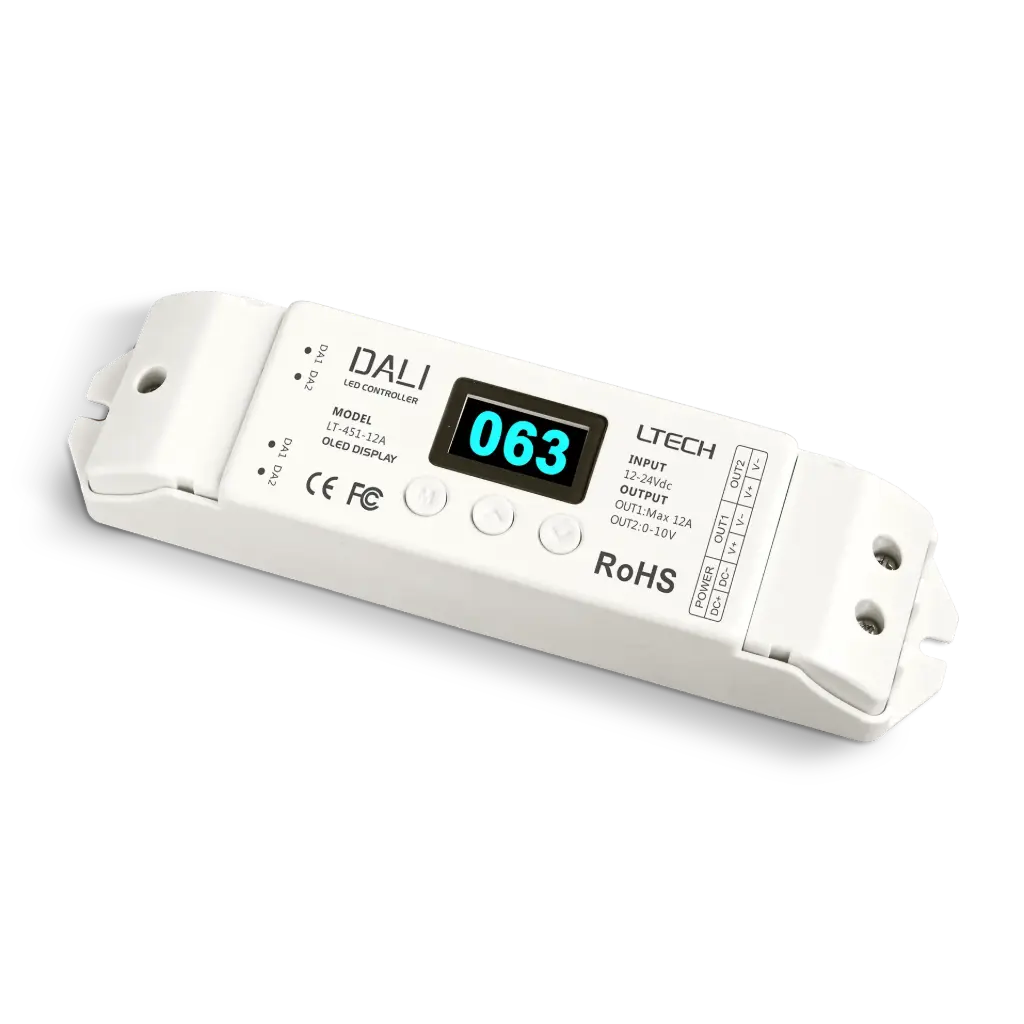

LT-451-12A
This indoor LED dimmer features PWM digital dimming with a standard DALI logarithmic curve and an OLED display for auto-assigned or manual addressing. It provides 0.1-100% dimming, up to 12A output, and 0-10V compatibility with DALI systems. The unit includes protection against short-circuit, overheat, no-load, and reverse connection, and supports two DALI signal sockets. Housed in durable protective plastic and compliant with IEC62386 standards, it operates on 12-24V DC and comes with a 5-year warranty.
• Input Voltage: 12~24V DC
• Output Current: 12A x 1CH 0-10V x 1CH
• Max. Output Power: 0-144W... 288W
• Dimming Range: 0-100%, LED start at 0.1% possible
• Working Temperature: -30°C~55°C
• Dimensions: L175 x W44 x H30 (mm)
• Weight: 150g
