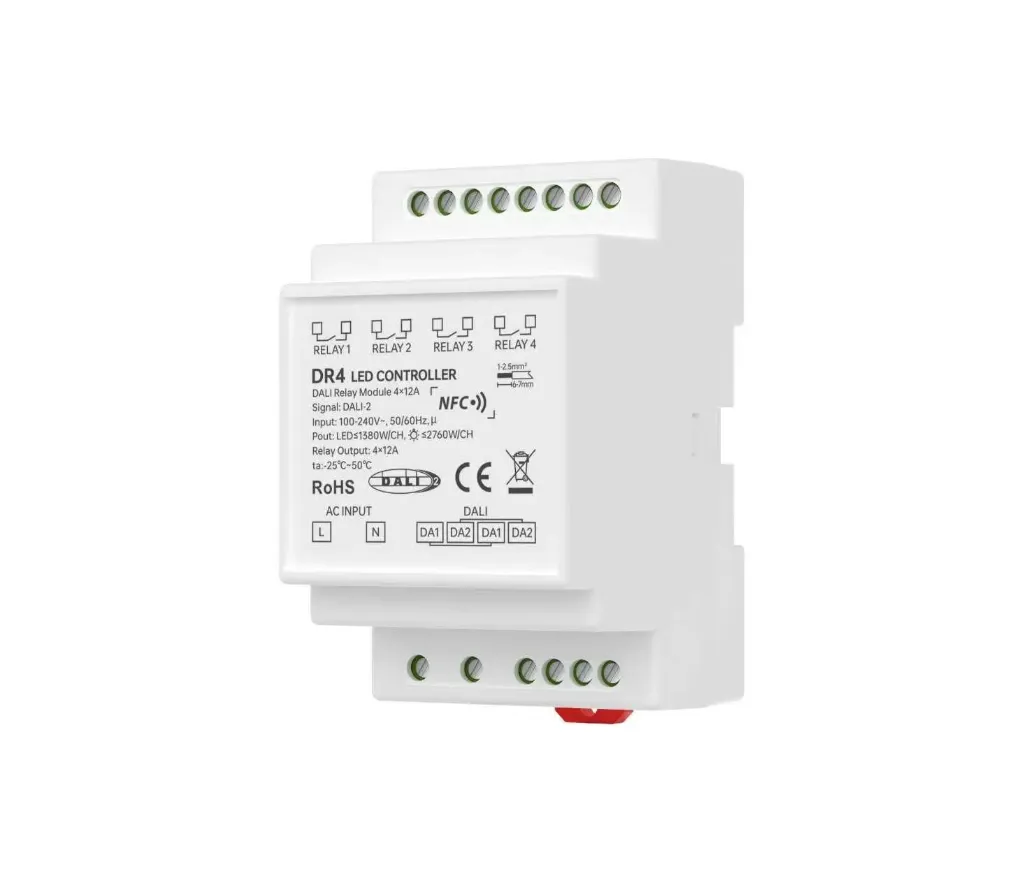

LTECH DALI Relay module - DR4

LTECH DALI Relay module

DR4

This DALI-2 certified relay unit complies with IEC62386-101, 102, and 208 standards. Connected to the DALI bus with a single address, it supports grouping and scene control with a DALI master. It switches LED lights on/off with a maximum of 12A per channel, operates over a wide supply voltage, and can be mounted on a DIN rail or with screws, making it ideal for project applications.

€ 38.49 € 38.49

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Add to cart
Control: DALI
Input Voltage: 100-240 V
Input Voltage Domain: AC
Output Voltage: 100-240 V
Output Power Range: 2200 W
Curent load max: 12A
Weight: 109g
Dimensions: L112xW35xH67(mm)
Package Size: L114×W37×H69(mm)
Working Temperature: -20°C-55°C
Documents
DR4.pdf
Specifications
Control DALI
Input Voltage 100-240 V
Input Voltage Domain AC
Output Voltage 100-240 V
Output Power Range 2200 W
Curent load max 12A
Weight 109g
Dimensions L112xW35xH67(mm)
Package Size L114×W37×H69(mm)
Working Temperature -20°C-55°C
Internal Reference 2264701
Barcode 6971379116644
HS Code 85371098
Downloads
DR4 Click to view Download

Internal Reference: 2264701
Barcode: 6971379116644
HS Code: 85371098
