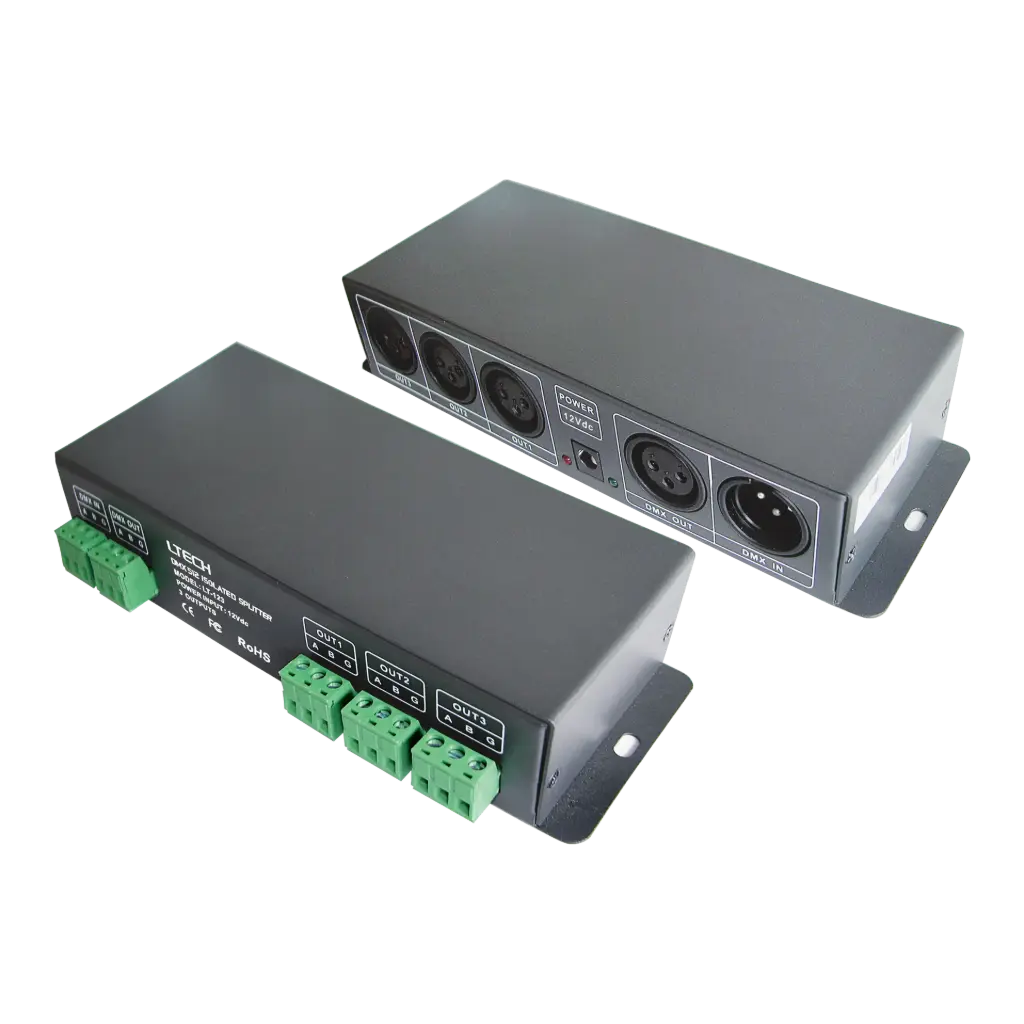

A DMX512 (RS-485) signal amplifier designed to boost, distribute, and insulate weakened signals for long-distance transmission. It features 1 input and 3 isolated outputs with >3KV photoelectric insulation to protect connected devices from wiring errors, high voltage, or interference. This ensures safe, reliable operation of lighting systems while extending signal transmission and supporting multi-channel control.
• Input Voltage: 12V DC (with an adapter to convert 100-240V AC to 12V DC)
• Input DMX Signal: 1CH DMX (485) Signal Input
• Output DMX Signal: 3CH DMX (485) Signal Output
DMX512 Socket: XLR-3, Green Terminal
• Working Temperature: -30°C~65°C
• Dimensions: L192 x W80 x H41 (mm)
• Weight: 620g
