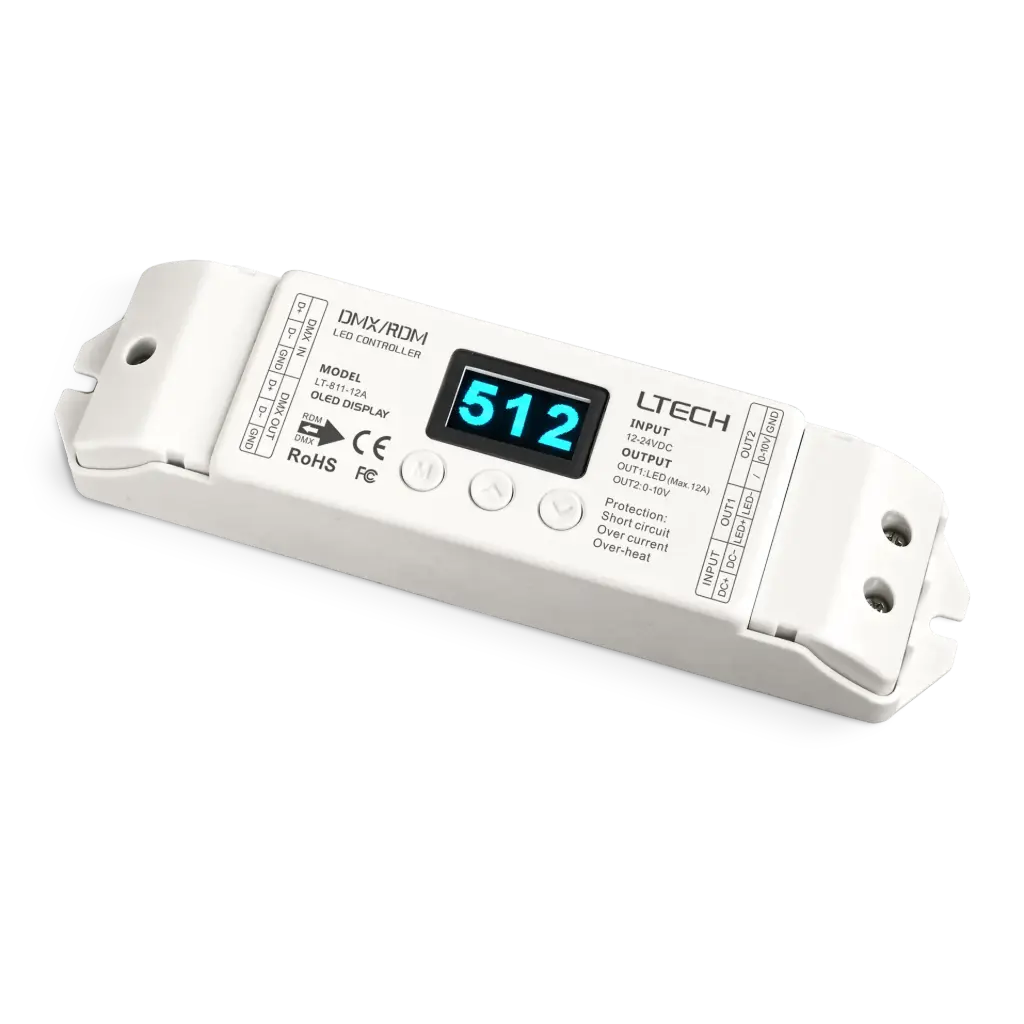

The LT-811-12A is an RDM-compatible DMX512 controller that supports bi-directional communication for remote reading and writing of DMX addresses. Designed for LED dimming, it delivers smooth lighting effects and works with any DMX dimmer brand. Key features include an OLED real-time display, 16- or 8-bit input, three dimming curves, up to 850 FPS frame rate, and built-in protection against lightning and ESD.
Input Signal: DMX512, RDM
• Input Voltage: 12-24V DC
• Output Current: 12A x 1CH + 0-10V x 1CH +10V PWM x 1CH
Max
• Output Power: 144W / 288W (12v / 24V)
• Working Temperature: -30°C~55°C
• Dimensions: L175 x W48 x H33 (mm)
• Weight: 160g
