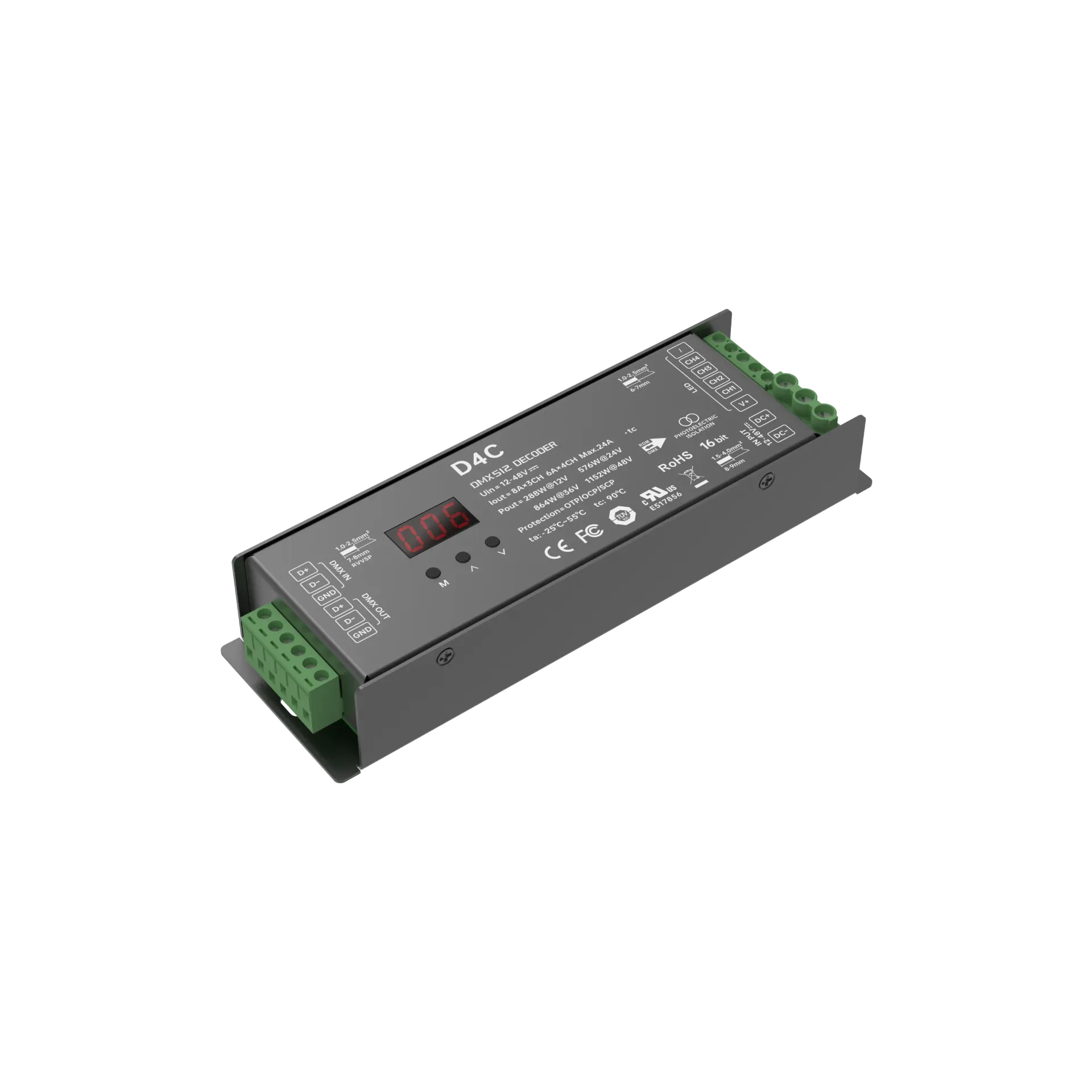

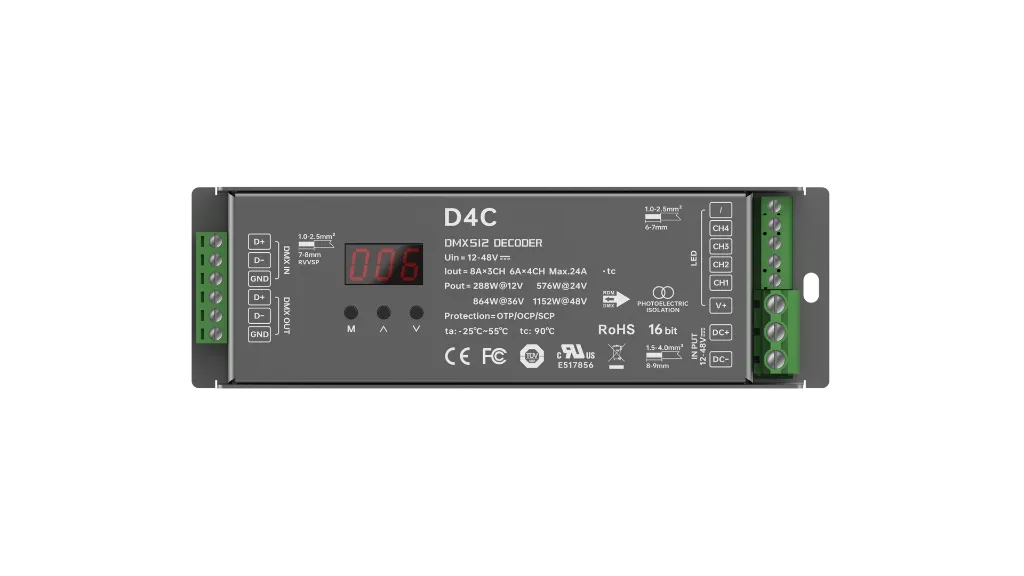

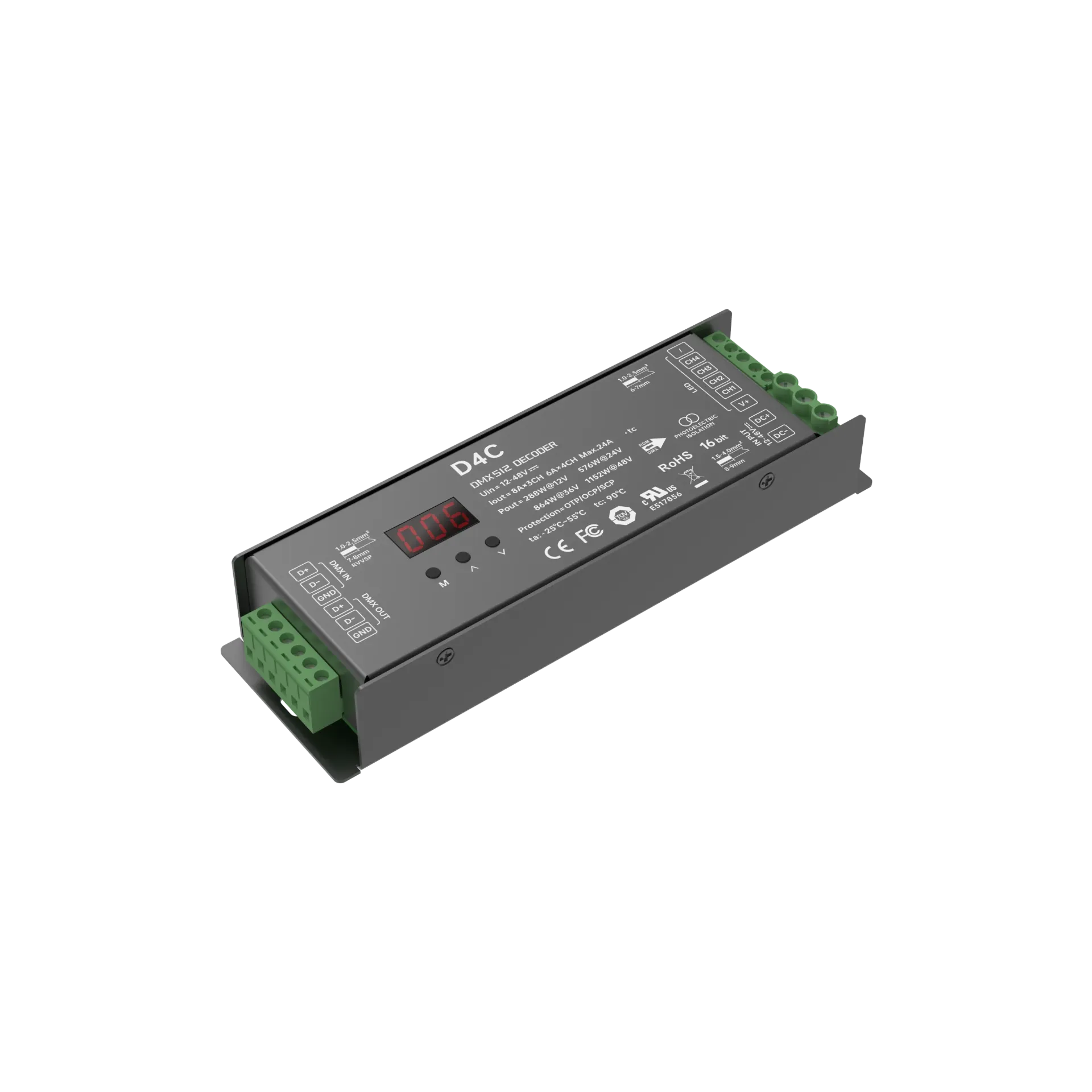

LTECH DMX LED driver CV 3x8A / 4x6A screw terminal

D4C

The LTECH D4C is a high-performance 4-channel DMX/RDM decoder designed for precise control of constant voltage LED lighting, including DIM, Color Temperature (CT), RGB, and RGBW modes.

Key Features:

  • Versatile Operation: Switch easily between DMX decoding and DMX master control modes to suit your project needs.
  • Flexible Configuration: Adjust settings via the built-in digital display and buttons, or remotely using an RDM master controller or mobile app.
  • High Precision Dimming: Supports 8-bit or 16-bit grayscale with optional linear or logarithmic dimming curves for smooth, flicker-free transitions.
  • Customizable PWM: Choose from multiple PWM frequency options, ranging from 300Hz up to 18000Hz.
  • Built-in Effects: Includes 10 preset lighting effects, 8 dynamic speed levels, and 255 brightness levels in control mode.
  • Safety & Reliability: Equipped with automatic recovery protection against short-circuits, over-temperature, over-current, and reverse polarity.
€ 32.01 € 32.01

  • Control
  • Channels
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Maximum Output Current
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
  • Maximum Current
Add to cart
Control: DMX
Channels: 3 , 4
Input Voltage: DC (12-48 V)
Input Voltage Domain: DC
Working Temperature: -25°C to 55°C
Output Voltage: 12-48 V
Output Power: 1152 W
Maximum Output Current: 6Ax4CH/8Ax3CH
Dimming Range: 0-100%
Weight (g): 365g
Dimensions (LxWxH) (mm): L175xW55xH30(mm)
Package Size: L188xW61xH40(mm)
Maximum Current: 24 A
Documents
D4C.pdf
Specifications
Control DMX
Channels 3 · 4
Input Voltage DC (12-48 V)
Input Voltage Domain DC
Working Temperature -25°C to 55°C
Output Voltage 12-48 V
Output Power 1152 W
Maximum Output Current 6Ax4CH/8Ax3CH
Dimming Range 0-100%
Weight (g) 365g
Dimensions (LxWxH) (mm) L175xW55xH30(mm)
Package Size L188xW61xH40(mm)
Maximum Current 24 A
Internal Reference 2285421
Barcode 6971379114466
HS Code 85044095
Downloads
D4C Click to view Download

Internal Reference: 2285421
Barcode: 6971379114466
HS Code: 85044095
