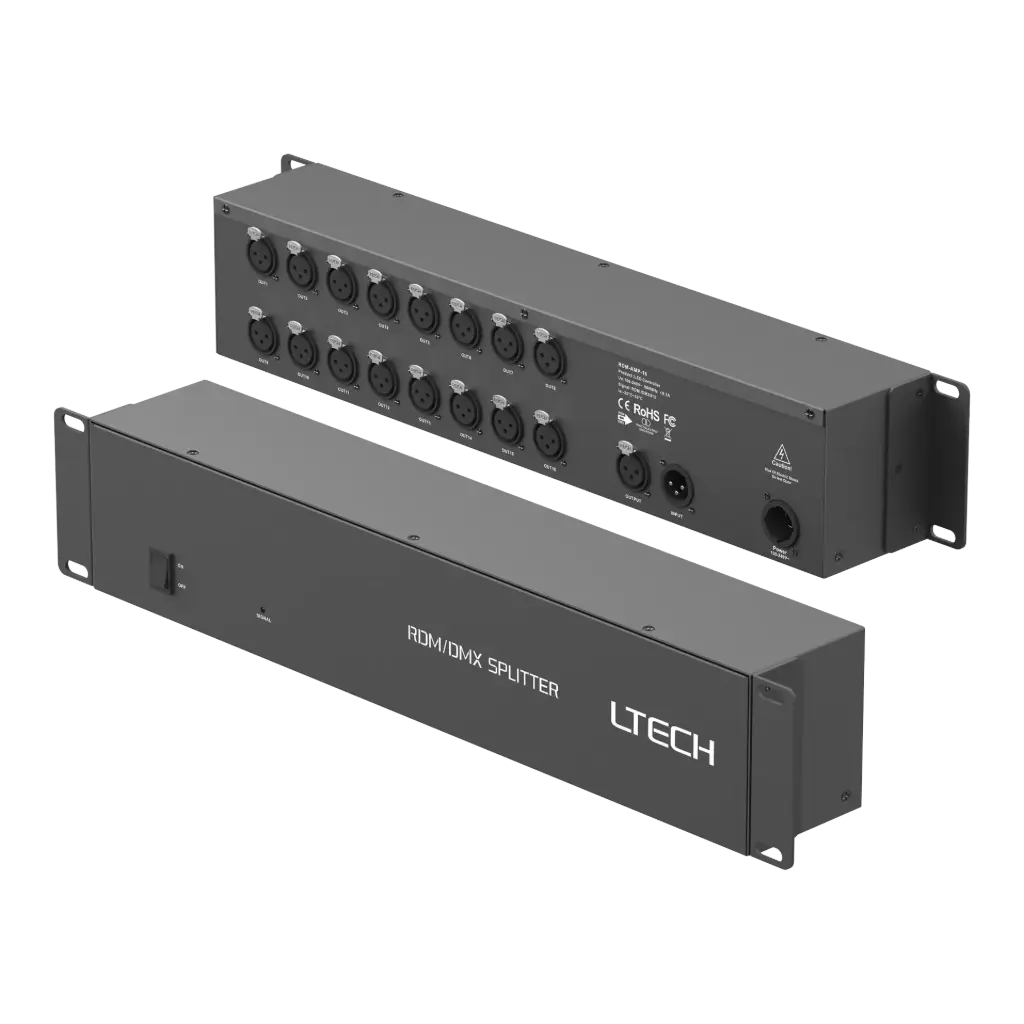

LTECH DMX/RDM 16CH Signal Amplifier 3-pin XLR
RDM-AMP-16
Rack-mount DMX/RDM signal amplifier designed for professional lighting control systems, featuring automatic DMX/RDM signal detection with 1 input and 16 isolated outputs to easily expand the number of connected devices. It amplifies and relays weak signals to extend transmission distance, with a BYPASS function for flexible system expansion. Independent photoelectric isolation between input and outputs enhances system safety and reliability, while Neutrik 3-pin and 5-pin XLR connectors ensure secure connections. Built in a standard 1U rack format, it is ideal for TV studios, stage lighting, and entertainment venues where stable, large-scale DMX distribution is required.
Specifications
Control
DMX
Channels
16
Input Voltage
AC (100-240 V)
Input Voltage Domain
AC
Working Temperature
-20°C to 55°C
Version
DMX/RDM
Weight (g)
1922g
Dimensions (LxWxH) (mm)
L486.5xW88xH85(mm)
Package Size
L525xW169xH127(mm)
Internal Reference
2320810
Barcode
6971379116330
HS Code
85371098
