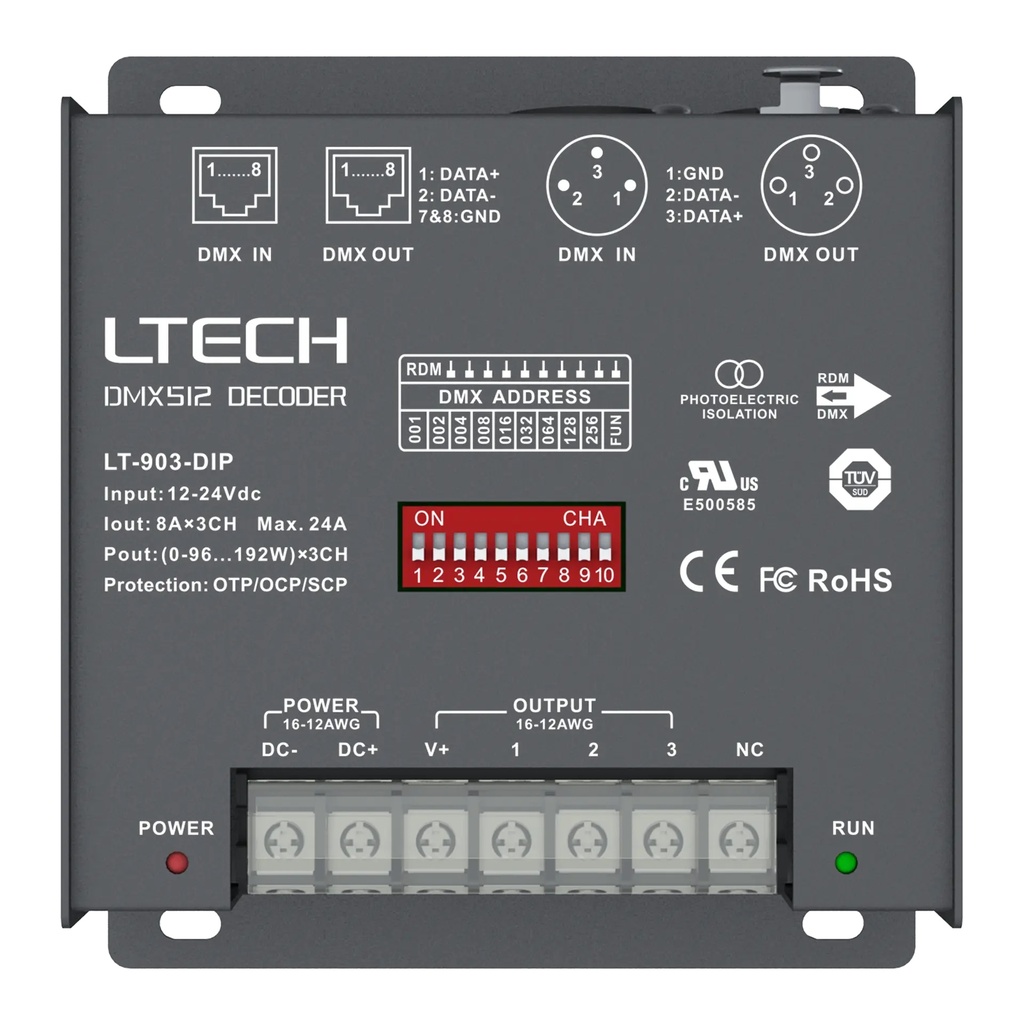

LTECH DMX/RDM LED driver CV 3x8A DIP Switch

LT-903-DIP

This 3-channel DMX/RDM decoder provides up to 8A per channel (576W total) and features 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for reliable signal transmission and reduced interference. It supports RDM remote management, enabling parameter browsing, DMX address setup, and equipment recognition via an RDM master console.

Input Voltage: 12-24Vdc
Current Load: 8A x 3CH Max. 24A
Photoelectric Isolation: Yes
Working Temperature: -30°C~65°C
Dimensions: L122 x W110 x H37 (mm)
Weight: 550g

€ 48.75

Add to cart

Control: DMX

Channels: 3

Input Voltage: 12-24 V

Input Voltage Domain: DC

Output Voltage: 12-24 V

Output Power Range: 576

Current load/ ch: 8A

Curent load max: 24A

Version: DMX/RDM

Certificates: UL

Weight: 550g

Dimensions: L122×W110×H37(mm)

Package Size: L127×W123×H41(mm)

Working Temperature: -30°C to 65°C

Documents

LT-903-DIP User Manual.pdf

Specifications

Control DMX

Channels 3

Input Voltage 12-24 V

Input Voltage Domain DC

Output Voltage 12-24 V

Output Power Range 576

Current load/ ch 8A

Curent load max 24A

Version DMX/RDM

Certificates UL

Weight 550g

Dimensions L122×W110×H37(mm)

Package Size L127×W123×H41(mm)

Working Temperature -30°C to 65°C

Internal Reference 2279121

Barcode 6971379116088

HS Code 85044095

Downloads

LT-903-DIP User Manual Click to view Download
