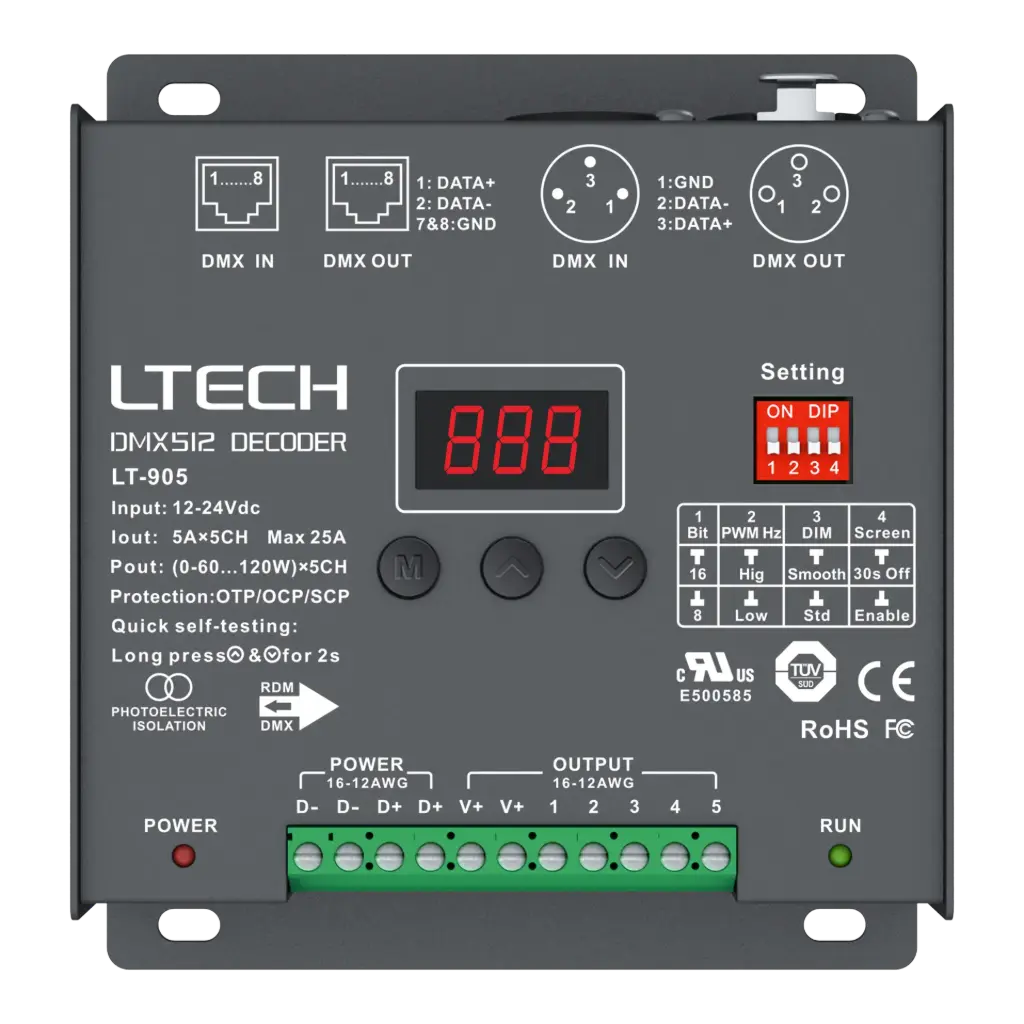

LTECH DMX/RDM LED driver CV 5x5A
LT-905
Features five output channels with up to 5A per channel and a total output power of 600W. It offers easy operation through a digital display with touch buttons and supports 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for stable, interference-resistant signal transmission. With RDM remote management, users can handle DMX address setup, parameter configuration, and device identification via an RDM master console. Additional features include firmware upgrade support, power-on state management, fast self-testing, selectable high or low PWM frequency, and 8-bit or 16-bit grayscale options. Built-in protection against short circuit, overcurrent, and overheating with fault warnings ensures reliable and safe operation.
- Input Voltage: 12~24Vdc
- Current Load: 5A x 5CH Max. 25A
- Photoelectric Isolation: Yes
- Working Temperature: -30°C~65°C
- Dimensions: L122 x W110 x H37 (mm)
- Weight: 550g
Specifications
Control
DMX
Channels
5
Input Voltage
DC (12-24 V)
Input Voltage Domain
DC
Working Temperature
-30°C to 65°C
Output Voltage
12-24 V
Output Power
600 W
Current load/ ch
5A
Curent load max
25A
Version
DMX/RDM
Certificates
UL
Weight (g)
550g
Dimensions (LxWxH) (mm)
L122×W110×H37(mm)
Package Size
L127×W123×H41(mm)
Internal Reference
2279010
Barcode
6971379111090
HS Code
85044095
