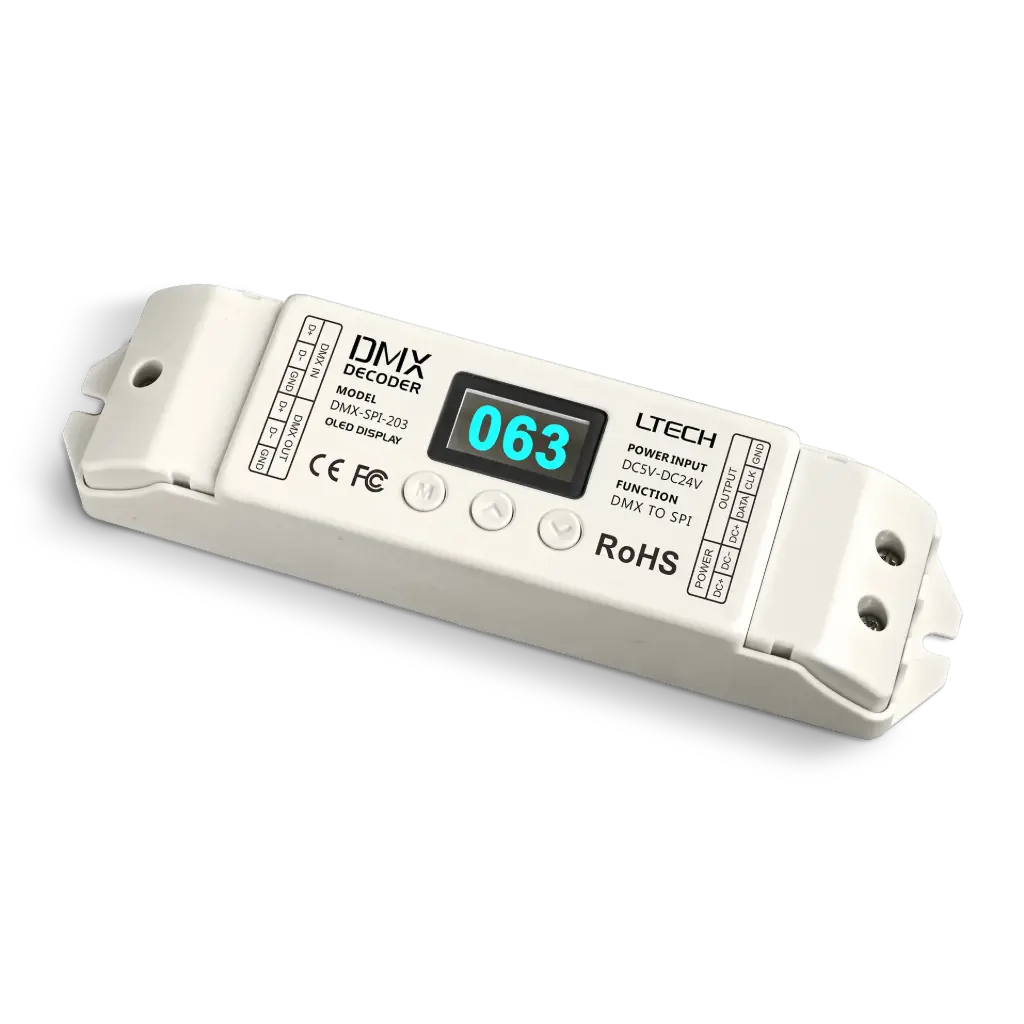

The DMX-SPI-203 controls LEDs with a wide range of compatible ICs, including WS2811/2812, TM1803/1804/1809, LPD6803/8803/8806, UCS series, and more. It supports the DMX512/1990 standard protocol and offers DMX administration mode for selecting mode, speed, brightness, type, and direction via a DMX console. In DMX decode mode, every LED channel can be programmed and controlled, with 0-100% dimming and fully customizable lighting effects.
• Input Voltage: 5~24V DC
• Power Consumption: 1W
• Output Signal: SPI(TTL)
• Working Temperature: -30°C~55°C
• Dimensions: L175 × W44 × H30 (mm)
• Weight: 130g
