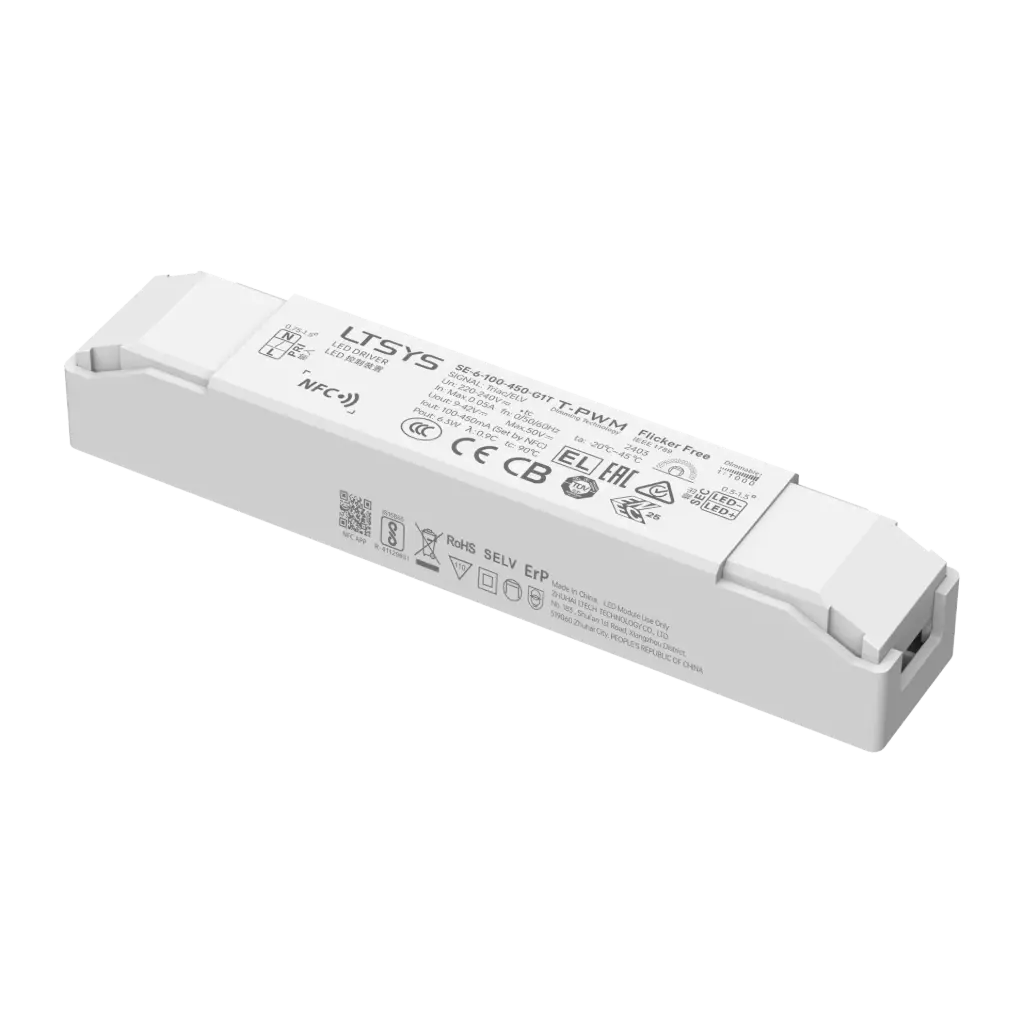

LTECH LTSYS Driver CC TRIAC 1CH 100-450mA 6W

SE-6-100-450-G1T

Intelligent LED Driver (Constant Current)
Ultra-small, thin, and lightweight with a screwless end cap. Features adjustable output current in 1 mA steps, soft-on and fade-in dimming, and T-PWM super deep flicker-free dimming down to 0.01%. Includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor fixtures, 100,000 h lifespan. Output current, minimum brightness, and current transition time can be adjusted via the mobile app.

€ 16.69 € 16.69

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power Range
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: TRIAC
Channels: 1
Input Voltage: 220-240 V
Input Voltage Domain: AC
IP Rating: IP20
Output Current: 100-450mA
Output Voltage: 9-42 V
Output Power Range: 6 W
Certificates: CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control TRIAC
Channels 1
Input Voltage 220-240 V
Input Voltage Domain AC
IP Rating IP20
Output Current 100-450mA
Output Voltage 9-42 V
Output Power Range 6 W
Certificates CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2846511
Barcode 6971379114398
HS Code 85044095
Downloads
SE-6-100-450-G1T User manual Click to view Download

Internal Reference: 2846511
Barcode: 6971379114398
HS Code: 85044095
