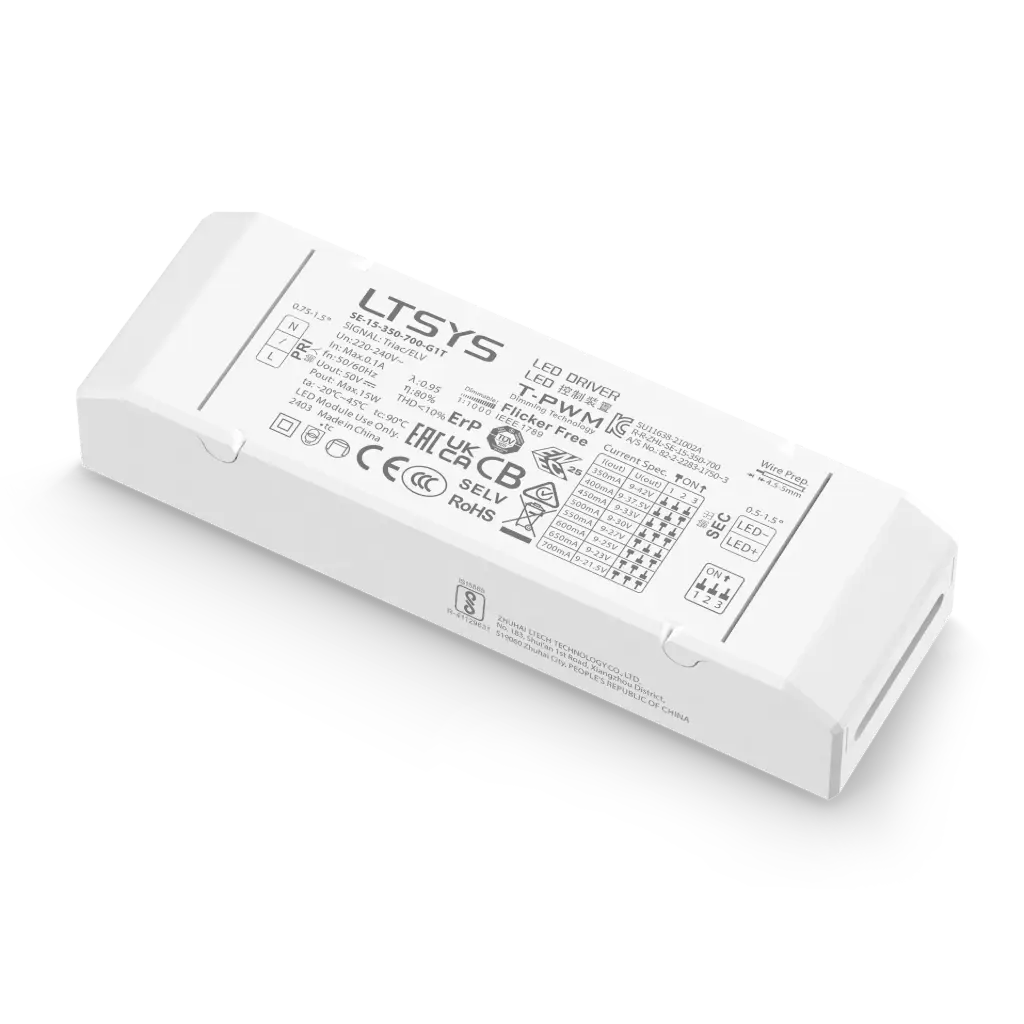

LTECH LTSYS Driver CC TRIAC 1CH 350-700mA 15W
SE-15-350-700-G1T
Intelligent LED Driver
This compact Class 2 LED driver features a V0 flame-retardant polycarbonate housing from Samsung/Covestro, combining lightweight design with high safety and durability. The screwless clamshell construction provides reliable strain relief and meets IEC60598-1 tensile standards, while soft-on and fade-in dimming enhance visual comfort. Advanced T-PWM technology delivers smooth, flicker-free dimming even under high-speed filming. Designed with wide voltage and multi-current support, intelligent thermal management, and full protections against overvoltage, overload, and short circuit, it is ideal for Class I, II, and III indoor lighting applications. The driver complies with SELV requirements, offers a 50,000-hour lifespan.
Specifications
Control
TRIAC
Channels
1
Input Voltage
220-240 V
Input Voltage Domain
AC
Output Current
350-700mA
Output Voltage
9-42 V
Output Power Range
15 W
Certificates
CCC
·
TUV
·
CE
·
KC
·
RCM
·
ENEC
·
CB
·
EAC
·
UKCA
·
BIS
·
ERP
·
RoHS
Dimming Range
0-100% down to 0.01%
Warranty
5 Years
Internal Reference
2845500
Barcode
6971379111809
HS Code
85044095
