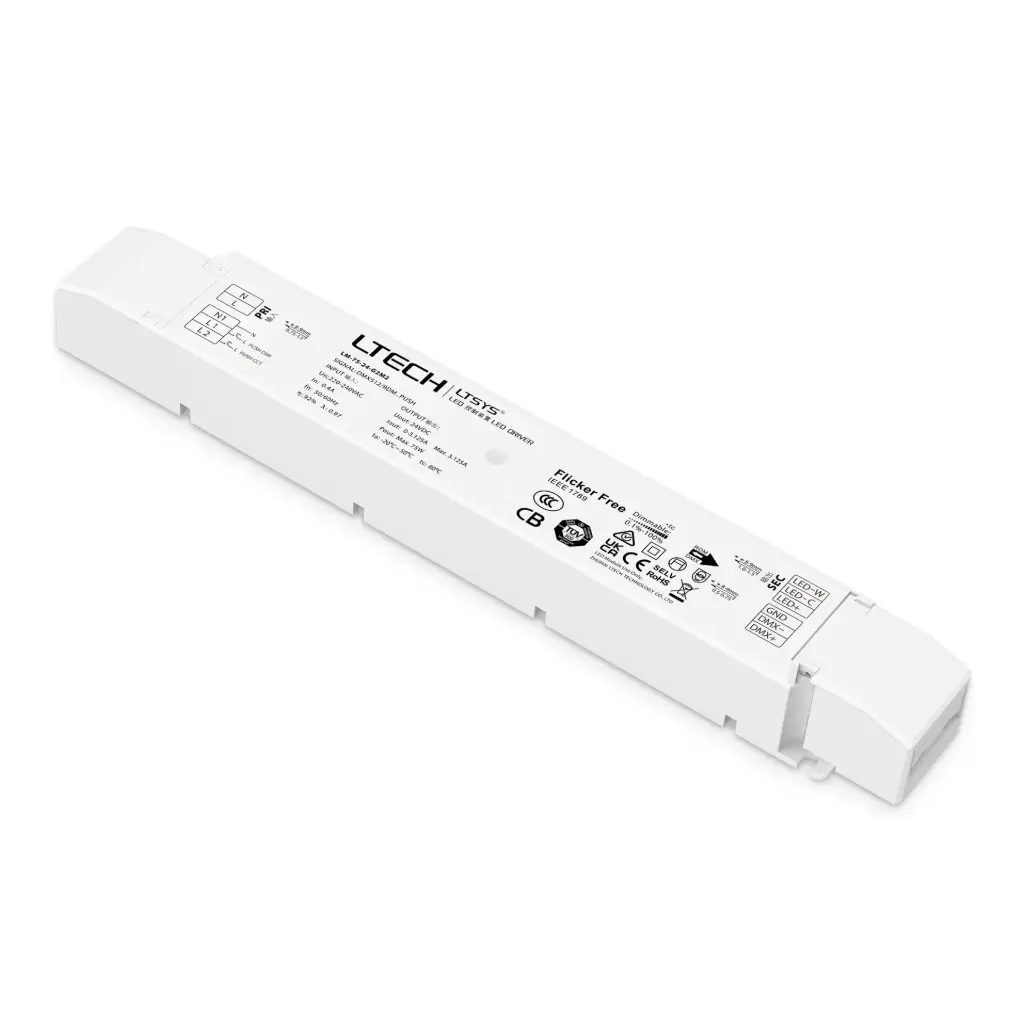

LTECH LTSYS Driver CV DMX 2CH 24V 75W
LM-75-24-G2M2
LED Intelligent CT Driver (Constant Voltage)
The LED Intelligent CT Driver (constant voltage) features DMX512/RDM and Push DIM/CCT interfaces with 2-channel SELV output and constant power design to maintain brightness across color temperatures from 2700K to 6500K. It supports RDM remote management, smooth 0-100% dimming down to 0.1%, and soft-on fade-in for visual comfort. With protections against overheat, overload, overvoltage, and short circuit plus automatic recovery, it ensures reliable performance. Designed with a fully protected housing and low standby power (<0.5W), it is ideal for indoor ClassⅠ/Ⅱ/Ⅲ lamp applications. 5-year warranty (Rubycon capacitor).
- Input Voltage: 220-240Vac
- Output Voltage: 24Vdc
- Output Current: Max. 3.125A
- Output Power: Max. 75W
- Output Power Range: 0~75W
- Working Temperature: ta: -20~50°C tc:80°C
- Dimensions: L293 x W43 x H30 (mm)
- Weight (G.W): 300g
Specifications
Control
DMX
Channels
2
Input Voltage
220-240 V
Input Voltage Domain
AC
Output Voltage
24 V
Output Power Range
75 W
Current load/ ch
1.56A
Curent load max
3.125A
Internal Reference
2812501
HS Code
85044095
