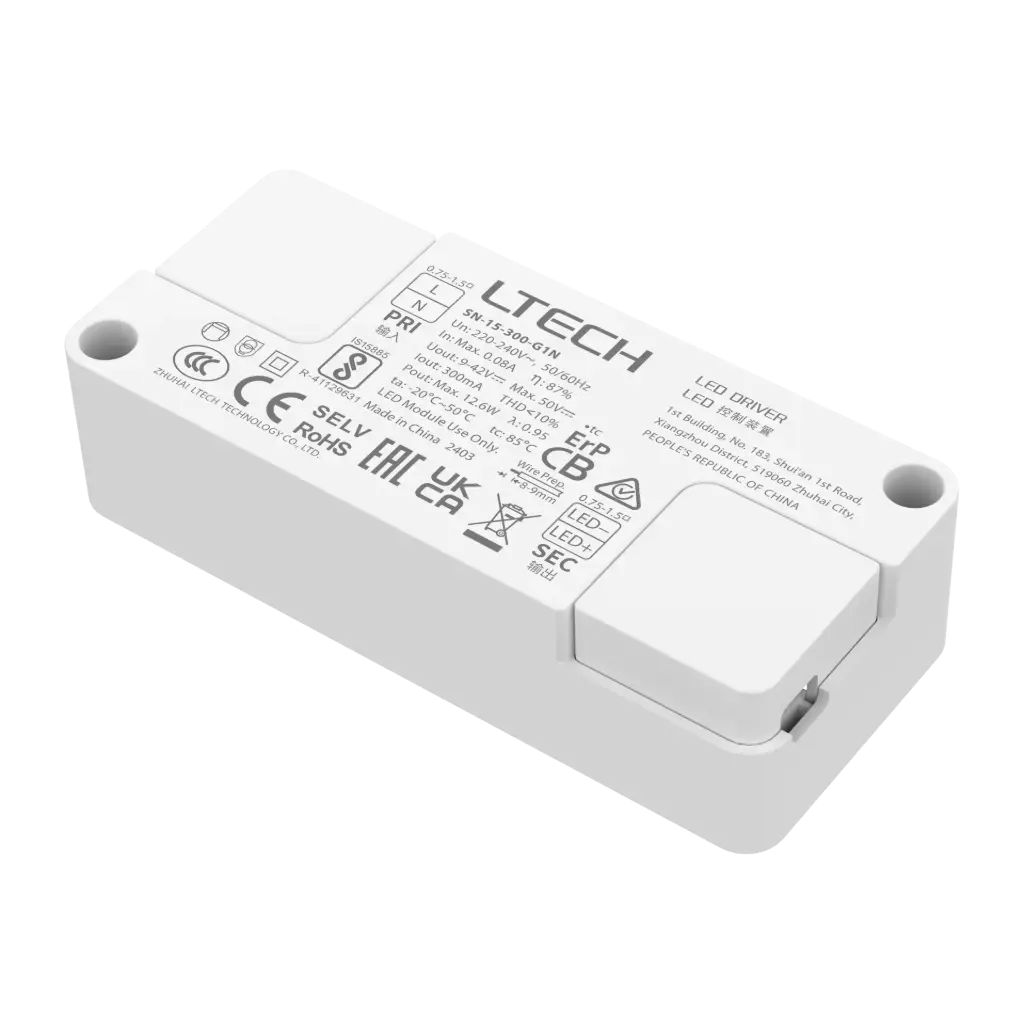

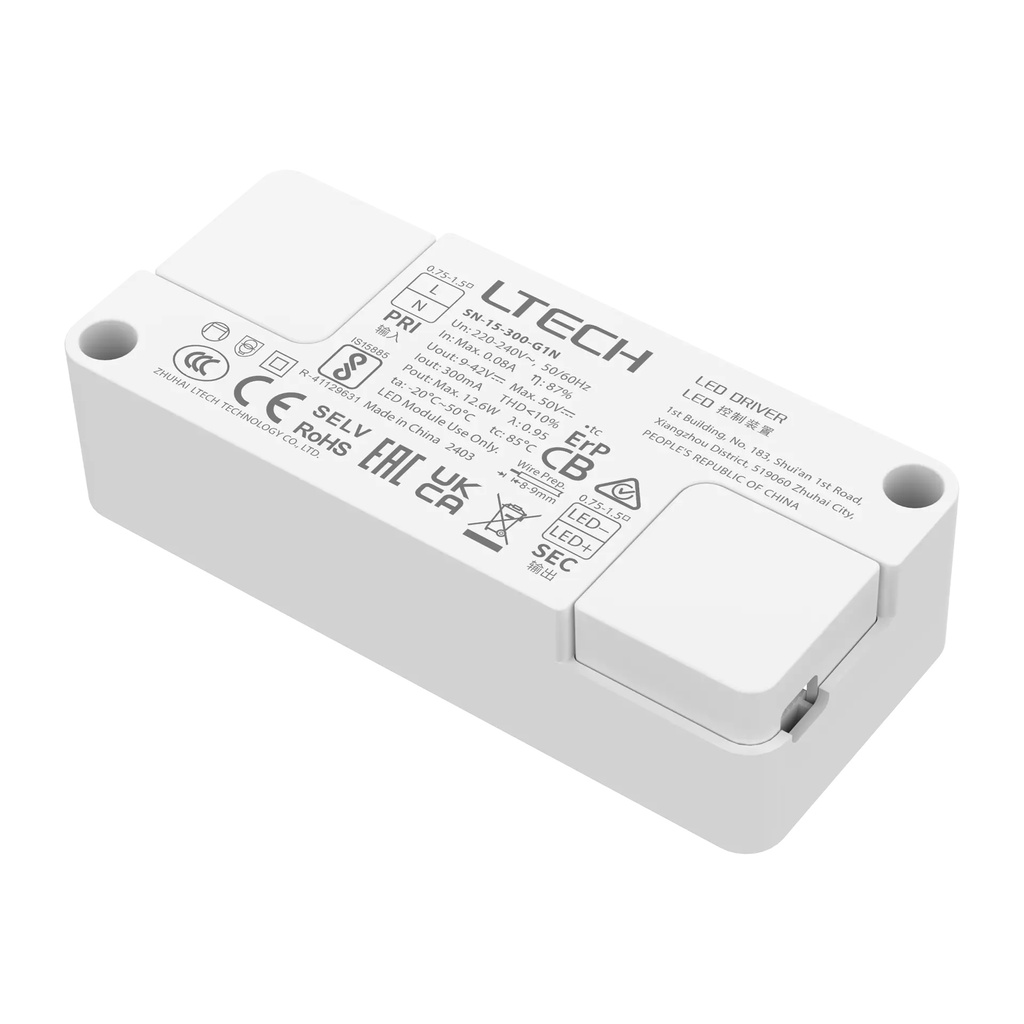

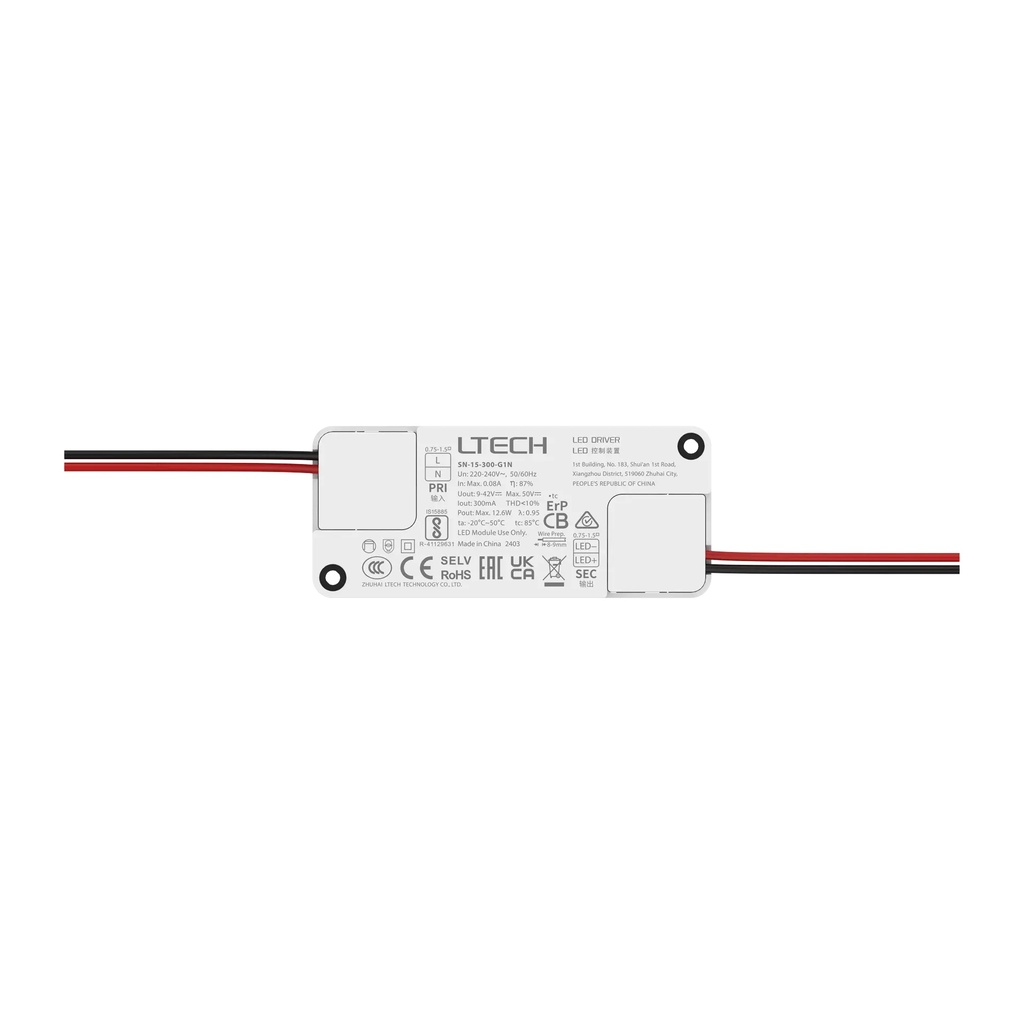

LTECH LTSYS Driver On/Off CC 300mA 13W

SN-15-300-G1N

LED Driver (Constant Current)
Constant current LED driver with V0 flame-retardant PC housing and an ultra-small, thin, screwless end cap. Offers high performance, high efficiency, and low THD. Features intelligent thermal management and protections against overheat, overvoltage, overload, and short circuits with automatic recovery. Suitable for Class I/II/III indoor fixtures, including office, decorative, and commercial lighting. Backed by a 5-year warranty.

  • Input Voltage: 220-240Vac / 200-280Vdc
  • Input Current: ≤0.08A
  • Output Voltage: 9-42Vdc
  • Output Current: 350mA
  • Output Power Range: 2.7W-12.6W
  • Working Temperature: ta: -20~50°C tc: 85°C
  • Dimensions: 88×38×22mm
  • Weight (N.W.): 55g±10g

€ 11.42 € 11.42

  • Input Voltage
  • Input Voltage
  • Input Voltage Domain
  • Input Voltage Domain
  • Working Temperature
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power
  • Weight (g)
  • Dimensions (LxWxH) (mm)
Input Voltage: AC (220-240 V) , DC (200-280 V)
Input Voltage Domain: AC , DC
Working Temperature: -25°C to 50°C
IP Rating: IP20
Output Current: 300mA
Output Voltage: 9-42 V
Output Power: 12.6 W
Weight (g): 55g
Dimensions (LxWxH) (mm): L88xW38xH22(mm)
Specifications
Input Voltage AC (220-240 V) · DC (200-280 V)
Input Voltage Domain AC · DC
Working Temperature -25°C to 50°C
IP Rating IP20
Output Current 300mA
Output Voltage 9-42 V
Output Power 12.6 W
Weight (g) 55g
Dimensions (LxWxH) (mm) L88xW38xH22(mm)
Internal Reference 2510211
Barcode 6971379116491
HS Code 85044095
Downloads
SN-15-300-G1N User Manual Click to view Download

Internal Reference: 2510211
Barcode: 6971379116491
HS Code: 85044095
